BACK DOOR OUTSIDE GARNISH(for Hatchback) REMOVAL

PROCEDURE


  1. REMOVE REAR LIGHT ASSEMBLY LH

    Click here

  2. REMOVE REAR LIGHT ASSEMBLY RH

    Tech Tips

    Use the same procedure as for the LH side.

  3. REMOVE BACK DOOR OPENER SWITCH ASSEMBLY

    Click here

  4. REMOVE BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY

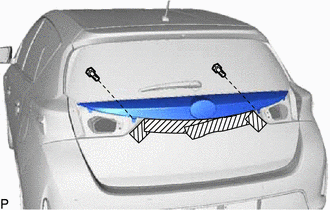

    1. A01KRNSC01
      A01KSBW Protective Tape

      Remove the 2 bolts.

    2. Put protective tape around the back door outside garnish sub-assembly.

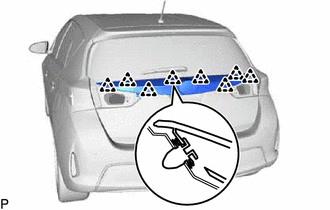

    3. A01KTLI

      Disengage the 8 clips and remove the back door outside garnish sub-assembly.

    4. Remove the 8 clips from the back door outside garnish sub-assembly.

  5. REMOVE NO. 1 BACK DOOR EMBLEM

    Click here

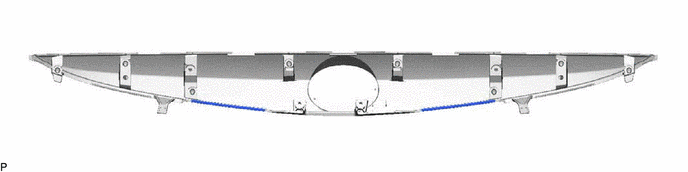

  6. REMOVE NO. 1 BACK DOOR OUTSIDE GARNISH PROTECTOR


    1. Remove the 2 No. 1 back door outside garnish protectors.

      A01KTJV

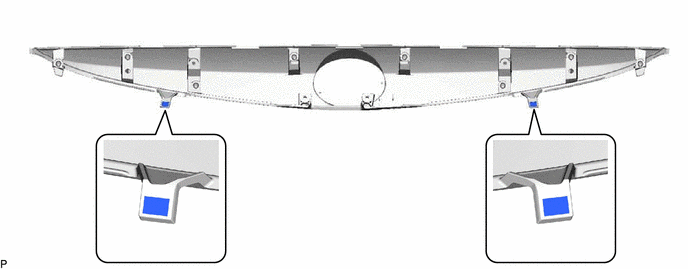

  7. REMOVE NO. 2 BACK DOOR OUTSIDE GARNISH PROTECTOR


    1. Remove the 2 No. 2 back door outside garnish protectors.

      A01KRT6

  8. REMOVE BACK DOOR OUTSIDE GARNISH PROTECTOR

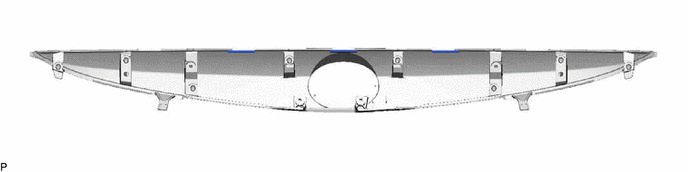

    1. Type A:


      1. Remove the 3 back door outside garnish protectors.

        A01KT8D

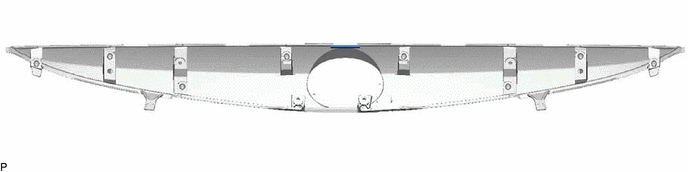

    2. Type B:


      1. Remove the back door outside garnish protector.

        A01KSI8
