ROOF HEADLINING(for Wagon) INSTALLATION

PROCEDURE


  1. INSTALL ROOF HEADLINING ASSEMBLY (for Standard Roof)


    1. A003202

      Pull the roof headlining assembly into the vehicle through the back door as shown in the illustration.

      Note

      Do not damage the roof headlining assembly or vehicle interior.

    2. A00326U

      Engage the 2 claws.

      Tech Tips

      Use the same procedure for the RH side and LH side.

    3. Push in the visor holder as shown in the illustration.

      Tech Tips

      Use the same procedure for the RH side and LH side.

    4. Install the roof headlining assembly with the 5 clips.

    5. for LHD Front Pillar LH Side:


      1. Engage the 6 clamps.

      2. Connect the connector.

    6. for RHD Front Pillar LH Side:


      1. Engage the 5 clamps.

      2. Connect the connector.

    7. for Front Pillar RH Side:


      1. Engage the 3 clamps.

      2. Connect the connector.

    8. for Rear Pillar RH Side:


      1. Connect the connector.

      2. Engage the guide.

      3. Connect the connector bracket with the bolt.

        Torque:
        7.0 N*m  { 71 kgf*cm, 62 in.*lbf }

    9. w/ EC Mirror:


      1. Connect the connector.

    10. w/ Rain Sensor:


      1. Connect the connector.

    11. w/ Pre-crash Safety System:


      1. Connect each connector.

  2. INSTALL ROOF HEADLINING ASSEMBLY (for Glass Roof)


    1. A00324R

      Pull the roof headlining assembly into the vehicle through the back door as shown in the illustration.

      Note

      Do not damage the roof headlining assembly or vehicle interior.

    2. Engage the guide.

    3. A00326U

      Engage the 2 claws.

      Tech Tips

      Use the same procedure for the RH side and LH side.

    4. Push in the visor holder as shown in the illustration.

      Tech Tips

      Use the same procedure for the RH side and LH side.

    5. Engage the 14 fasteners.

      Tech Tips

      Engage the fasteners from the front side of the roof headlining assembly.

    6. Install the roof headlining assembly with the 3 clips.

    7. for LHD Front Pillar LH Side:


      1. Engage the 6 clamps.

      2. Connect the connector.

    8. for RHD Front Pillar LH Side:


      1. Engage the 5 clamps.

      2. Connect the connector.

    9. for Front Pillar RH Side:


      1. Engage the 3 clamps.

      2. Connect the connector.

    10. for Rear pillar LH Side:


      1. Connect the connector.

    11. for Rear Pillar RH Side:


      1. Connect the connector.

      2. Engage the guide.

      3. Connect the connector bracket with the bolt.

        Torque:
        7.0 N*m  { 71 kgf*cm, 62 in.*lbf }

    12. w/ EC Mirror:


      1. Connect the connector.

    13. w/ Rain Sensor:


      1. Connect the connector.

    14. w/ Pre-crash Safety System:


      1. Connect each connector.

  3. INSTALL REAR ROOM PARTITION NET HOOK LH

    Tech Tips

    Use the same procedure for the front side and rear side.


    1. Engage the guide and claw.

    2. Install the rear room partition net hook LH with the screw.

    3. Close the cover.

  4. INSTALL REAR ROOM PARTITION NET HOOK RH

    Tech Tips

    Use the same procedure as for the LH side.

  5. INSTALL VISOR ASSEMBLY LH

    Click here

  6. INSTALL VISOR ASSEMBLY RH

    Tech Tips

    Use the same procedure as for the LH side.

  7. INSTALL ASSIST GRIP ASSEMBLY

    Click here

  8. INSTALL REAR ASSIST GRIP ASSEMBLY LH

    Click here

  9. INSTALL REAR ASSIST GRIP ASSEMBLY RH

    Tech Tips

    Use the same procedure as for the LH side.

  10. INSTALL NO. 1 ROOM LIGHT ASSEMBLY (for Slide Switch Type)

    Click here

  11. INSTALL MAP LIGHT ASSEMBLY

    Click here

  12. INSTALL PRE-CRASH SAFETY CITY COVER (w/ Pre-crash Safety System)

    Click here

  13. INSTALL PRE-CRASH SAFETY CITY COVER 2ND (w/ Pre-crash Safety System)

    Click here

  14. INSTALL RAIN SENSOR COVER (w/ Rain Sensor)

    Click here

  15. INSTALL INNER REAR VIEW MIRROR STAY HOLDER COVER (w/ EC Mirror)

    Click here

  16. INSTALL UPPER INSTRUMENT PANEL

    Click here

  17. INSTALL ROOF SIDE INNER GARNISH ASSEMBLY LH


    1. Install a new clip (A) to the roof side inner garnish assembly LH.

      A00325BN01

    2. Engage the 2 claws and 4 clips.

    3. Install the roof side inner garnish assembly LH with the 2 screws.

  18. INSTALL DECK TRIM SIDE PANEL ASSEMBLY LH


    1. Engage the clamp.

    2. Connect each connector.

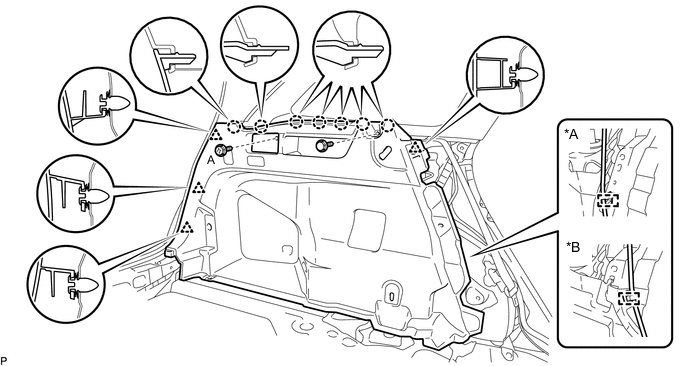

    3. Engage the 7 claws and 4 clips, and install the deck trim side panel assembly LH with the 2 bolts.

      A003243C02
      *A w/o Deck Board *B w/ Deck Board
      Torque:
      Bolt (A)
      11 N*m  { 112 kgf*cm, 8 ft.*lbf }

    4. w/ Deck Board:


      1. Engage the 2 clips.

      2. Install the deck side trim box LH with the clip.

    5. Engage the guide.

    6. Install the luggage hold belt striker assembly with the bolt.

  19. INSTALL RECLINING REMOTE CONTROL BEZEL LH


    1. A003264

      Engage the 3 claws to install the reclining remote control bezel LH.

  20. INSTALL NO. 2 DECK SIDE TRIM HOOK (for LH Side)


    1. Engage the pin.

    2. Install the No. 2 deck side trim hook with the screw.

  21. INSTALL REAR SEAT SIDE GARNISH LH

    Click here

  22. INSTALL REAR SEATBACK HINGE SUB-ASSEMBLY LH


    1. Engage the guide.

    2. Install the rear seatback hinge sub-assembly LH with the bolt.

      Torque:
      18 N*m  { 184 kgf*cm, 13 ft.*lbf }

  23. INSTALL ROOF SIDE INNER GARNISH ASSEMBLY RH

    Tech Tips

    Use the same procedure as for the LH side.

  24. INSTALL DECK TRIM SIDE PANEL ASSEMBLY RH

    Tech Tips

    Use the same procedure as for the LH side.

  25. INSTALL RECLINING REMOTE CONTROL BEZEL RH

    Tech Tips

    Use the same procedure as for the LH side.

  26. INSTALL NO. 2 DECK SIDE TRIM HOOK (for RH Side)

    Tech Tips

    Use the same procedure as for the LH side.

  27. INSTALL REAR SEAT SIDE GARNISH RH

    Tech Tips

    Use the same procedure as for the LH side.

  28. INSTALL REAR SEATBACK HINGE SUB-ASSEMBLY RH

    Tech Tips

    Use the same procedure as for the LH side.

  29. INSTALL CENTER PILLAR GARNISH ASSEMBLY LH

    Click here

  30. INSTALL CENTER PILLAR LOWER GARNISH LH

    Click here

  31. CONNECT FRONT SEAT OUTER BELT ASSEMBLY LH

    Click here

  32. INSTALL LAP BELT OUTER ANCHOR COVER (for LH Side)

    Click here

  33. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP LH


    1. A003203C01
      *a Alignment Mark (Light Blue)
      *b Flange Position

      Align the alignment mark (light blue) on the weatherstrip with the flange on the vehicle body indicated by the arrow in the illustration, and install the rear door opening trim weatherstrip LH.

      Note

      After installation, check that the corners fit correctly.

  34. INSTALL REAR UNDER SIDE COVER LH

    Click here

  35. INSTALL REAR DOOR SCUFF PLATE LH

    Click here

  36. INSTALL FRONT PILLAR GARNISH LH

    Click here

  37. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH

    Click here

  38. INSTALL COWL SIDE TRIM BOARD LH

    Click here

  39. INSTALL FRONT DOOR SCUFF PLATE LH

    Click here

  40. INSTALL CENTER PILLAR GARNISH ASSEMBLY RH

    Tech Tips

    Use the same procedure as for the LH side.

  41. INSTALL CENTER PILLAR LOWER GARNISH RH

    Tech Tips

    Use the same procedure as for the LH side.

  42. CONNECT FRONT SEAT OUTER BELT ASSEMBLY RH

    Tech Tips

    Use the same procedure as for the LH side.

  43. INSTALL LAP BELT OUTER ANCHOR COVER (for RH Side)

    Tech Tips

    Use the same procedure as for the LH side.

  44. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP RH


    1. A00329FC01
      *a Alignment Mark (White)
      *b Flange Position

      Align the alignment mark (white) on the weatherstrip with the flange on the vehicle body indicated by the arrow in the illustration, and install the rear door opening trim weatherstrip RH.

      Note

      After installation, check that the corners fit correctly.

  45. INSTALL REAR UNDER SIDE COVER RH

    Tech Tips

    Use the same procedure as for the LH side.

  46. INSTALL REAR DOOR SCUFF PLATE RH

    Tech Tips

    Use the same procedure as for the LH side.

  47. INSTALL FRONT PILLAR GARNISH RH

    Tech Tips

    Use the same procedure as for the LH side.

  48. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH

    Click here

  49. INSTALL COWL SIDE TRIM BOARD RH

    Tech Tips

    Use the same procedure as for the LH side.

  50. INSTALL FRONT DOOR SCUFF PLATE RH

    Tech Tips

    Use the same procedure as for the LH side.

  51. INSTALL REAR SEAT ASSEMBLY

    Click here

  52. INSTALL REAR DECK TRIM COVER


    1. Engage the 2 guides and 4 clips to install the rear deck trim cover.

    2. Engage the 2 guides.

    3. Install the 2 luggage hold belt striker assemblies with the 2 bolts.

  53. INSTALL ROOM PARTITION NET ASSEMBLY (w/ Partition Net)


    1. Install the room partition net assembly.

  54. INSTALL TONNEAU COVER ASSEMBLY


    1. Install the tonneau cover assembly.

  55. INSTALL DECK FLOOR BOX LH (w/o Woofer)


    1. Engage the 2 guides to install the deck floor box LH.

  56. INSTALL NO. 3 DECK BOARD SUB-ASSEMBLY (w/ Deck Board)


    1. Install the No. 3 deck board sub-assembly.

  57. INSTALL REAR FLOOR MAT ASSEMBLY


    1. Install the rear floor mat assembly.

  58. INSTALL BATTERY BOX COVER


    1. A00321RN01

      Engage the 4 guides to install the battery box cover as indicated by the arrows, in the order shown in the illustration.

  59. INSTALL FRONT DECK FLOOR BOX (w/ Deck Board)


    1. Install the front deck floor box.

  60. INSTALL DECK BOARD ASSEMBLY (w/ Deck Board)


    1. Install the deck board assembly.

  61. INSTALL DECK BOARD SUB-ASSEMBLY (w/ Deck Board)


    1. Install the deck board sub-assembly.
