ROOF HEADLINING(for Wagon) REASSEMBLY

PROCEDURE


  1. INSTALL NO. 1 ROOF WIRE (for Standard Roof)


    1. Align the positioning tape on the front part of the No. 1 roof wire with the front tab of the roof headlining.

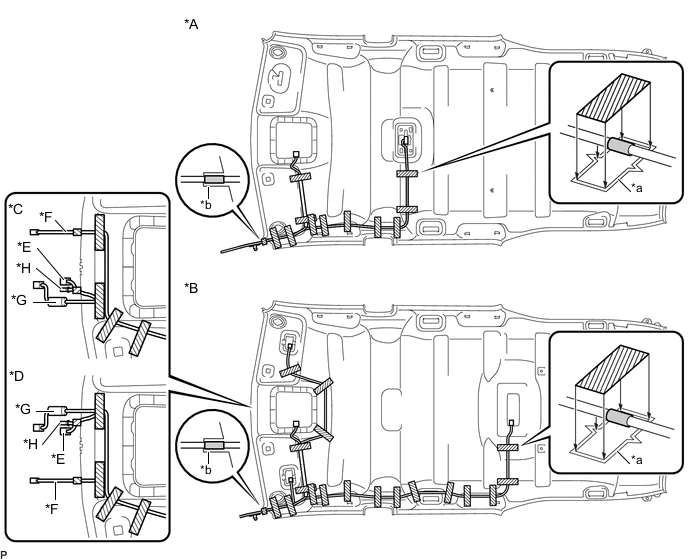

      A0031YMC01
      *A w/o Vanity Light *B w/ Vanity Light
      *C for LHD *D for RHD
      *E w/ EC Mirror *F w/ Rain Sensor
      *G w/ Pre-crash Safety System *H w/ Pre-Crash Safety City Heater
      *a Marking *b Front Tab
      A00324N Positioning Tape A00326E Adhesive Tape

    2. Align the positioning tape on the No. 1 roof wire with the markings of the roof headlining.

    3. Install the No. 1 roof wire onto the roof headlining with adhesive tape.

      Note


      • Apply the tape securely in place.

      • Do not touch the adhesive surface when applying the tape to prevent adhesion failure.

  2. INSTALL NO. 1 ROOF WIRE (for Glass Roof)


    1. Align the positioning tape on the front part of the No. 1 roof wire with the front tab of the roof headlining.

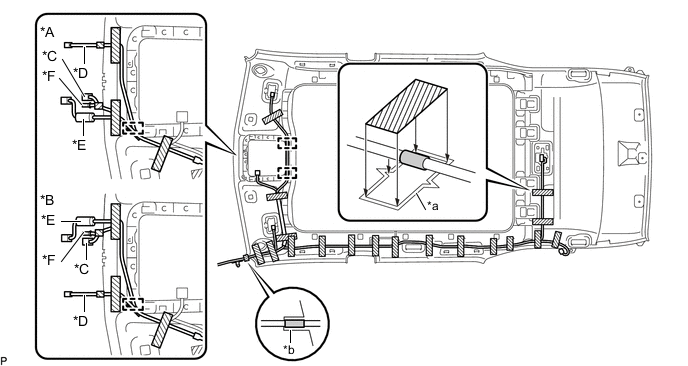

      A00324ZC01
      *A for LHD *B for RHD
      *C w/ EC Mirror *D w/ Rain Sensor
      *E w/ Pre-crash Safety System *F w/ Pre-Crash Safety City Heater
      *a Marking *b Front Tab
      A00324N Positioning Tape A00326E Adhesive Tape

    2. Engage each clamp.

    3. Align the positioning tape on the No. 1 roof wire with the markings of the roof headlining.

    4. Install the No. 1 roof wire onto the roof headlining with adhesive tape.

      Note


      • Apply the tape securely in place.

      • Do not touch the adhesive surface when applying the tape to prevent adhesion failure.

  3. INSTALL CENTER ROOF HEADLINING PAD (for Standard Roof with Vanity Light)

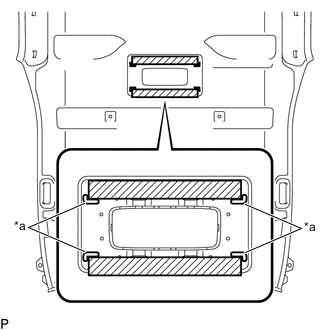

    1. A003229C01
      *a Marking

      Remove the release paper from 2 new center roof headlining pads.

      Tech Tips

      After removing the release paper, keep the exposed adhesive free from foreign matter.

    2. Align the 2 center roof headlining pads with the markings on the roof headlining assembly and install the pads as shown in the illustration.

  4. INSTALL NO. 2 ROOF SILENCER PAD (for Standard Roof)

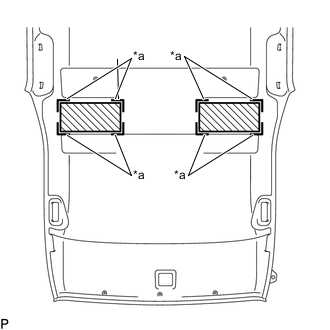

    1. A00327OC01
      *a Marking

      Align the 2 No. 2 roof silencer pads with the markings on the roof headlining assembly and install the pads using hot-melt glue as shown in the illustration.

  5. INSTALL NO. 1 ROOF SILENCER PAD (for Standard Roof)


    1. Align the 5 No. 1 roof silencer pads with the markings on the roof headlining assembly and install the pads using hot-melt glue as shown in the illustration.

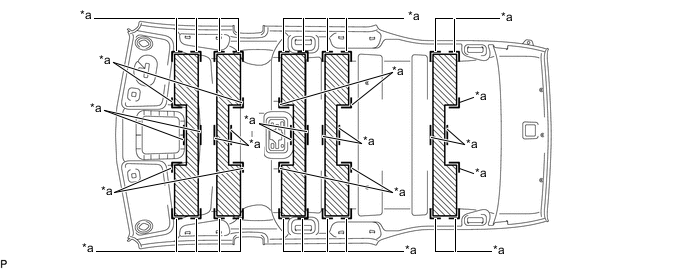

      A00325UC01
      *a Marking - -

  6. INSTALL NO. 3 ANTENNA CORD SUB-ASSEMBLY

    Click here

  7. INSTALL VANITY LIGHT ASSEMBLY (w/ Vanity Light)

    Click here

  8. INSTALL NO. 1 ROOM LIGHT ASSEMBLY (for Push Switch Type)

    Click here
