ROOF SUNSHADE SYSTEM PARTS LOCATION
ILLUSTRATION

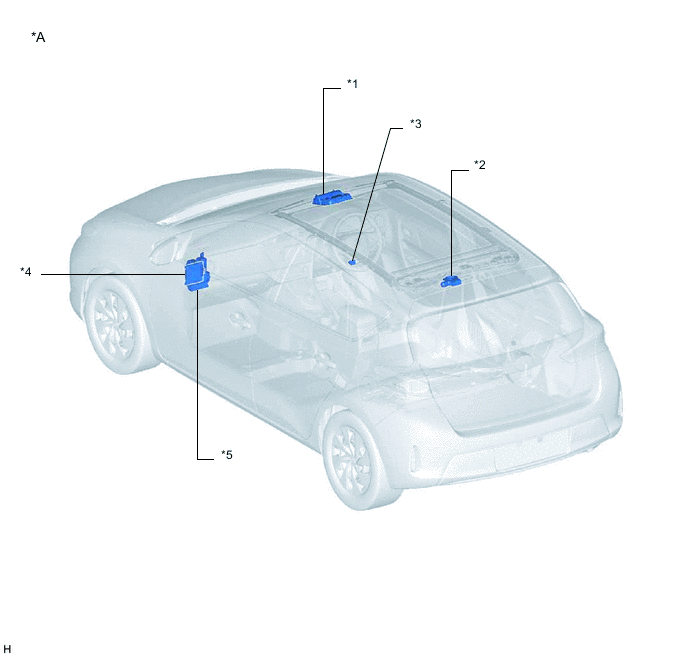

| *A | for Hatchback LHD | - | - |
| *1 | ROOF SUNSHADE SWITCH (MAP LIGHT ASSEMBLY) | *2 | ROOF SUNSHADE ECU (SLIDING ROOF DRIVE GEAR ASSEMBLY) |
| *3 | DLC3 | *4 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *5 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - S/ROOF FUSE - ECU-IG NO. 3 FUSE |
- | - |
ILLUSTRATION

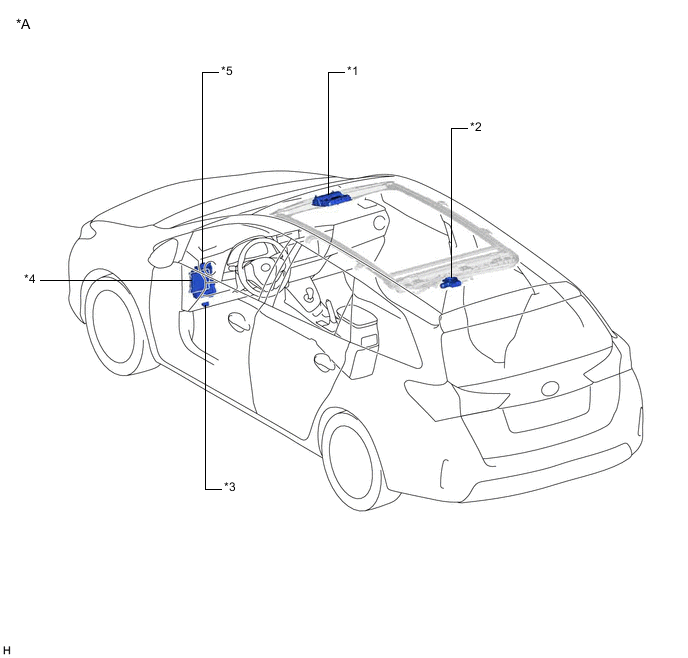

| *A | for Hatchback RHD | - | - |
| *1 | ROOF SUNSHADE SWITCH (MAP LIGHT ASSEMBLY) | *2 | ROOF SUNSHADE ECU (SLIDING ROOF DRIVE GEAR ASSEMBLY) |
| *3 | DLC3 | *4 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *5 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - S/ROOF FUSE - ECU-IG NO. 3 FUSE |
- | - |
ILLUSTRATION

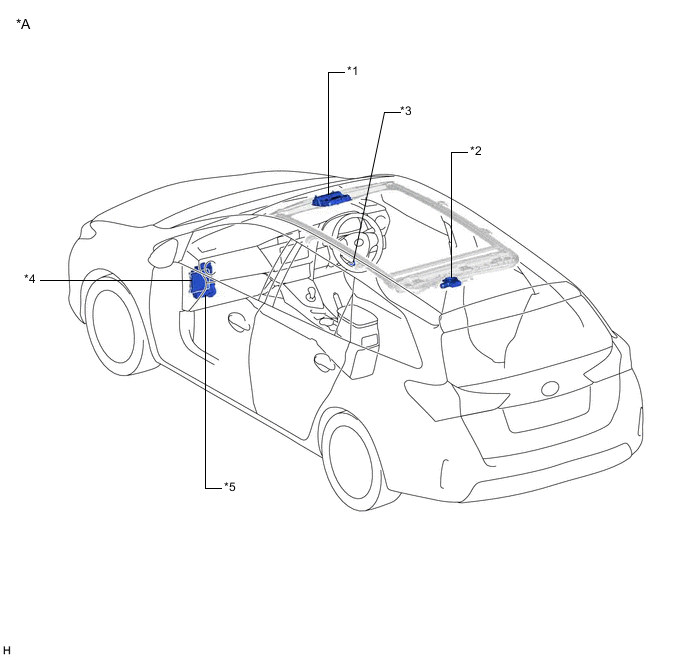

| *A | for Wagon LHD | - | - |
| *1 | ROOF SUNSHADE SWITCH (MAP LIGHT ASSEMBLY) | *2 | ROOF SUNSHADE ECU (SLIDING ROOF DRIVE GEAR ASSEMBLY) |
| *3 | DLC3 | *4 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *5 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - S/ROOF FUSE - ECU-IG NO. 3 FUSE |
- | - |
ILLUSTRATION
| *A | for Wagon RHD | - | - |
| *1 | ROOF SUNSHADE SWITCH (MAP LIGHT ASSEMBLY) | *2 | ROOF SUNSHADE ECU (SLIDING ROOF DRIVE GEAR ASSEMBLY) |
| *3 | DLC3 | *4 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *5 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - S/ROOF FUSE - ECU-IG NO. 3 FUSE |
- | - |
