FRONT SEAT ASSEMBLY DISASSEMBLY

CAUTION / NOTICE / HINT

Tech Tips


  • Use the same procedure for the RH side and LH side.

  • The following procedure is for the LH side.

PROCEDURE


  1. REMOVE FRONT SEAT INNER BELT ASSEMBLY (for Driver Side)

    Click here

  2. REMOVE FRONT SEAT INNER BELT ASSEMBLY (for Front Passenger Side)

    Click here

  3. DISCONNECT SEPARATE TYPE FRONT SEAT CUSHION COVER

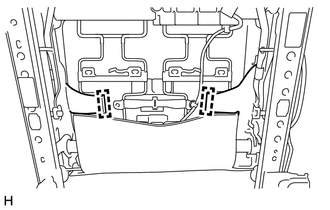

    1. A00Y7KZ

      Disengage the 2 hooks to disconnect the separate type front seat cushion cover.

  4. DISCONNECT SEPARATE TYPE FRONT SEATBACK COVER

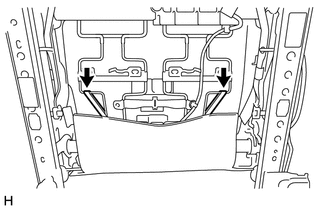

    1. A00Y6B4

      Disconnect the 2 rubber bands to disconnect the separate type front seatback cover.

  5. REMOVE FRONT SEAT INNER CUSHION SHIELD

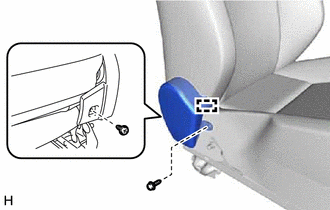

    1. A00Y8MN

      Using a T20 "TORX" socket wrench, remove the 2 screws.

    2. Disengage the guide to remove the front seat inner cushion shield.

  6. REMOVE RECLINING ADJUSTER RELEASE HANDLE

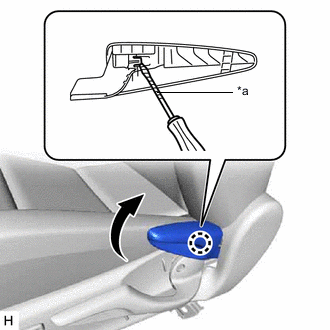

    1. A00Y63CC01
      *a Protective Tape

      Using a screwdriver with its tip wrapped with protective tape, disengage the claw and remove the reclining adjuster release handle.

  7. REMOVE VERTICAL ADJUSTING HANDLE (w/ Vertical Adjuster)

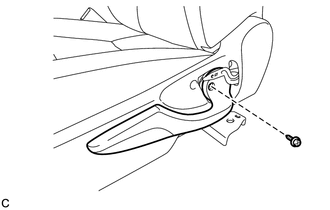

    1. A00YB3X

      Using a T20 "TORX" socket wrench, remove the screw and vertical adjusting handle.

  8. REMOVE FRONT SEAT CUSHION SHIELD

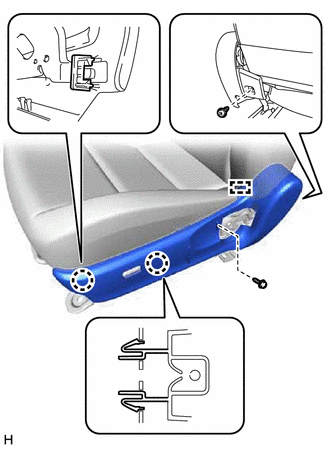

    1. A00YB46

      Using a T20 "TORX" socket wrench, remove the 2 screws.

    2. w/o Lumbar Support:


      1. Disengage the 2 claws and guide to remove the front seat cushion shield.

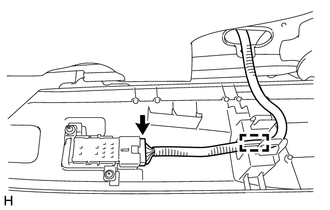

    3. A00Y9D4

      w/ Lumbar Support:


      1. Disengage the 2 claws and guide to separate the front seat cushion shield.

      2. Disconnect the connector from the front lumbar power seat switch.

      3. Disengage the guide to remove the front seat cushion shield.

  9. REMOVE FRONT LUMBAR POWER SEAT SWITCH (w/ Lumbar Support)

    Click here

  10. REMOVE SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD


    1. for Front Passenger Side:

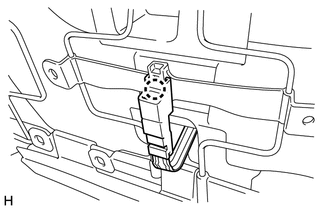

      1. A00Y8EU

        Disengage the claw to remove the connector.

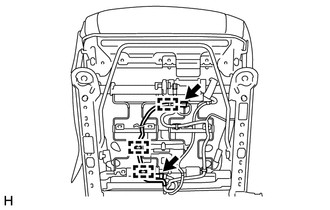

    2. A00Y6PY

      w/ Seat Heater System:


      1. Disconnect the 2 connectors.

      2. Disengage the 3 clamps to separate the front seat cushion heater assembly wire harness.

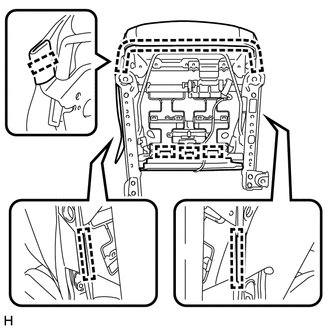

    3. A00Y6SY

      Disengage each hook and remove the separate type front seat cushion cover with pad.

  11. REMOVE SEPARATE TYPE FRONT SEAT CUSHION COVER

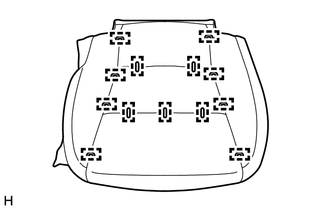

    1. A00Y4Y9

      Remove the 13 hog rings and separate type front seat cushion cover from the separate type front seat cushion pad.

  12. REMOVE FRONT SEAT CUSHION HEATER ASSEMBLY (w/ Seat Heater System)

    Click here

  13. SEPARATE FRONT SEAT AIRBAG ASSEMBLY

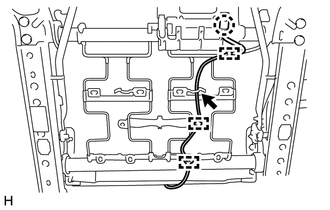

    1. A00Y4YB

      Disengage the 3 clamps.

    2. Disengage the wire harness guide.

    3. Disengage the claw to separate the front seat airbag assembly wire harness.

  14. REMOVE SEPARATE TYPE FRONT SEATBACK COVER WITH PAD

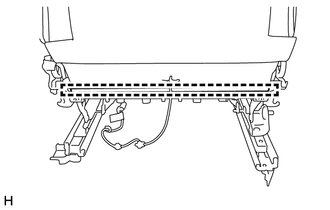

    1. A00Y667

      Disengage the hook.

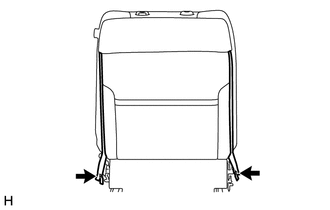

    2. A00Y7GV

      Open the 2 fasteners.

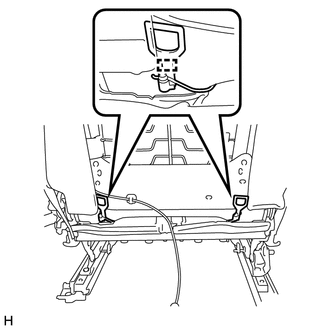

    3. A00Y6VO

      for Standard Seat Type:


      1. Disengage the 2 hooks.

    4. A00Y7JC

      Disengage the 2 hooks.

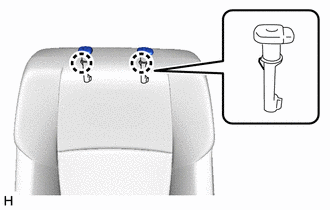

    5. A00YAMX

      Disengage each claw and remove the 2 front seat headrest supports.

    6. Remove the separate type front seatback cover with pad.

  15. REMOVE FRONT SEAT AIRBAG ASSEMBLY

    Click here

  16. REMOVE SEPARATE TYPE FRONT SEATBACK COVER (for Standard Seat Type)

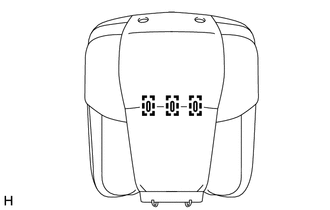

    1. A00Y4VD

      Remove the 3 hog rings.

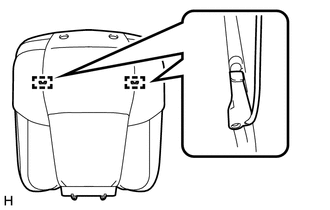

    2. A00Y83Z

      Disengage the 2 hooks to remove the separate type front seatback cover from the separate type front seatback pad.

  17. REMOVE SEPARATE TYPE FRONT SEATBACK COVER (for Sports Seat Type)

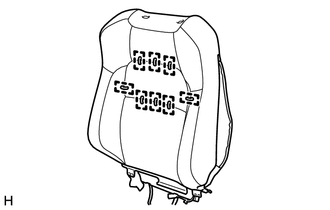

    1. A00Y7LG

      Remove the 8 hog rings and separate type front seatback cover from the separate type front seatback pad.

  18. REMOVE FRONT SEATBACK HEATER ASSEMBLY (w/ Seat Heater System)

    for Standard Seat Type: Click here

    for Sports Seat Type: Click here

  19. REMOVE RECLINING ADJUSTER INSIDE COVER LH

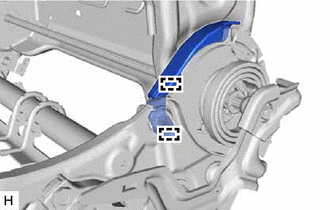

    1. A00Y9C1

      Disengage the 2 guides to remove the reclining adjuster inside cover LH.

  20. REMOVE RECLINING ADJUSTER INSIDE COVER RH

    Tech Tips

    Perform the same procedure as for the LH side.

  21. REMOVE RECLINING CONTROL LEVER

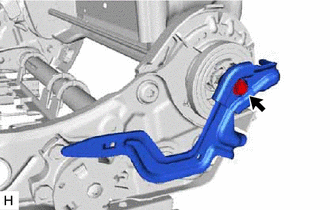

    1. A00YA16

      Remove the bolt and reclining control lever.

  22. REMOVE FRONT SEAT WIRE (w/ Lumbar Support)


    1. Disconnect each connector and disengage each clamp to remove the front seat wire.

  23. REMOVE SEPARATE TYPE FRONT SEATBACK SPRING ASSEMBLY

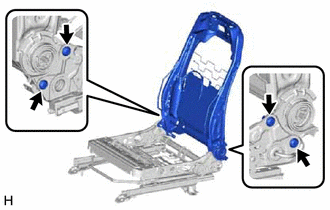

    1. A00YA6Q

      Using a T50 "TORX" socket wrench, remove the 4 bolts and separate type front seatback spring assembly from the separate type front seat cushion spring assembly.

  24. REMOVE FRONT SEATBACK SPRING SUB-ASSEMBLY (w/o Lumbar Support)

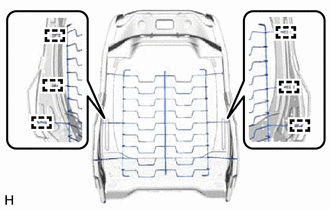

    A00Y8BA

    1. Disengage the 6 hooks to remove the front seatback spring sub-assembly from the front seatback frame sub-assembly.

  25. REMOVE FRONT SEATBACK SPRING SUB-ASSEMBLY (w/ Lumbar Support)

    Click here

  26. REMOVE FRONT SEAT CUSHION SPRING SUB-ASSEMBLY

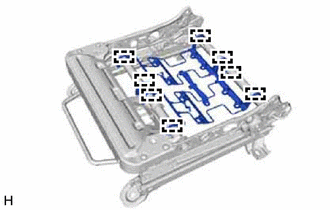

    A00Y60U

    1. Disengage each hook to remove the front seat cushion spring sub-assembly from the front seat adjuster assembly.

  27. REMOVE FRONT UPPER SEAT TRACK RAIL COVER LH

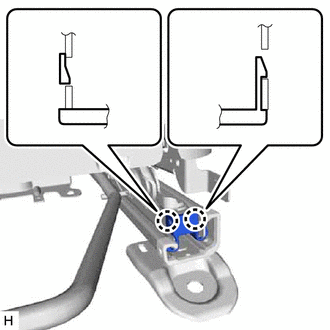

    A00Y7ZQ

    1. Disengage the 2 claws to remove the front upper seat track rail cover LH.

  28. REMOVE FRONT UPPER SEAT TRACK RAIL COVER RH

    Tech Tips

    Perform the same procedure as for the front upper seat track rail cover LH.

  29. REMOVE REAR UPPER SEAT TRACK RAIL COVER LH

    Tech Tips

    Perform the same procedure as for the front upper seat track rail cover LH.

  30. REMOVE REAR UPPER SEAT TRACK RAIL COVER RH

    Tech Tips

    Perform the same procedure as for the front upper seat track rail cover LH.

  31. REMOVE OUTER SEAT TRACK COVER LH

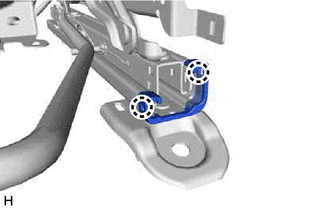

    A00Y717

    1. Disengage 2 claws to remove the outer seat track cover LH.

  32. REMOVE SEAT TRACK COVER RH

    Tech Tips

    Perform the same procedure as for the outer seat track cover LH.
