AIRBAG SYSTEM SYSTEM DIAGRAM

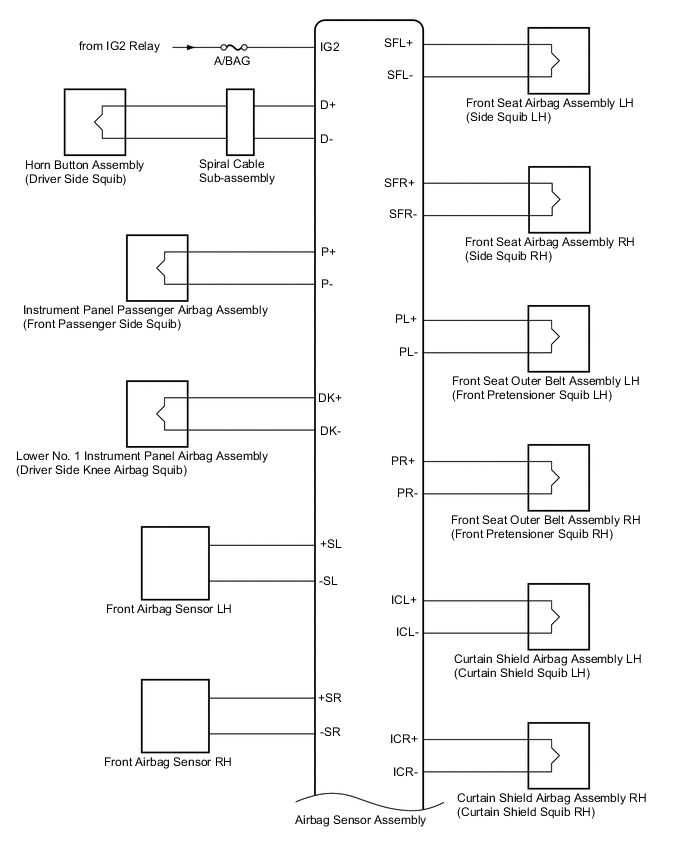

A01KTIEE08

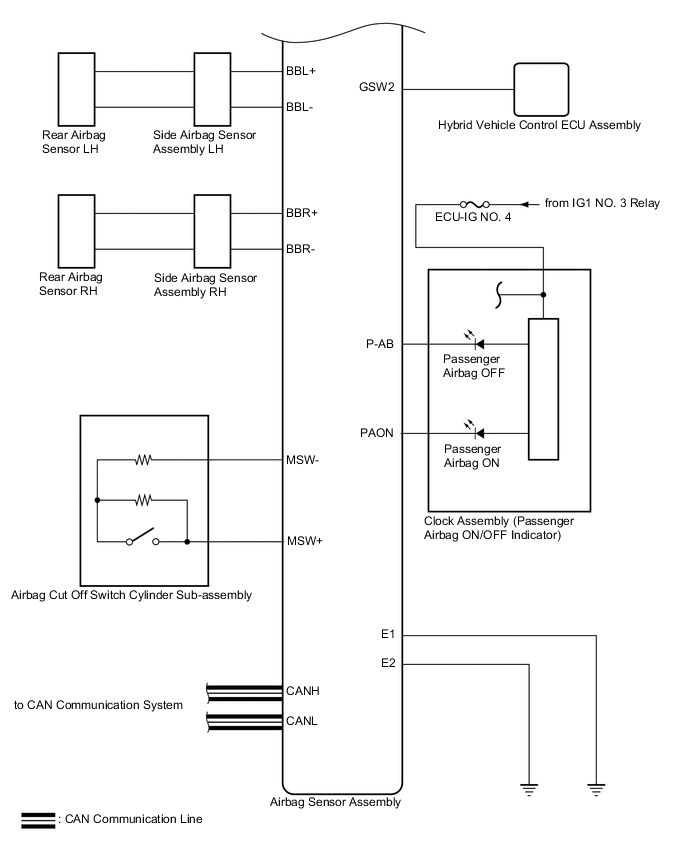

A01KRGCE02
Communication Table

Transmitting ECU

(Transmitter)

 Receiving ECU Signal Communication Method
Airbag Sensor Assembly Hybrid Vehicle Control ECU Assembly

  • Crash detection signal

 CAN
Combination Meter Assembly

  • SRS warning light ON demand signal

  • Diagnosis signal (DTC)
Skid Control ECU (Brake Booster with Master Cylinder Assembly)

  • Yaw rate and acceleration signal
Hybrid Vehicle Control ECU Assembly Airbag Sensor Assembly

  • Shift position signal

  • Test mode signal
ECM

  • Engine speed signal
Skid Control ECU (Brake Booster with Master Cylinder Assembly)

  • Vehicle speed signal

  • Stop signal

  • Yaw rate and acceleration request signal
Main Body ECU (Multiplex Network Body ECU)

  • Trip count signal

  • Time count signal
