PUSH-BUTTON START PARTS LOCATION
ILLUSTRATION

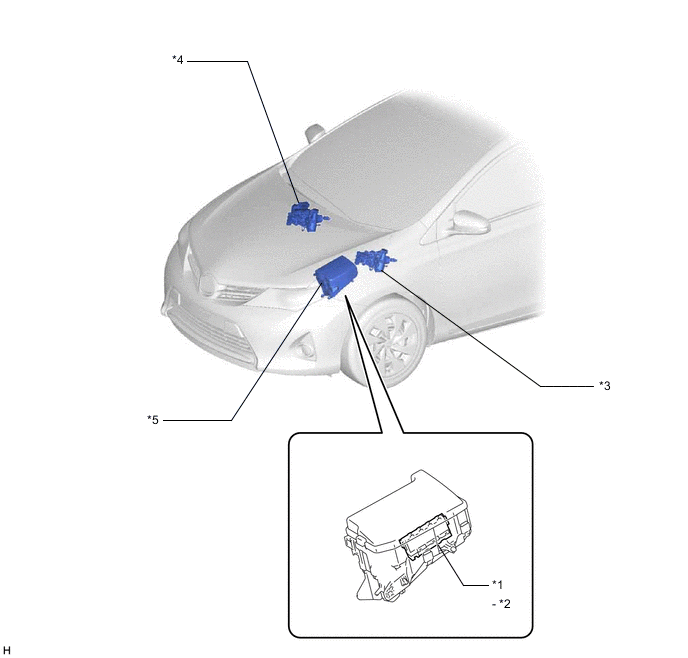

| *1 | INTEGRATION RELAY | *2 | IG2 RELAY |
| *3 | SKID CONTROL ECU (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY) (for LHD) | *4 | SKID CONTROL ECU (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY) (for RHD) |
| *5 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - AM2 FUSE |
- | - |
ILLUSTRATION

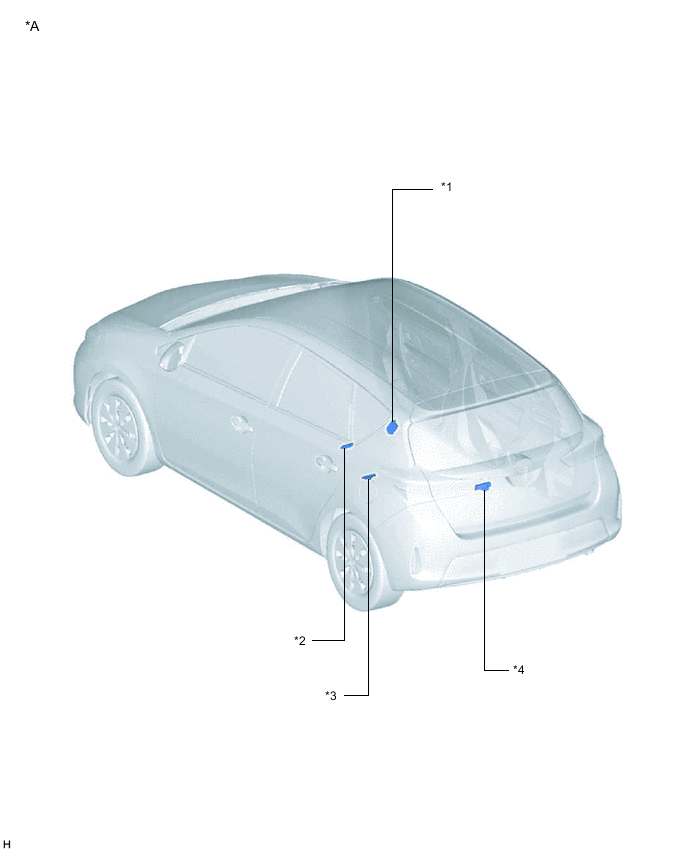

| *A | for Hatchback | - | - |
| *1 | DOOR CONTROL RECEIVER | *2 | NO. 3 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY (FRONT FLOOR) |
| *3 | NO. 2 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY (REAR FLOOR) | *4 | NO. 1 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY (INSIDE LUGGAGE) (for RHD) |
ILLUSTRATION

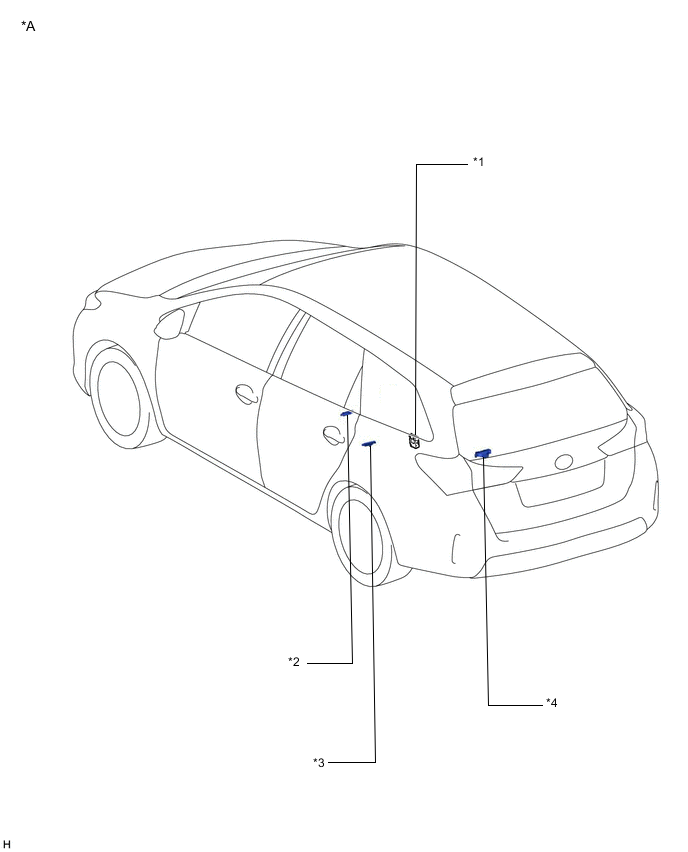

| *A | for Wagon | - | - |
| *1 | DOOR CONTROL RECEIVER | *2 | NO. 3 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY (FRONT FLOOR) |
| *3 | NO. 2 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY (REAR FLOOR) | *4 | NO. 1 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY (INSIDE LUGGAGE) (for RHD) |
ILLUSTRATION

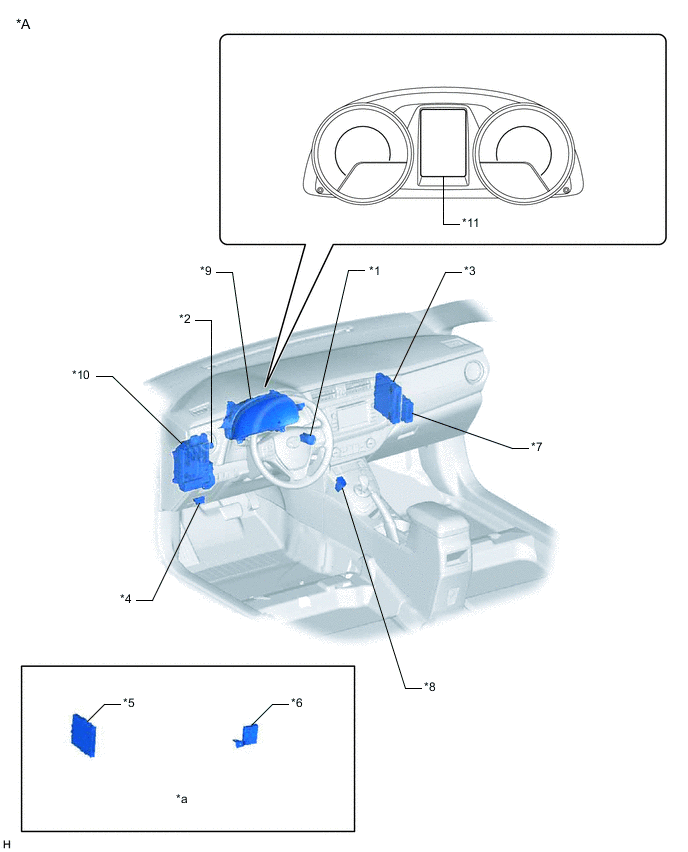

| *A | for LHD | - | - |
| *1 | POWER SWITCH | *2 | STOP LIGHT SWITCH ASSEMBLY |
| *3 | POWER MANAGEMENT CONTROL ECU | *4 | DLC3 |
| *5 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) | *6 | ID CODE BOX (IMMOBILISER CODE ECU) |
| *7 | TRANSMISSION CONTROL ECU ASSEMBLY | *8 | P POSITION SWITCH (TRANSMISSION SHIFT MAIN SWITCH) |
| *9 | COMBINATION METER ASSEMBLY | *10 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - STOP FUSE - ECU-IG NO. 1 FUSE - WIPER RR FUSE - ECU-IG NO. 5 FUSE - ACC FUSE - IG1 NO. 1 RELAY - IG1 NO. 2 RELAY - IG1 NO. 3 RELAY - ACC RELAY |
| *11 | MULTI-INFORMATION DISPLAY - SMART WARNING LIGHT |
- | - |
| *a | Refer to Service Bulletin for the installation position of the parts. | - | - |
ILLUSTRATION

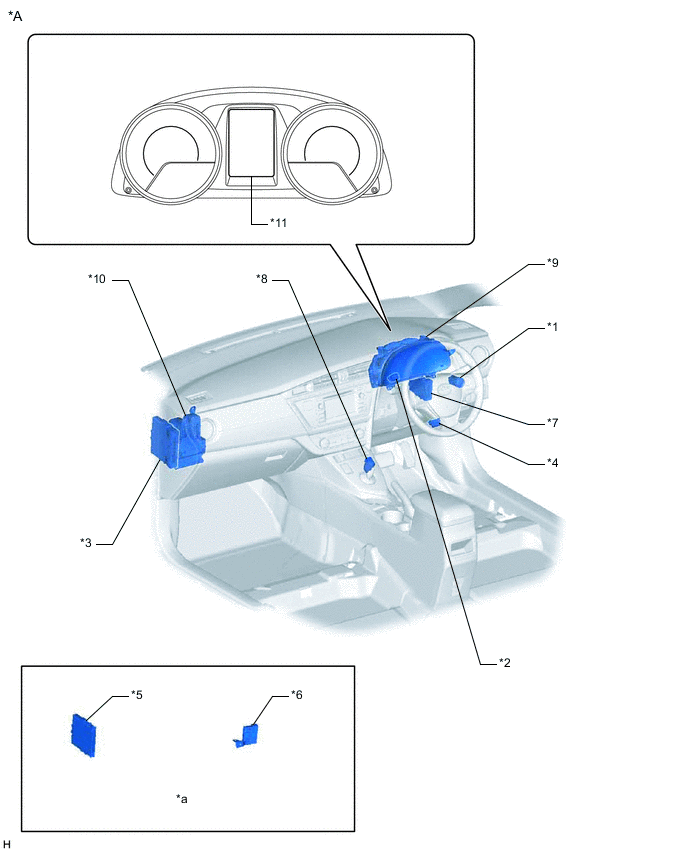

| *A | for RHD | - | - |
| *1 | POWER SWITCH | *2 | STOP LIGHT SWITCH ASSEMBLY |
| *3 | POWER MANAGEMENT CONTROL ECU | *4 | DLC3 |
| *5 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) | *6 | ID CODE BOX (IMMOBILISER CODE ECU) |
| *7 | TRANSMISSION CONTROL ECU ASSEMBLY | *8 | P POSITION SWITCH (TRANSMISSION SHIFT MAIN SWITCH) |
| *9 | COMBINATION METER ASSEMBLY | *10 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - STOP FUSE - ECU-IG NO. 1 FUSE - WIPER RR FUSE - ECU-IG NO. 5 FUSE - ACC FUSE - IG1 NO. 1 RELAY - IG1 NO. 2 RELAY - IG1 NO. 3 RELAY - ACC RELAY |
| *11 | MULTI-INFORMATION DISPLAY - SMART WARNING LIGHT |
- | - |
| *a | Refer to Service Bulletin for the installation position of the parts. | - | - |
