WIRELESS DOOR LOCK CONTROL SYSTEM SYSTEM DIAGRAM


  1. Wireless Door Lock Control System (for LHD)

    A01KU3FE02

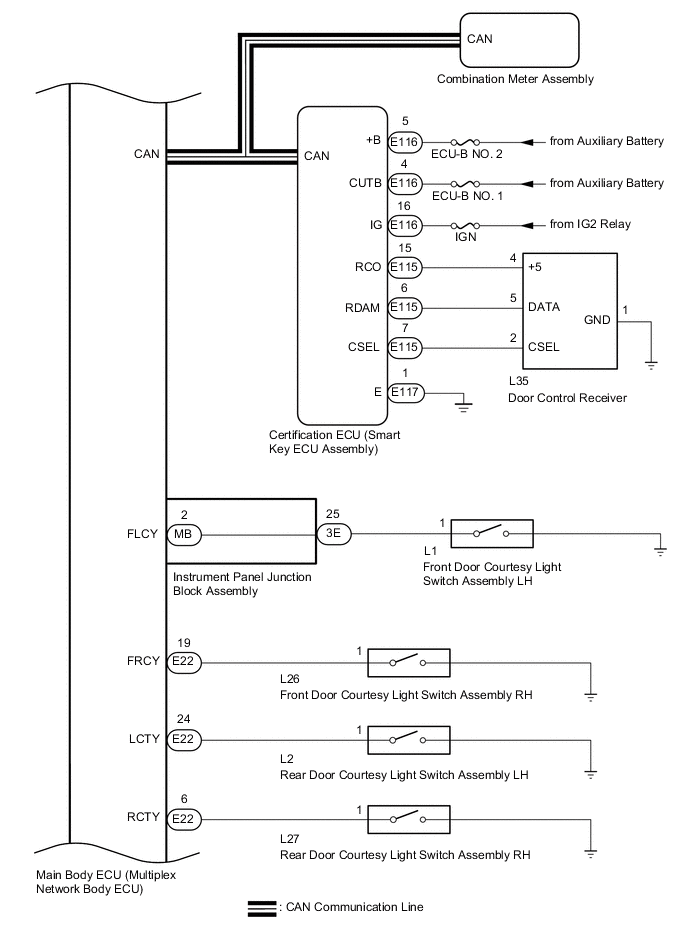

    A01KTD3E06
    A01KTH0E01
    A01KRUGE04
    Communication Table
    Sender Receiver Signal Line

    Certification ECU

    (Smart Key ECU Assembly)

    Main Body ECU

    (Multiplex Network Body ECU)

    • Wireless door lock/unlock signal

    • Wireless door lock buzzer sound request signal

    		 CAN

    Main Body ECU

    (Multiplex Network Body ECU)

    		 Combination Meter Assembly Wireless door lock hazard warning light request signal CAN

  2. Wireless Door Lock Control System (for RHD)

    A01KU3FE02

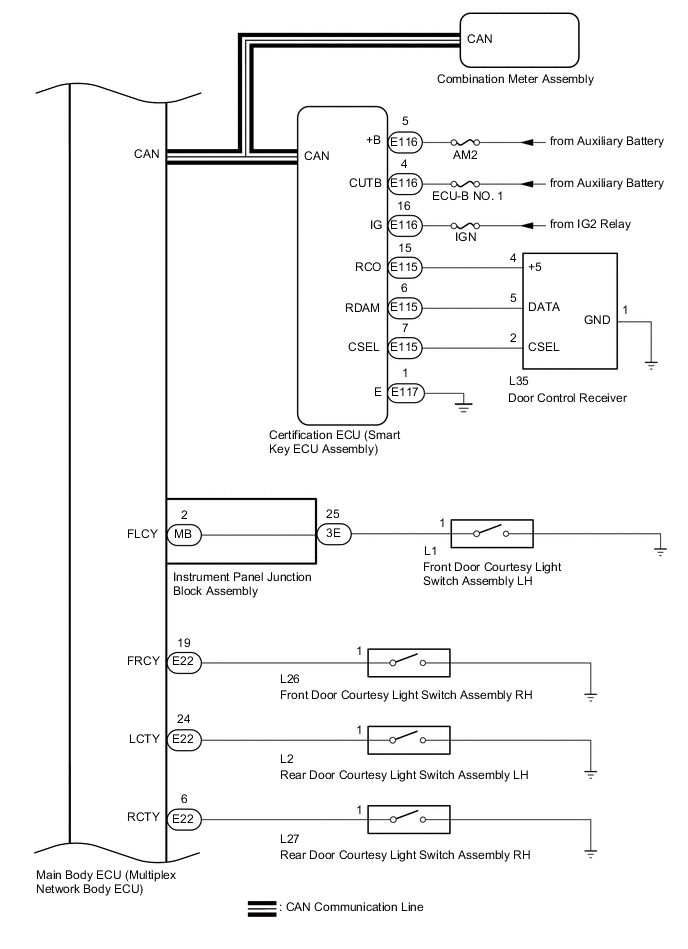

    A01KTD3E04
    A01KTH0E06
    A01KRUGE05
    Communication Table
    Sender Receiver Signal Line

    Certification ECU

    (Smart Key ECU Assembly)

    Main Body ECU

    (Multiplex Network Body ECU)

    • Wireless door lock/unlock signal

    • Wireless door lock buzzer sound request signal

    		 CAN

    Main Body ECU

    (Multiplex Network Body ECU)

    		 Combination Meter Assembly Wireless door lock hazard warning light request signal CAN
