MAIN BODY ECU(for RHD) COMPONENTS
ILLUSTRATION
| *A | for Hatchback | - | - |
| *1 | BATTERY BOX COVER | - | - |
ILLUSTRATION
| *A | for Wagon | - | - |
| *1 | BATTERY BOX COVER | - | - |
ILLUSTRATION

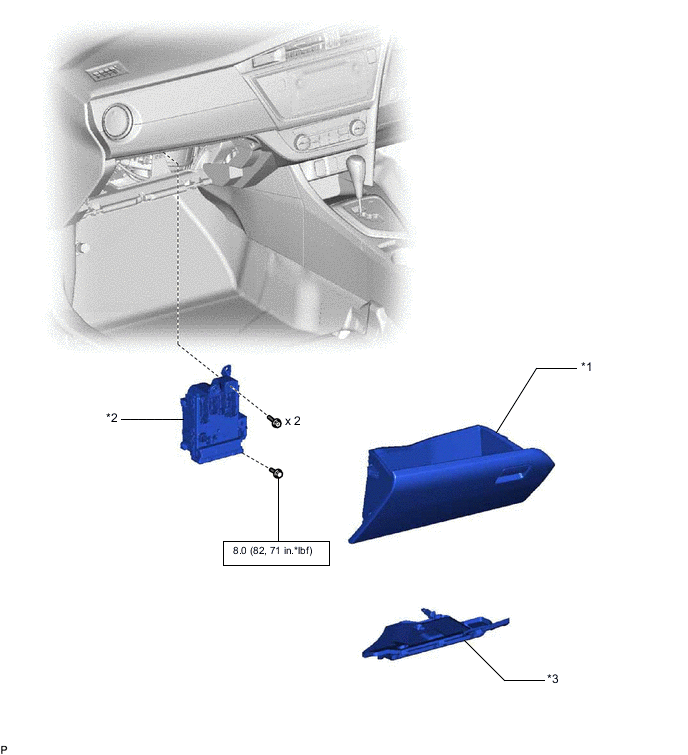

| *1 | GLOVE COMPARTMENT DOOR ASSEMBLY | *2 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY WITH MAIN BODY ECU |
| *3 | NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY | - | - |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
ILLUSTRATION

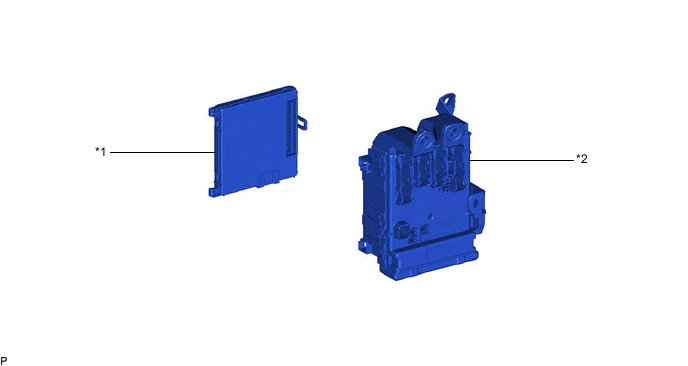

| *1 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *2 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY |
