CLEARANCE WARNING ECU(for LHD) COMPONENTS

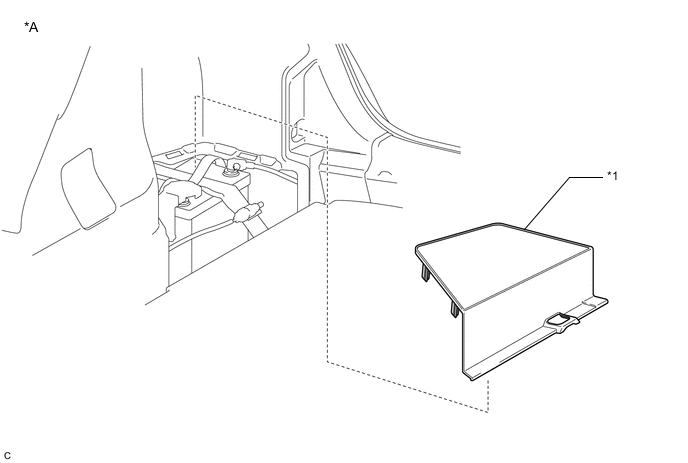

ILLUSTRATION
| *A | for Hatchback | - | - |
| *1 | BATTERY BOX COVER | - | - |
ILLUSTRATION
| *A | for Wagon | - | - |
| *1 | BATTERY BOX COVER | - | - |

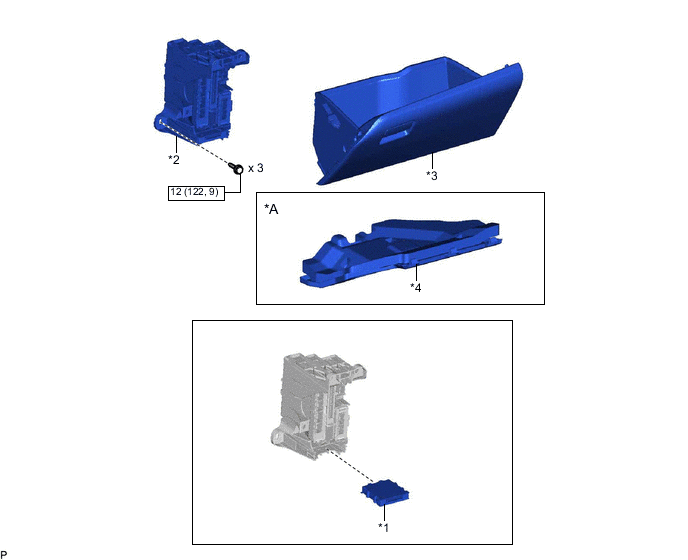

ILLUSTRATION
| *A | w/ Instrument Panel Under Cover | - | - |
| *1 | CLEARANCE WARNING ECU ASSEMBLY | *2 | ECU INTEGRATION BOX RH |
| *3 | GLOVE COMPARTMENT DOOR ASSEMBLY | *4 | NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
