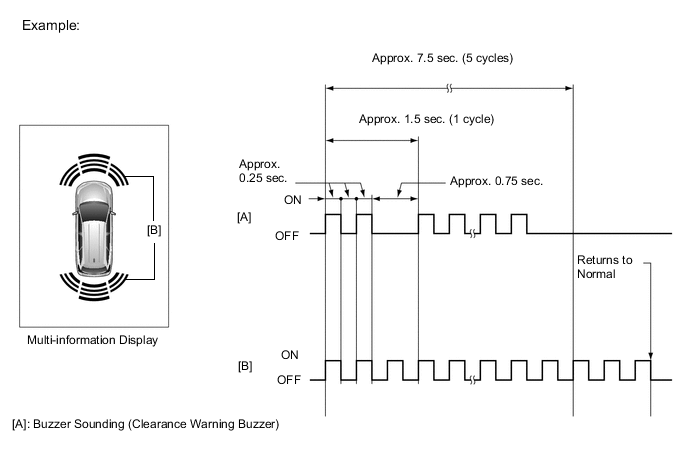

MALFUNCTION DISPLAY (MULTI-INFORMATION DISPLAY)
Open circuit indication
If there is an open circuit between the ultrasonic sensor and the clearance warning ECU assembly or a sensor is malfunctioning, the malfunction is displayed as shown in the illustration.
Tech Tips
When a malfunction is detected, bars for all detection areas shown in the illustration blink.
If a sensor has an open circuit, check for DTCs and troubleshoot according to each inspection procedure.
MALFUNCTION DISPLAY (MULTI-DISPLAY)
Open circuit indication
If there is an open circuit between the ultrasonic sensor and the clearance warning ECU assembly or a sensor is malfunctioning, the malfunction is displayed as shown in the illustration.
| *a | Other than park (P) or reverse (R) selected | *b | Reverse (R) selected |
Tech Tips
When a malfunction is detected, bars for all detection areas shown in the illustration blink.
If a sensor has an open circuit, check for DTCs and troubleshoot according to each inspection procedure.
DETECTION RANGE MEASUREMENT AND DISPLAY INSPECTION
Note
Perfrom the following measurement and inspection with a shift state other than park (P) selected. Be sure to apply the parking brake and depress the brake pedal firmly to prevent the vehicle from moving.
Turn the power switch on (IG).
Turn the TOYOTA park assist-sensor system on.
Detection range measurement:
When measuring the detection range of the front sonar, move the shift lever to select a shift state other than park (P).
When measuring the detection range of the rear sonar, move the shift lever to reverse (R).
Move a 60 mm (2.36 in.) diameter pole near each sensor to measure its detection range.
Note
These detection ranges are applicable when positioning the 60 mm (2.36 in.) diameter pole parallel or perpendicular to the ground. The detection range varies depending on the measuring method and type of obstacle (such as walls).
Tech Tips
Have an assistant move the pole.

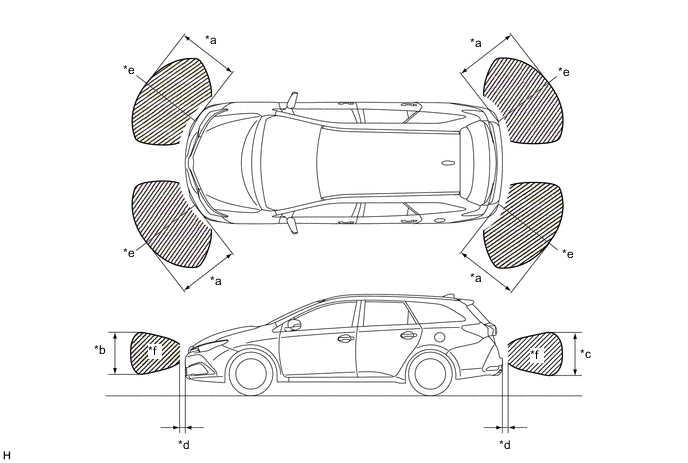

Figure 1. Corner Sonar
| *a | Approx. 500 mm (19.7 in.) | *b | Approx. 650 mm (25.6 in.) |
| *c | Approx. 550 mm (21.7 in.) | *d | Approx. 100 mm (3.9 in.) |
| *e | A | *f | B |
Note
The ultrasonic sensor side view detection range (hatched area labeled (B)) represents the cross section of the top view detection range (A). The hatched area (A) does not represent the entire side view detection range.

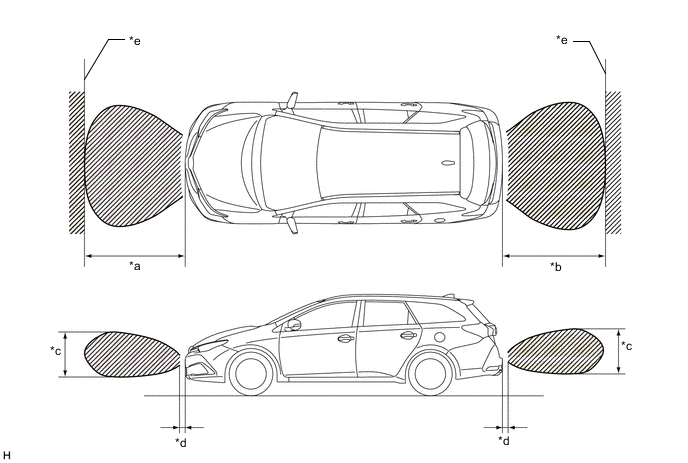

Figure 2. Center Sonar
| *a | Approx. 1000 mm (39.4 in.) | *b | Approx. 1500 mm (59.1 in.) |
| *c | Approx. 650 mm (25.6 in.) | *d | Approx. 100 mm (3.9 in.) |
| *e | Wall | - | - |

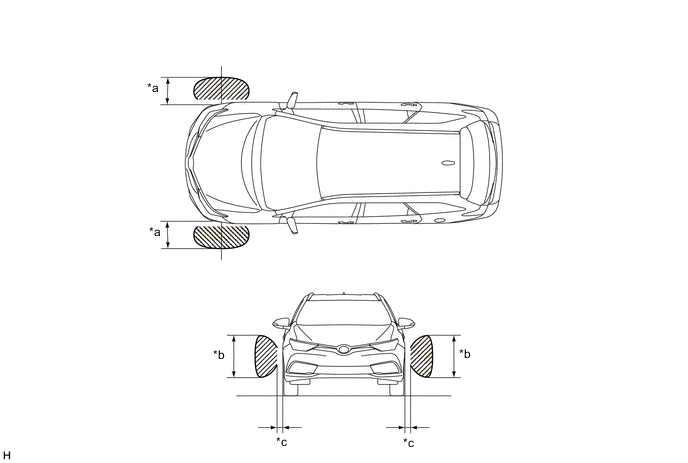

Figure 3. Front Side Sonar
| *a | Approx. 250 mm (9.8 in.) | *b | Approx. 400 mm (15.7 in.) |
| *c | Approx. 100 mm (3.9 in.) | - | - |

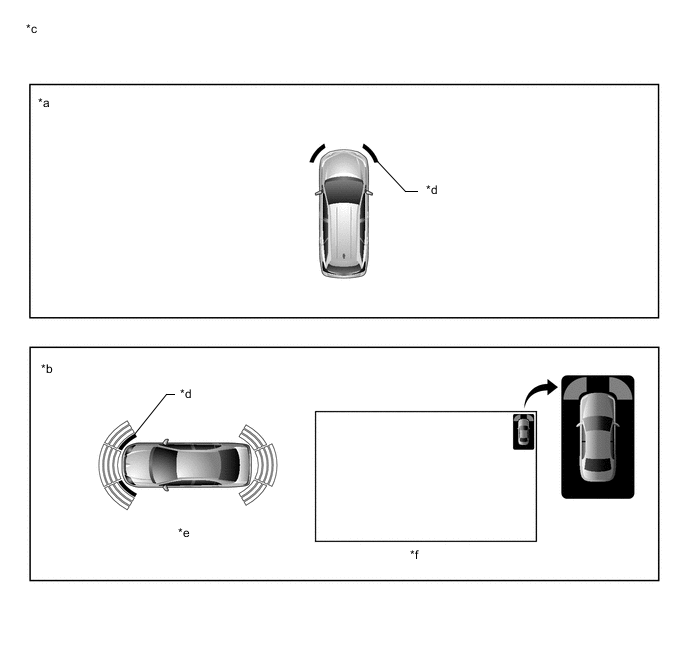

Front side sonar display and buzzer operation check
When the No. 2 ultrasonic sensors (front side LH/RH) have detected an obstacle, check the displays and check that the No. 1 clearance warning buzzer sounds.
| Power Switch | TOYOTA Parking Assist-sensor System | Shift State | Vehicle Speed |
|---|---|---|---|
| On (IG) | On | Other than park (P) or reverse (R) | Less than 10 km/h (6 mph) |
| On (IG) | On | Reverse (R) | - |
| *a | Multi-information Display | *b | Multi-display |
| *c | Example (Front Side Sonar) | *d | Close-range Detection |
| *e | Other than park (P) or reverse (R) selected | *f | Reverse (R) selected |
Tech Tips
Ultrasonic waves are used to measure the detection range; however, the detection range may vary depending on the ambient temperature.

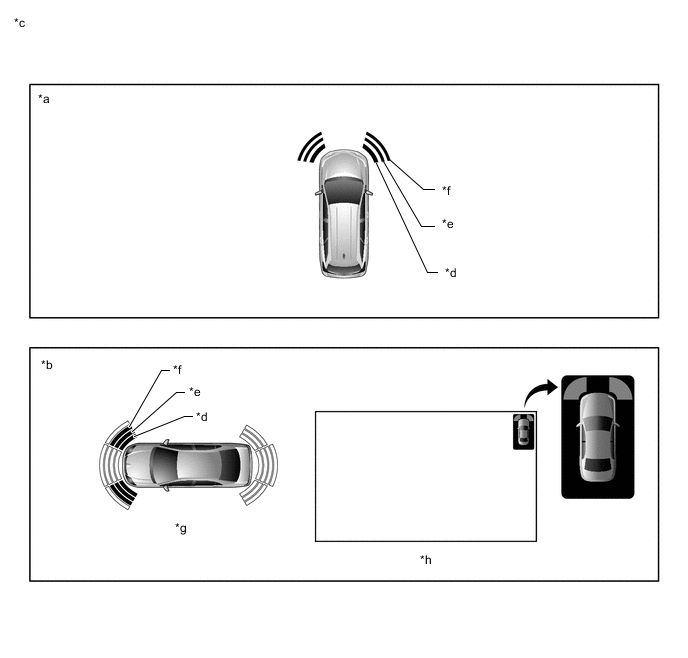

Front corner sonar display and buzzer operation check
When the No. 1 ultrasonic sensors (front corner LH/RH) have detected an obstacle, check the displays and check that the No. 1 clearance warning buzzer sounds.
| Power Switch | TOYOTA Parking Assist-sensor System | Shift State | Vehicle Speed |
|---|---|---|---|
| On (IG) | On | Other than park (P) or reverse (R) | Less than 10 km/h (6 mph) |
| On (IG) | On | Reverse (R) | - |
| *a | Multi-information Display | *b | Multi-display |
| *c | Example (Front Corner Sonar) | *d | Close-range Detection |
| *e | Medium-range Detection | *f | Long-range Detection |
| *g | Other than park (P) or reverse (R) selected | *h | Reverse (R) selected |
Tech Tips
Ultrasonic waves are used to measure the detection range; however, the detection range may vary depending on the ambient temperature.

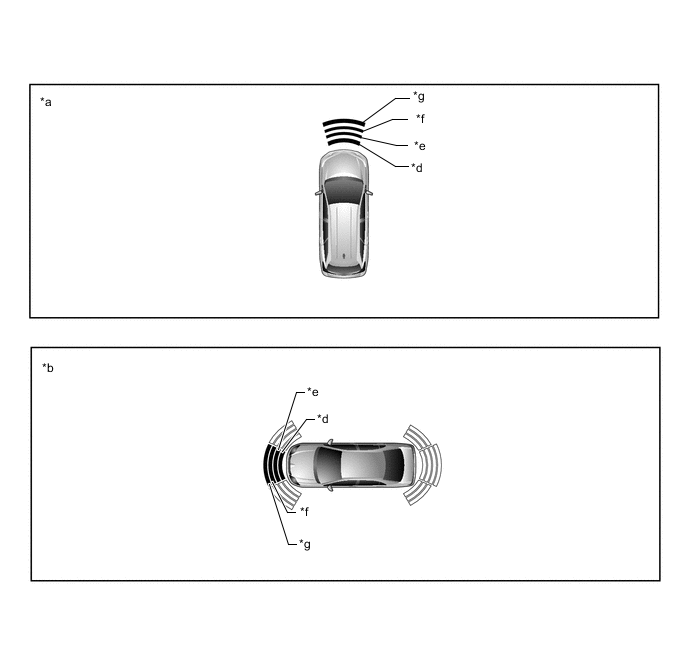

Front center sonar display and buzzer operation check
When the No. 1 ultrasonic sensors (front center LH/RH) have detected an obstacle, check the display and check that the No. 1 clearance warning buzzer sounds.
| Power Switch | TOYOTA Parking Assist-sensor System | Shift State | Vehicle Speed |
|---|---|---|---|
| On (IG) | On | Other than park (P) or reverse (R) | Less than 10 km/h (6 mph) |
| On (IG) | On | Reverse (R) | - |
| *a | Multi-information Display | *b | Multi-display |
| *c | Example (Front Center Sonar) | *d | Close-range Detection |
| *e | Medium-range Detection | *f | Long-range Detection |
| *g | Longest-range Detection | - | - |
Tech Tips
Ultrasonic waves are used to measure the detection range; however, the detection range may vary depending on the ambient temperature.
*1: While the simple intelligent parking assist system is not operating
*2: While the simple intelligent parking assist system is operating

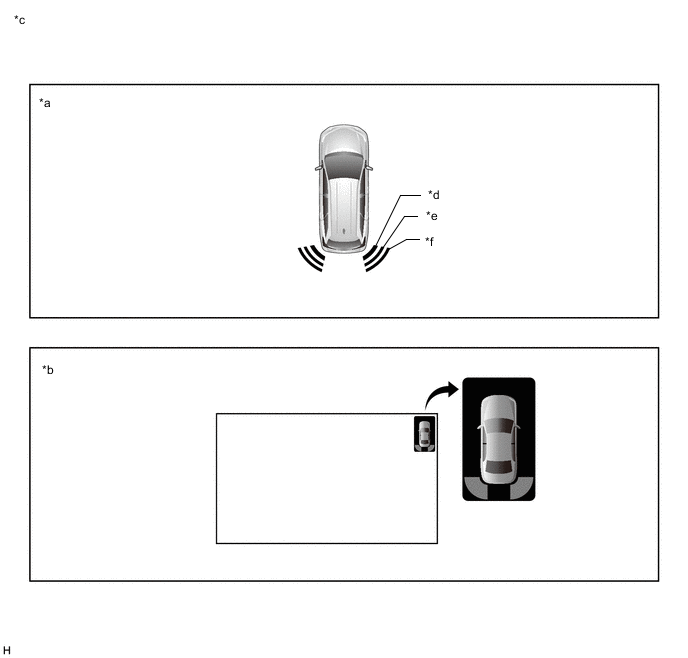

Rear corner sonar display and buzzer operation check
When the No. 1 ultrasonic sensors (rear corner LH/RH) have detected an obstacle, check the display and check that the No. 2 clearance warning buzzer sounds.
| Power Switch | TOYOTA Parking Assist-sensor System | Shift State | Vehicle Speed |
|---|---|---|---|
| On (IG) | On | Reverse (R) | - |
| *a | Multi-information Display | *b | Multi-display |
| *c | Example (Rear Corner Sonar) | *d | Close-range Detection |
| *e | Medium-range Detection | *f | Long-range Detection |
Tech Tips
Ultrasonic waves are used to measure the detection range; however, the detection range may vary depending on the ambient temperature.

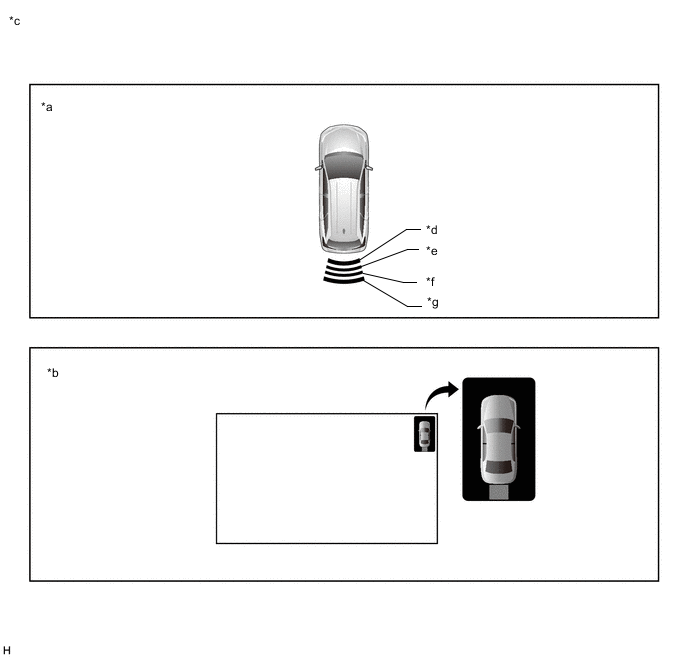

Rear center sonar display and buzzer operation check
When the No. 3 ultrasonic sensors (rear center LH/RH) have detected an obstacle, check the display and check that the No. 2 clearance warning buzzer sounds.
| Power Switch | TOYOTA Parking Assist-sensor System | Shift State | Vehicle Speed |
|---|---|---|---|
| On (IG) | On | Reverse (R) | - |
| *a | Multi-information Display | *b | Multi-display |
| *c | Example (Rear Center Sonar) | *d | Close-range Detection |
| *e | Medium-range Detection | *f | Long-range Detection |
| *g | Longest-range Detection | - | - |
Tech Tips
Ultrasonic waves are used to measure the detection range; however, the detection range may vary depending on the ambient temperature.
*1: While the simple intelligent parking assist system is not operating
*2: While the simple intelligent parking assist system is operating
