ГЕНЕРАТОР УЗЛЫ И ДЕТАЛИ

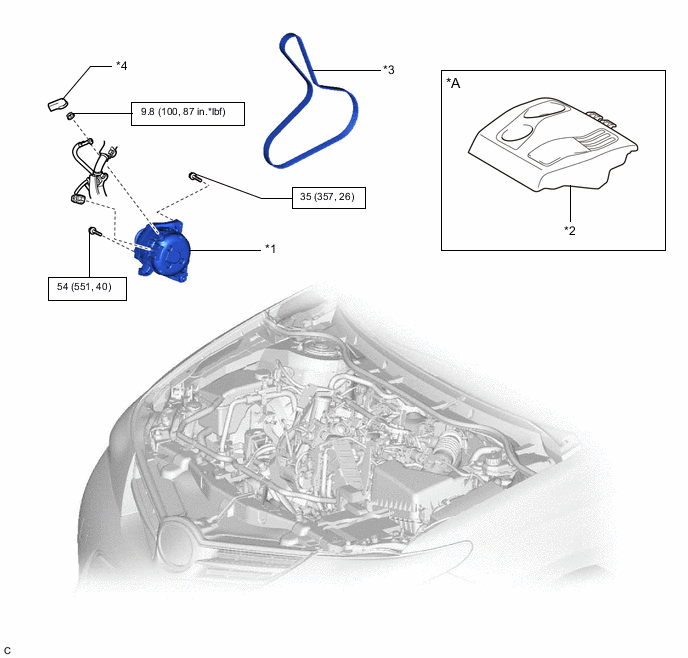

ILLUSTRATION
| *A | w/ No. 1 Engine Cover | - | - |
| *1 | GENERATOR ASSEMBLY | *2 | NO. 1 ENGINE COVER |
| *3 | V-RIBBED BELT | *4 | TERMINAL CAP |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
ILLUSTRATION
| *1 | GENERATOR BRUSH HOLDER ASSEMBLY | *2 | GENERATOR WITH CLUTCH PULLEY |
| *3 | GENERATOR COIL ASSEMBLY | *4 | GENERATOR DRIVE END FRAME BEARING |
| *5 | GENERATOR REAR END COVER | *6 | GENERATOR ROTOR ASSEMBLY |
| *7 | GENERATOR TERMINAL INSULATOR | *8 | WIRE HARNESS CLAMP BRACKET |
| *9 | GENERATOR DRIVE END FRAME | *10 | BEARING COVER PACKING |
| *11 | RETAINER PLATE | - | - |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | * | For use with SST |
| ● | Non-reusable part | - | - |
