FRONT BRAKE FLEXIBLE HOSE INSTALLATION

CAUTION / NOTICE / HINT

Note


  • Because the left and right front flexible hoses are not interchangeable, verify the part number when installing the front flexible hoses.

  • If the front flexible hoses are to be reused, connect them after checking the identification marks placed when each hose was disconnected.

Tech Tips


  • Use the same procedure for the LH side and RH side.

  • The following procedure is for the LH side.

PROCEDURE


  1. INSTALL FRONT FLEXIBLE HOSE

    Note

    When installing the front flexible hose, minimize twisting of the hose.

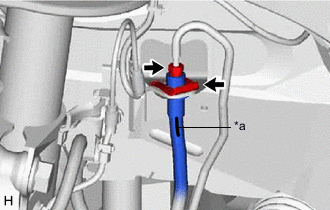

    1. A00YNNRC01
      *a Identification Mark

      Install a new clip to the front flexible hose.

      Note


      • Install the clip as far as it will go.

      • When installing the front flexible hose, face the identification mark to the outside of the vehicle.

    2. Using a union nut wrench, connect the brake tube to the front flexible hose while holding the front flexible hose with a wrench.

      Torque:
      15.2 N*m  { 155 kgf*cm, 11 ft.*lbf }

      Note


      • Do not bend or damage the brake tube.

      • Do not allow any foreign matter such as dirt or dust to enter the brake tube from the connecting parts.

      • Use the formula to calculate special torque values for situations where the union nut wrench is combined with a torque wrench.

        Click here

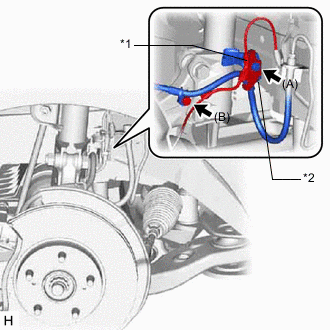

    3. A00YPGIC01
      *1 Front Speed Sensor Bracket
      *2 Front Flexible Hose Bracket

      Install the front flexible hose to the steering knuckle with the bolt (B).

      Torque:
      29 N*m  { 296 kgf*cm, 21 ft.*lbf }

    4. Install the front flexible hose bracket and front speed sensor bracket to the absorber bracket with the bolt (A).

      Torque:
      29 N*m  { 296 kgf*cm, 21 ft.*lbf }

      Note

      Install the front flexible hose bracket first and then the front speed sensor bracket.

    5. Connect the front flexible hose to the front disc brake cylinder assembly with a new union bolt and a new gasket.

      Torque:
      29 N*m  { 296 kgf*cm, 21 ft.*lbf }

      Note

      Install the front flexible hose lock securely into the lock hole in the front disc brake cylinder assembly.

  2. CONNECT CABLE TO AUXILIARY BATTERY NEGATIVE TERMINAL

    Click here

  3. BLEED BRAKE LINE

    Click here

  4. INSTALL FRONT WHEEL

    Torque:
    103 N*m  { 1050 kgf*cm, 76 ft.*lbf }
