BRAKE BOOSTER(for LHD) COMPONENTS

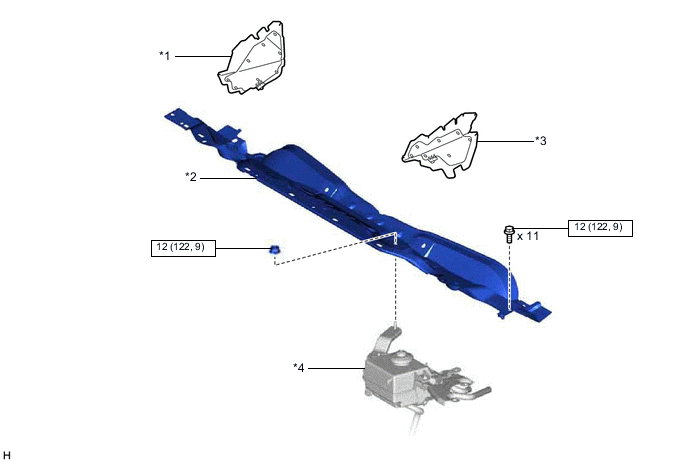

ILLUSTRATION
| *1 | NO. 2 HEATER AIR DUCT SPLASH SHIELD SEAL | *2 | OUTER COWL TOP PANEL |
| *3 | WATER GUARD PLATE LH | *4 | BRAKE MASTER CYLINDER RESERVOIR WITH BRACKET |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
ILLUSTRATION
| *A | w/ Instrument Panel Under Cover | - | - |
| *1 | NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY | - | - |

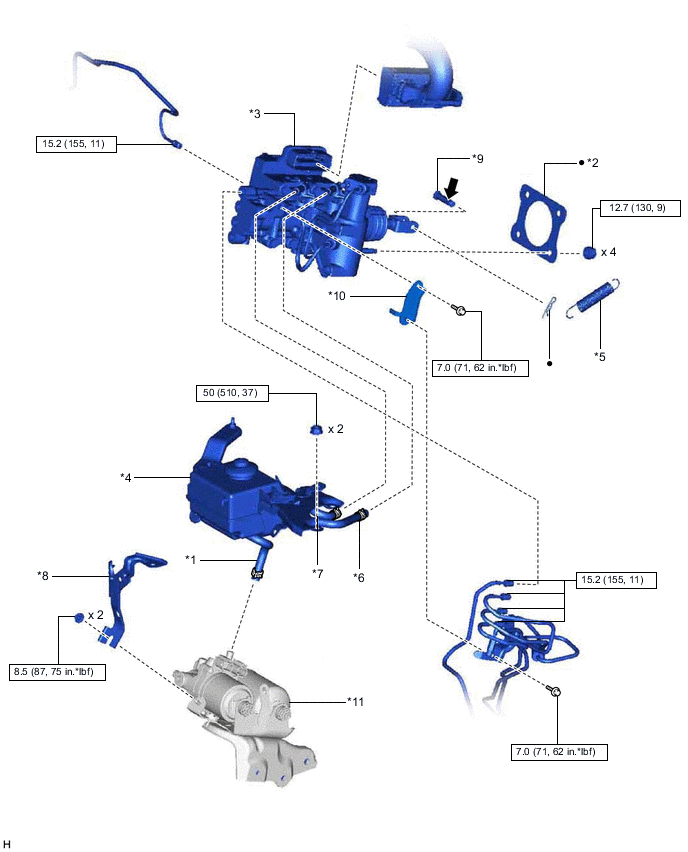

ILLUSTRATION
| *1 | BRAKE ACTUATOR HOSE | *2 | BRAKE BOOSTER GASKET |
| *3 | BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY | *4 | BRAKE MASTER CYLINDER RESERVOIR WITH BRACKET |
| *5 | BRAKE PEDAL RETURN SPRING | *6 | NO. 1 RESERVOIR HOSE |
| *7 | NO. 2 RESERVOIR HOSE | *8 | NO. 5 BRAKE ACTUATOR BRACKET |
| *9 | PUSH ROD PIN | *10 | NO. 2 BRAKE TUBE CLAMP BRACKET |
| *11 | BRAKE BOOSTER PUMP ASSEMBLY | - | - |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
 |
Lithium soap base glycol grease | - | - |
