BRAKE PEDAL STROKE SENSOR(for RHD) COMPONENTS

ILLUSTRATION

A01KRQ8C01
*A w/ Instrument Panel Under Cover - -
*1 NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY - -

ILLUSTRATION

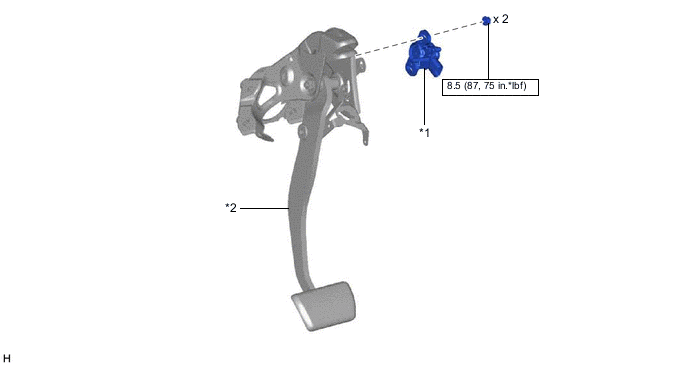

A01KRDBC01
*1 BRAKE PEDAL STROKE SENSOR ASSEMBLY *2 BRAKE PEDAL SUPPORT ASSEMBLY
A01KTGQ N*m (kgf*cm, ft.*lbf): Specified torque - -
