TIRE AND WHEEL SYSTEM INSPECTION

PROCEDURE


  1. INSPECT TIRES


    1. Check the tires for wear and proper inflation pressure.

      Cold Tire Inflation Pressure
      Tire Size Front/Rear
      For driving at under 160 km/h (100 mph) For driving at over 160 km/h (100 mph)
      195/65R15 91H

      230 kPa (2.3 kgf/cm2, 33 psi)

      240 kPa (2.4 kgf/cm2, 35 psi)

      260 kPa (2.6 kgf/cm2, 38 psi)

      270 kPa (2.7 kgf/cm2, 39 psi)
      205/55R16 91V*1

      230 kPa (2.3 kgf/cm2, 33 psi)

      260 kPa (2.6 kgf/cm2, 38 psi)
      205/55R16 91V*2

      230 kPa (2.3 kgf/cm2, 33 psi)

      250 kPa (2.5 kgf/cm2, 36 psi)*3

      260 kPa (2.6 kgf/cm2, 38 psi)
      225/45R17 91W

      230 kPa (2.3 kgf/cm2, 33 psi)

      260 kPa (2.6 kgf/cm2, 38 psi)

      *1: w/o ECO tire pressure label

      *2: w/ ECO tire pressure label

      *3: ECO pressure

      Note

      For 195/65R15 91H tires, 2 different values of pressure are available. Refer to the tire pressure label before adjusting the tire inflation pressure.

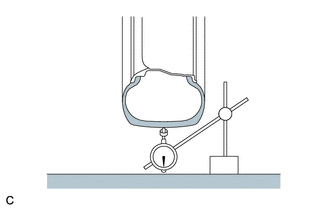

    2. A01KS8K

      Using a dial indicator, check the runout of the tires.

      Maximum Tire Runout
      1.4 mm (0.0551 in.)

  2. ROTATE TIRES

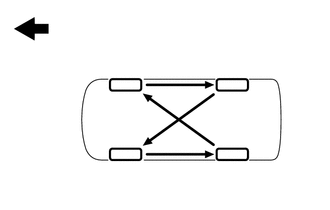

    1. A01KSXJC03
      A01KRLR Front

      Rotate the tires as shown in the illustration.

      Torque:
      103 N*m  { 1050 kgf*cm, 76 ft.*lbf }

  3. INSPECT AND ADJUST WHEEL BALANCE

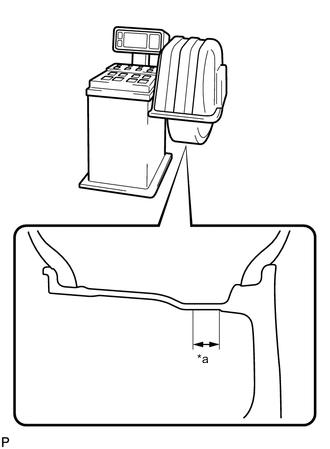

    1. A01KTVWC01
      *a 25 mm (0.984 in.)

      Inspect and adjust the off-the-car balance.

      Maximum Wheel Imbalance
      8.0 g (0.0176 lb)

      Note


      • Use a cleaning detergent to remove dirt, oil and water from the surface where the balance weight is to be adhered.

      • Do not touch the adhesive surface of the balance weight.

      • Adhere a stick-on type balance weight to the flat surface*a shown in the illustration.

      • Push the balance weight with your finger to securely adhere it to the desired position.

      • Do not reuse balance weights.

      Tech Tips


      • Use clip-on type balance weights for the inner side, and stick-on type balance weights for the outer side.

      • If the tires vibrate even after the off-the-car balance adjustment, adjust the wheel balance with on-the-car balancing as necessary.

  4. INSPECT FRONT AXLE HUB

    Click here

  5. INSPECT REAR AXLE HUB

    Click here
