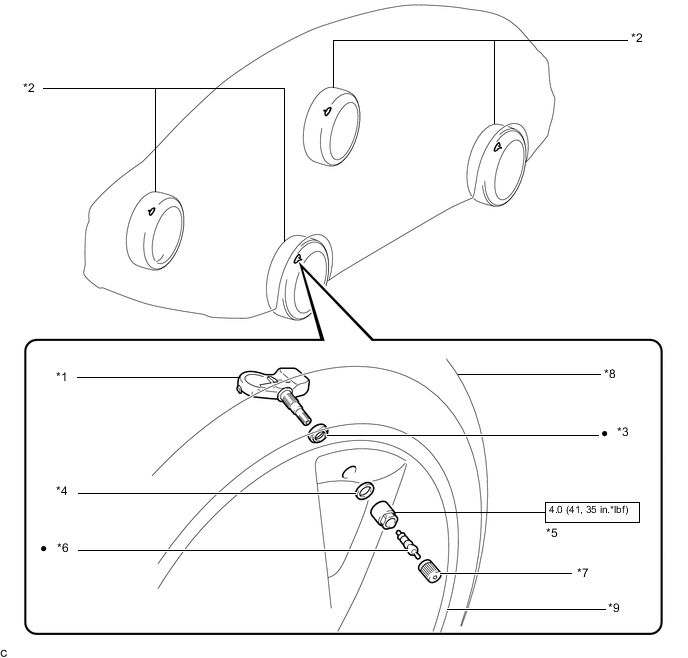

TIRE PRESSURE WARNING VALVE COMPONENTS
ILLUSTRATION
| *1 | TIRE PRESSURE WARNING VALVE AND TRANSMITTER | *2 | WHEEL ASSEMBLY |
| *3 | GROMMET | *4 | WASHER |
| *5 | NUT | *6 | VALVE CORE |
| *7 | TIRE VALVE CAP | *8 | TIRE |
| *9 | DISC WHEEL | - | - |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
