TIRE PRESSURE WARNING RECEIVER(for Hatchback) REMOVAL

PROCEDURE

1. REMOVE BATTERY BOX COVER

   Click here

2. REMOVE DECK BOARD ASSEMBLY (w/ Deck Board)

   Click here

3. REMOVE REAR FLOOR MAT ASSEMBLY

   Click here

4. REMOVE REAR DECK FLOOR BOX (w/ Deck Floor Box)

   Click here

5. REMOVE DECK FLOOR BOX LH (w/ Deck Floor Box)

   Click here

6. REMOVE DECK FLOOR BOX RH (w/ Deck Floor Box)

   Click here

7. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY (w/ Package Tray Trim)

   Click here

8. REMOVE REAR DECK TRIM COVER

   Click here

9. REMOVE REAR SEAT ASSEMBLY

   Click here

10. REMOVE REAR DOOR SCUFF PLATE RH

    Tech Tips

    Use the same procedure as for the LH side.

    Click here

11. REMOVE REAR UNDER SIDE COVER RH

    Tech Tips

    Use the same procedure as for the LH side.

    Click here

12. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH

    Tech Tips

    Use the same procedure as for the LH side.

    Click here

13. REMOVE REAR SEATBACK HINGE SUB-ASSEMBLY RH

    Tech Tips

    Use the same procedure as for the LH side.

    Click here

14. REMOVE REAR SEAT SIDE GARNISH RH

    Tech Tips

    Use the same procedure as for the LH side.

    Click here

15. REMOVE NO. 2 DECK SIDE TRIM HOOK (for RH Side)

    Tech Tips

    Use the same procedure as for the LH side.

    Click here

16. REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH

    Tech Tips

    Use the same procedure as for the LH side.

    Click here

17. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY RH

    Tech Tips

    Use the same procedure as for the LH side.

    Click here

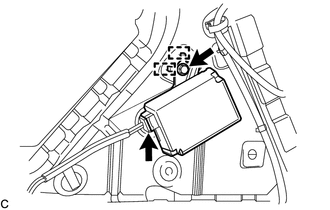

18. REMOVE TIRE PRESSURE WARNING ECU AND RECEIVER




    1.

       Remove the bolt.

    2. Disengage the 2 hooks to remove the tire pressure warning ECU and receiver.

    3. Disconnect the connector from the tire pressure warning ECU and receiver.
