TIRE PRESSURE WARNING SYSTEM TC and CG Terminal Circuit

DESCRIPTION

Tire pressure warning system DTCs can be checked by connecting terminals 13 (TC) and 4 (CG) of the DLC3. The DTCs are indicated by blinking the tire pressure warning light.

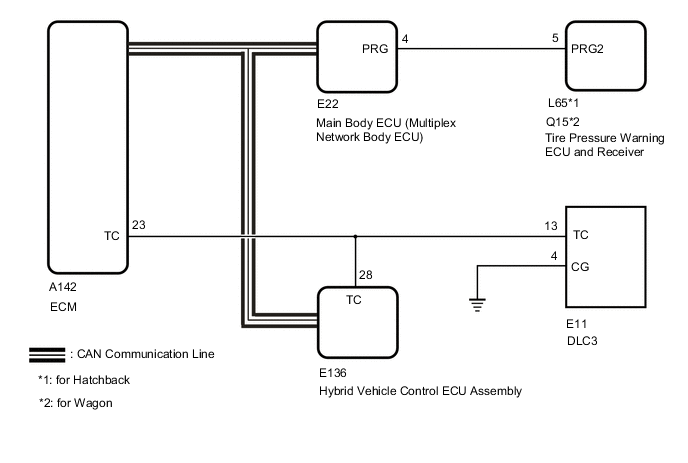

WIRING DIAGRAM

A01KTZRE06

PROCEDURE


  1. CHECK CAN COMMUNICATION SYSTEM


    1. Check for DTCs.

      Click here

      Result
      Result Proceed to
      DTCs are not output. A
      DTCs are output. B

    B

    GO TO CAN COMMUNICATION SYSTEM Click here

    A

  2. CHECK DTC (C2179/79)


    1. Check if DTC C2179/79 is output.

      Click here

      Result
      Result Proceed to
      DTC C2179/79 is not output. A
      DTC C2179/79 is output. B

    B

    GO TO DTC C2179/79 Click here

    A

  3. CHECK HARNESS AND CONNECTOR (TC of DLC3 - ECM AND HYBRID VEHICLE CONTROL ECU ASSEMBLY)


    1. Disconnect the A142 ECM connector.

    2. Disconnect the E136 hybrid vehicle control ECU assembly connector.

    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      E11-13 (TC) - A142-23 (TC) Always Below 1 Ω
      E11-13 (TC) - E136-28 (TC) Always Below 1 Ω
      E11-13 (TC), A142-23 (TC) or E136-28 (TC) - Body ground Always 10 kΩ or higher
      Result
      Proceed to
      OK
      NG

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK

  4. CHECK HARNESS AND CONNECTOR (CG of DLC3 - BODY GROUND)

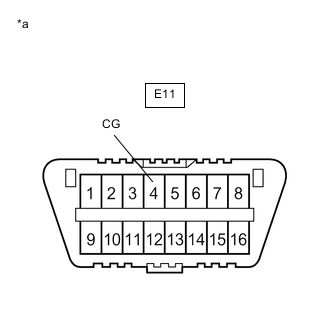

    1. A01KSK2C78
      *a Front view of DLC3

      Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      E11-4 (CG) - Body ground Always Below 1 Ω
      Result
      Proceed to
      OK
      NG

    OK

    PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE Click here

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR
