TIRE PRESSURE WARNING SYSTEM ECU Power Source Circuit

DESCRIPTION

The IG circuit is the power source for the tire pressure warning ECU and receiver.

WIRING DIAGRAM

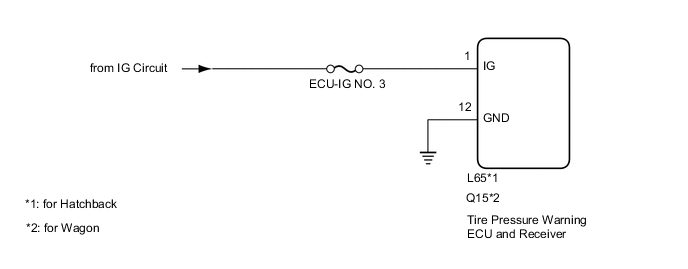

A01G332E12

CAUTION / NOTICE / HINT

Note


  • When replacing the tire pressure warning ECU and receiver, read the transmitter IDs stored in the old ECU using the GTS and write them down before removal.

  • It is necessary to perform initialization after registration Click here of the transmitter IDs into the tire pressure warning ECU and receiver if the ECU has been replaced.

Tech Tips

Inspect the fuses for circuits related to this system before performing the following inspection procedure.

PROCEDURE


  1. CHECK HARNESS AND CONNECTOR (ECU - AUXILIARY BATTERY AND BODY GROUND)


    1. A01G3VQC33
      *A for Hatchback
      *B for Wagon
      *a

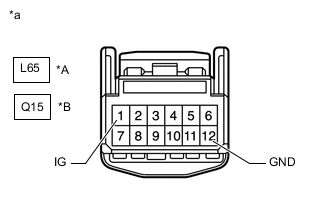

      Front view of wire harness connector

      (to Tire Pressure Warning ECU and Receiver)

      Disconnect the L65 or Q15 tire pressure warning ECU and receiver connector.

    2. Measure the voltage according to the value(s) in the table below.

      Standard Voltage
      for Hatchback:
      Tester Connection Condition Specified Condition
      L65-1 (IG) - Body ground Power switch on (IG) 10 to 16 V
      Power switch off Below 1 V
      for Wagon:
      Tester Connection Condition Specified Condition
      Q15-1 (IG) - Body ground Power switch on (IG) 10 to 16 V
      Power switch off Below 1 V
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      for Hatchback:
      Tester Connection Condition Specified Condition
      L65-12 (GND) - Body ground Always Below 1 Ω
      for Wagon:
      Tester Connection Condition Specified Condition
      Q15-12 (GND) - Body ground Always Below 1 Ω
      Result
      Proceed to
      OK
      NG

    OK
    NG
