TIRE PRESSURE WARNING RESET SWITCH REMOVAL

PROCEDURE

1. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY

   Click here

2. REMOVE TIRE PRESSURE WARNING RESET SWITCH




   1.

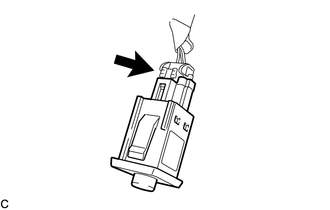

      Disengage the 2 claws to remove the tire pressure warning reset switch.

   2.

      Disconnect the connector from the tire pressure warning reset switch.
