ENGINE UNIT COMPONENTS

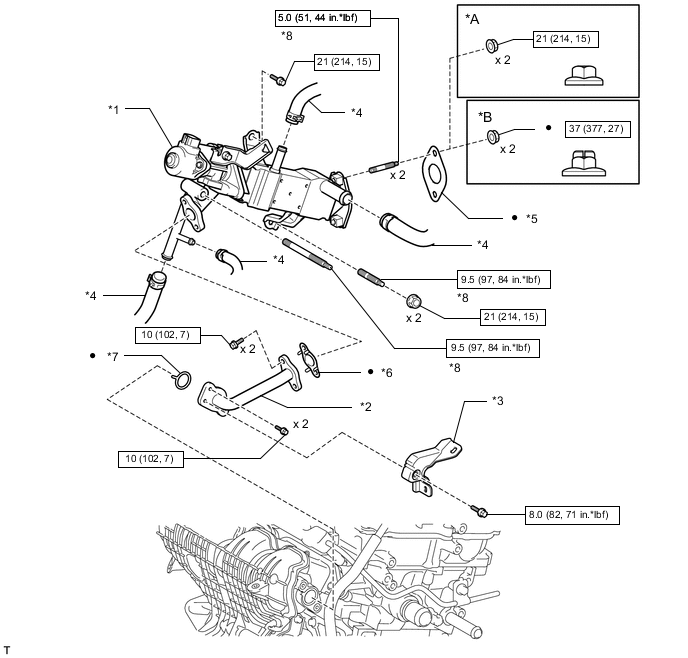

ILLUSTRATION
| *A | Type A | *B | Type B |
| *1 | EGR PIPE ASSEMBLY | *2 | EGR VALVE WITH COOLER ASSEMBLY |
| *3 | WIRE HARNESS SUPPORT | *4 | WATER HOSE |
| *5 | GASKET | *6 | STUD BOLT |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |

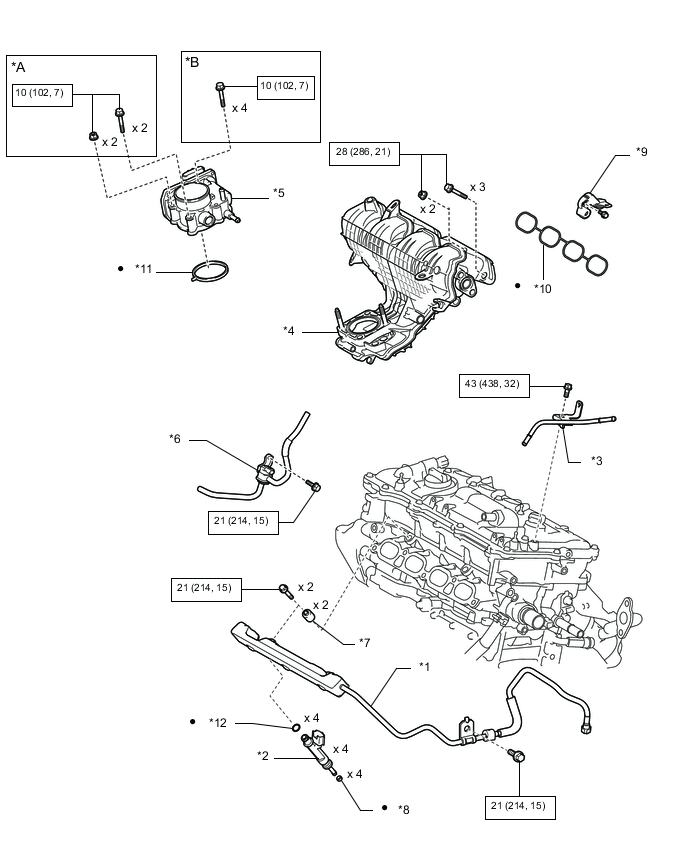

ILLUSTRATION
| *A | Type A | *B | Type B |
| *1 | FUEL DELIVERY PIPE SUB-ASSEMBLY | *2 | FUEL INJECTOR ASSEMBLY |
| *3 | FUEL VAPOR FEED PIPE | *4 | INTAKE MANIFOLD |
| *5 | THROTTLE BODY ASSEMBLY | *6 | VACUUM SWITCHING VALVE ASSEMBLY |
| *7 | NO. 1 DELIVERY PIPE SPACER | *8 | INJECTOR VIBRATION INSULATOR |
| *9 | WIRE HARNESS SUPPORT | *10 | NO. 1 INTAKE MANIFOLDTO HEAD GASKET |
| *11 | THROTTLE BODY GASKET | *12 | O-RING |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |

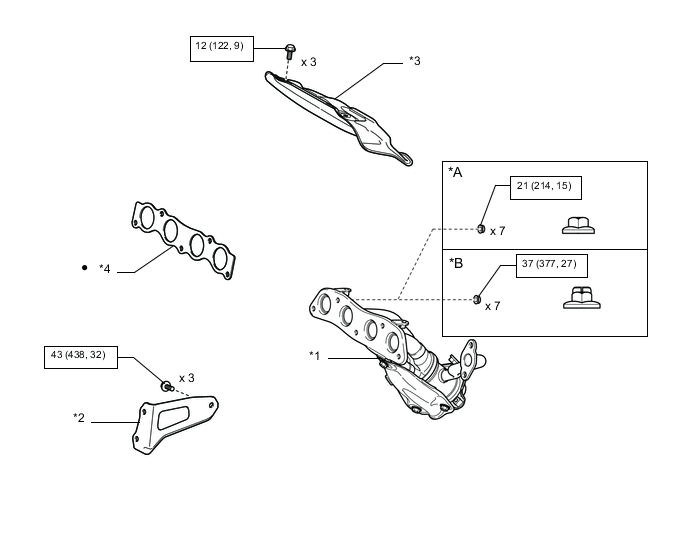

ILLUSTRATION
| *A | Type A | *B | Type B |
| *1 | EXHAUST MANIFOLD | *2 | MANIFOLD STAY |
| *3 | NO. 1 EXHAUST MANIFOLD HEAT INSULATOR | *4 | EXHAUST MANIFOLD GASKET |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | N*m (kgf*cm, ft.*lbf): Specified torque |
ILLUSTRATION
| *1 | IGNITION COIL ASSEMBLY | *2 | VENTILATION HOSE |
| *3 | NO. 3 WATER BY-PASS HOSE | *4 | ENGINE OIL LEVEL DIPSTICK |
| *5 | ENGINE OIL LEVEL DIPSTICK GUIDE | *6 | O-RING |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |

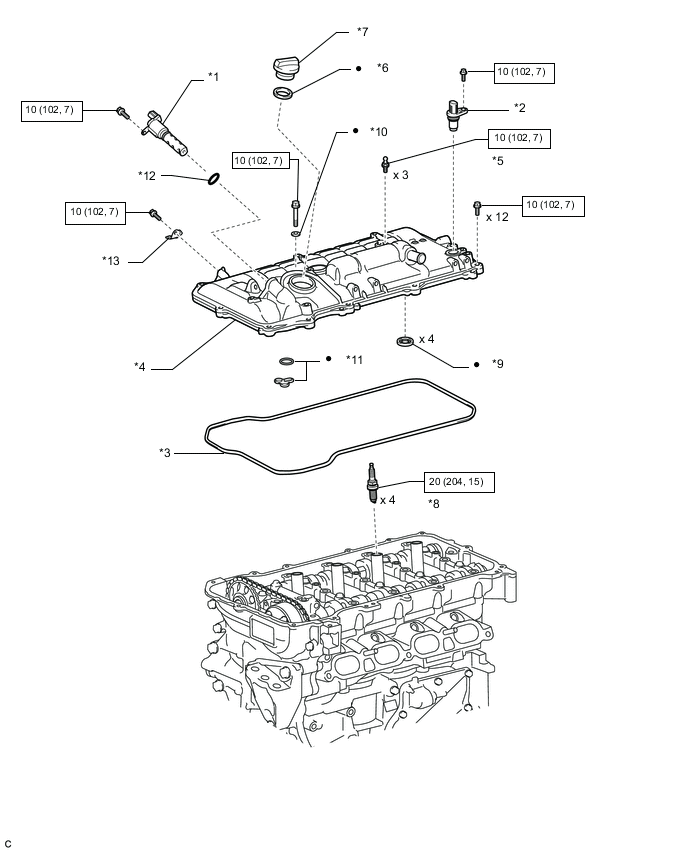

ILLUSTRATION
| *1 | CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY | *2 | CAMSHAFT POSITION SENSOR |
| *3 | CYLINDER HEAD COVER GASKET | *4 | CYLINDER HEAD COVER SUB-ASSEMBLY |
| *5 | ENGINE COVER JOINT BOLT | *6 | OIL FILLER CAP GASKET |
| *7 | OIL FILLER CAP SUB-ASSEMBLY | *8 | SPARK PLUG |
| *9 | SPARK PLUG TUBE GASKET | *10 | SEAL WASHER |
| *11 | GASKET | *12 | O-RING |
| *13 | WIRING HARNESS CLAMP BRACKET | - | - |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |

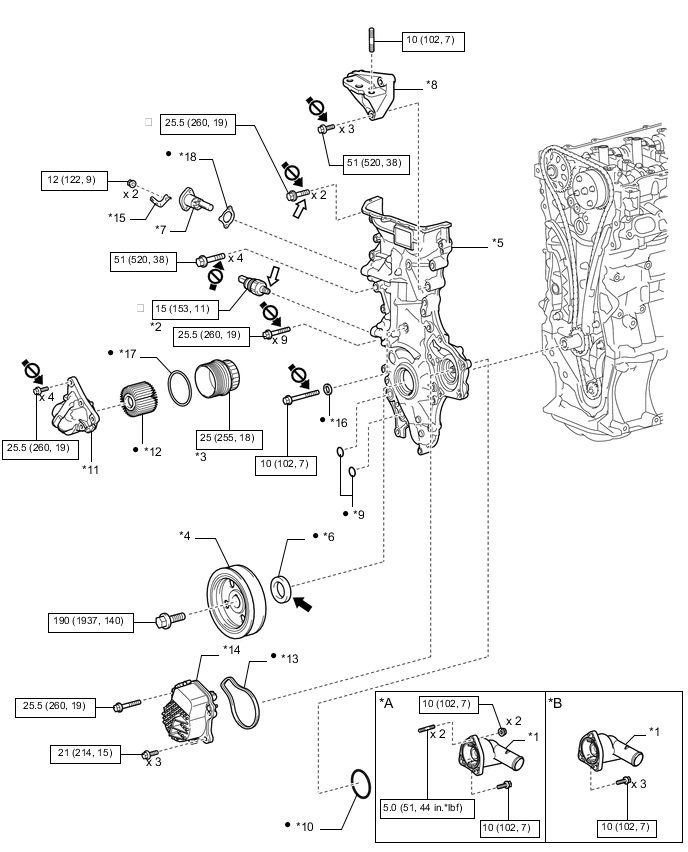

ILLUSTRATION
| *A | Type A | *B | Type B |
| *1 | WATER INLET SUB-ASSEMBLY | *2 | ENGINE OIL PRESSURE SWITCH ASSEMBLY |
| *3 | OIL FILTER CAP ASSEMBLY | *4 | CRANKSHAFT PULLEY |
| *5 | TIMING CHAIN COVER SUB-ASSEMBLY | *6 | TIMING CHAIN COVER OIL SEAL |
| *7 | NO. 1 CHAIN TENSIONER ASSEMBLY | *8 | ENGINE MOUNTING BRACKET RH |
| *9 | OIL FILTER BRACKET O-RING | *10 | NO. 2 WATER INLET HOUSING GASKET |
| *11 | OIL FILTER BRACKET | *12 | OIL FILTER ELEMENT |
| *13 | WATER PUMP GASKET | *14 | ENGINE WATER PUMP ASSEMBLY |
| *15 | BRACKET | *16 | SEAL WASHER |
| *17 | O-RING | *18 | GASKET |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
 |
MP grease |  |
Adhesive 1324 |
 |
Do not apply lubricants to the threaded parts | ★ | Precoated part |

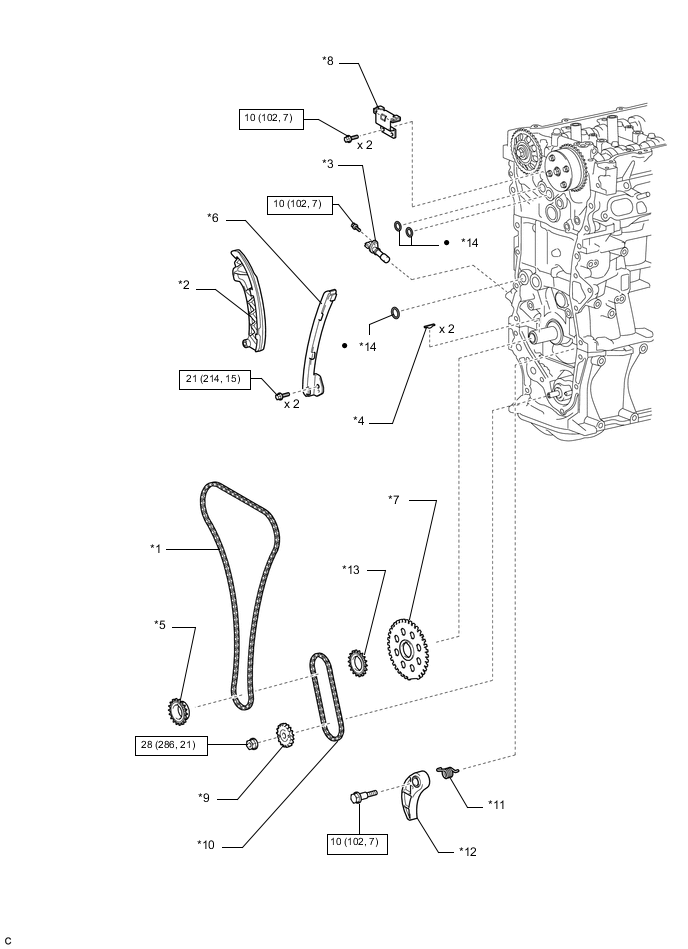

ILLUSTRATION
| *1 | CHAIN SUB-ASSEMBLY | *2 | CHAIN TENSIONER SLIPPER |
| *3 | CRANKSHAFT POSITION SENSOR | *4 | CRANKSHAFT TIMING GEAR KEY |
| *5 | CRANKSHAFT TIMING SPROCKET | *6 | NO. 1 CHAIN VIBRATION DAMPER |
| *7 | NO. 1 CRANKSHAFT POSITION SENSOR PLATE | *8 | NO. 2 CHAIN VIBRATION DAMPER |
| *9 | OIL PUMP DRIVE SHAFT GEAR | *10 | NO. 2 CHAIN SUB-ASSEMBLY |
| *11 | CHAIN DAMPER SPRING | *12 | CHAIN TENSIONER PLATE |
| *13 | OIL PUMP DRIVE GEAR | *14 | O-RING |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |

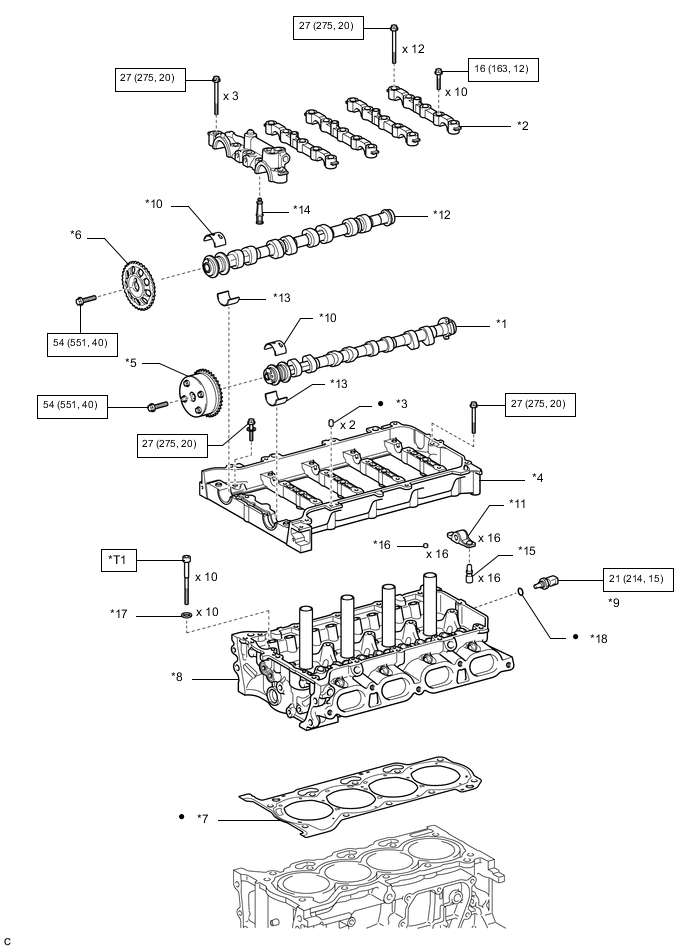

ILLUSTRATION
| *1 | CAMSHAFT | *2 | CAMSHAFT BEARING CAP |
| *3 | CAMSHAFT HOUSING STRAIGHT PIN | *4 | CAMSHAFT HOUSING SUB-ASSEMBLY |
| *5 | CAMSHAFT TIMING GEAR ASSEMBLY | *6 | CAMSHAFT TIMING SPROCKET |
| *7 | CYLINDER HEAD GASKET | *8 | CYLINDER HEAD SUB-ASSEMBLY |
| *9 | ENGINE COOLANT TEMPERATURE SENSOR | *10 | NO. 1 CAMSHAFT BEARING |
| *11 | NO. 1 VALVE ROCKER ARM SUB-ASSEMBLY | *12 | NO. 2 CAMSHAFT |
| *13 | NO. 2 CAMSHAFT BEARING | *14 | OIL CONTROL VALVE FILTER |
| *15 | VALVE LASH ADJUSTER ASSEMBLY | *16 | VALVE STEM CAP |
| *17 | PLATE WASHER | *18 | GASKET |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
| *T1 | 1st: 49 (500, 36) 2nd: Turn 90° 3rd: Turn 45° |
- | - |

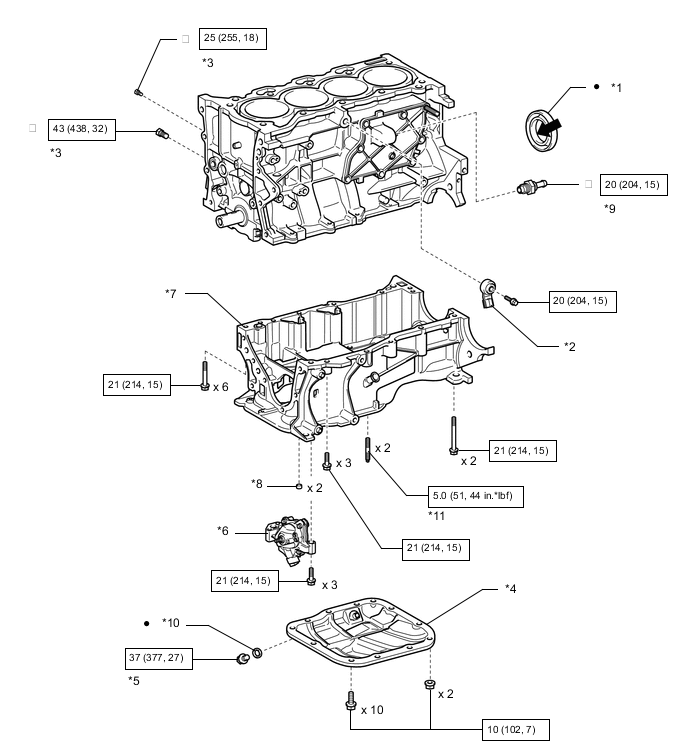

ILLUSTRATION
| *1 | REAR ENGINE OIL SEAL | *2 | KNOCK CONTROL SENSOR |
| *3 | NO. 1 TAPER SCREW PLUG | *4 | NO. 2 OIL PAN SUB-ASSEMBLY |
| *5 | OIL PAN DRAIN PLUG | *6 | OIL PUMP ASSEMBLY |
| *7 | STIFFENING CRANKCASE ASSEMBLY | *8 | STIFFENING CRANKCASE RING PIN |
| *9 | VENTILATION VALVE SUB-ASSEMBLY | *10 | GASKET |
| *11 | STIFFENING CRANKCASE STUD BOLT | - | - |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
| |
MP grease | ★ | Precoated part |
