COMBINATION SWITCH REMOVAL

PROCEDURE

1. REMOVE LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL

   Click here

2. REMOVE UPPER CONSOLE PANEL

   Click here

3. REMOVE COMBINATION SWITCH ASSEMBLY



   1.

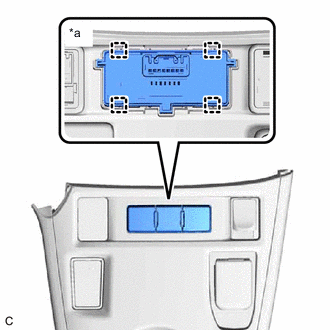

      *a	Bottom Side

      Disengage the 4 claws and remove the combination switch assembly from the No. 2 lower instrument panel finish panel.
