TIRE PRESSURE WARNING SYSTEM PARTS LOCATION
ILLUSTRATION

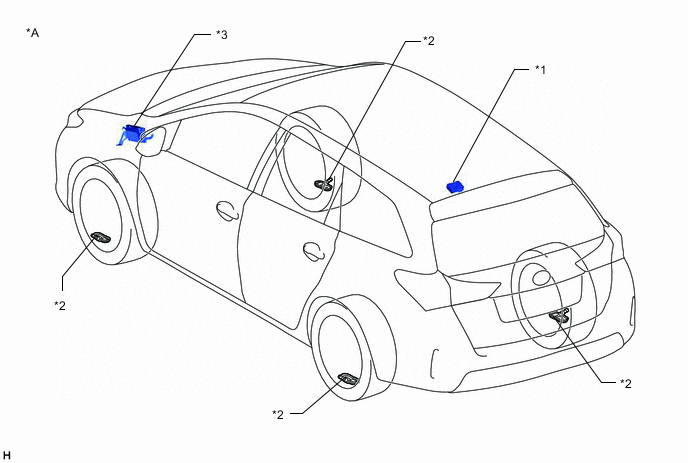

| *A | for Hatchback | - | - |
| *1 | TIRE PRESSURE WARNING ECU AND RECEIVER | *2 | TIRE PRESSURE WARNING VALVE AND TRANSMITTER |
| *3 | ECM | - | - |
ILLUSTRATION

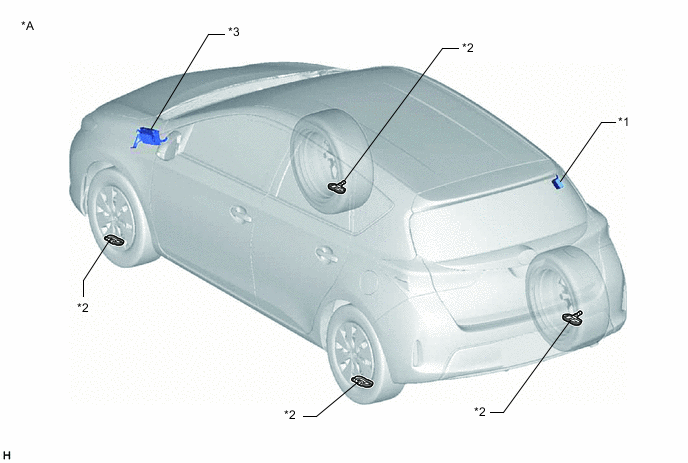

| *A | for Wagon | - | - |
| *1 | TIRE PRESSURE WARNING ECU AND RECEIVER | *2 | TIRE PRESSURE WARNING VALVE AND TRANSMITTER |
| *3 | ECM | - | - |
ILLUSTRATION

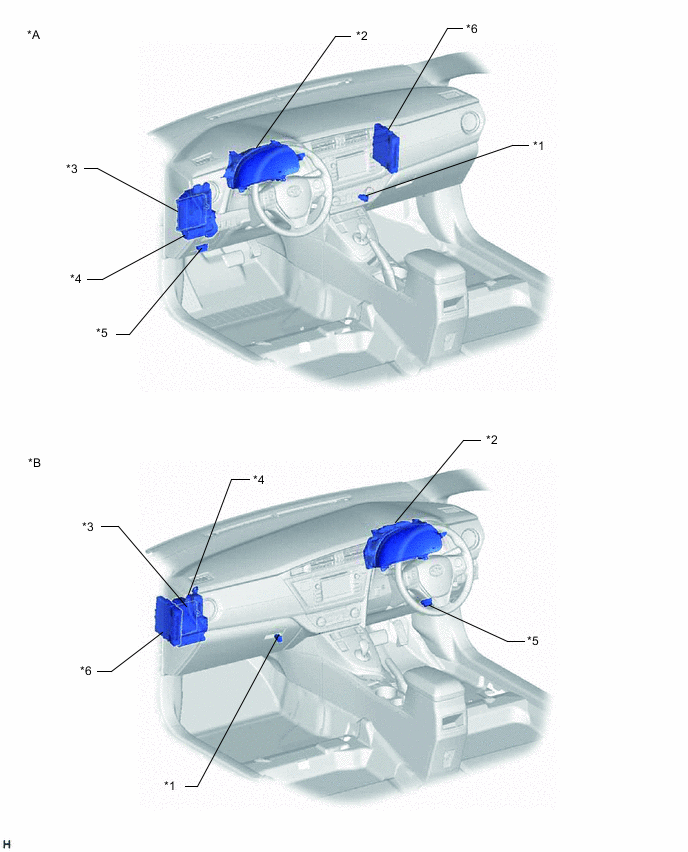

| *A | for LHD | *B | for RHD |
| *1 | TIRE PRESSURE WARNING RESET SWITCH | *2 | COMBINATION METER ASSEMBLY - TIRE PRESSURE WARNING LIGHT |
| *3 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *4 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-IG NO. 3 FUSE |
| *5 | DLC3 | *6 | HYBRID VEHICLE CONTROL ECU ASSEMBLY |
