ECM REMOVAL

PROCEDURE


  1. PRECAUTION

    Note


    • After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

      Click here

    • If the ECM has been struck or dropped, replace it.

    • Perform the Vehicle Identification Number (VIN) registration when replacing the ECM.

      Click here

  2. REMOVE INVERTER WITH CONVERTER ASSEMBLY

    Click here

  3. SEPARATE INVERTER RESERVE TANK ASSEMBLY


    1. A01KTO7

      Remove the 2 bolts and separate the inverter reserve tank assembly.

  4. REMOVE ECM


    1. Remove the No. 1 relay block cover.

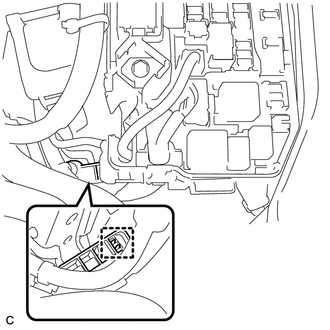

    2. A01KSBI

      Separate the wire harness clamp.

    3. A01KTQQ

      Disengage the 2 claws, push up the engine room wire harness and separate it from the No. 1 engine room relay block and No. 1 junction block assembly.

    4. Disconnect the 2 ECM connectors.

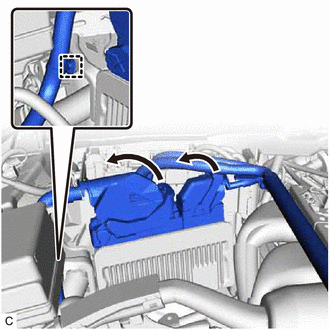

      1. A01KR5G

        Disconnect the wire harness clamp.

      2. Push the locks on the 2 levers, then raise the 2 levers, and disconnect the 2 ECM connectors.

        Note

        After disconnecting the connectors, make sure that dirt, water or other foreign matter does not contact the connecting parts of the connectors.

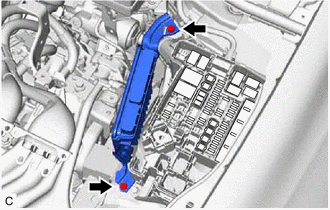

    5. A01KT0P

      Remove the 2 bolts and ECM.

    6. Remove the 4 screws and 2 ECM brackets.
