ECM REMOVAL

PROCEDURE


  1. PRECAUTION

    Note

    After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notice before proceeding with work.

    Click here

  2. REMOVE INVERTER WITH CONVERTER ASSEMBLY

    Click here

  3. SEPARATE INVERTER RESERVE TANK ASSEMBLY


    1. A01G2R7

      Remove the 2 bolts and separate the inverter reserve tank assembly.

  4. REMOVE ECM


    1. Remove the No. 1 relay block cover.

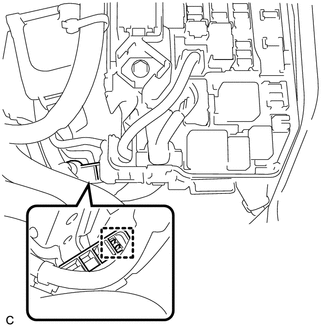

    2. A01G3J3

      Separate the wire harness clamp.

    3. A01G2Z0

      Disengage the 2 claws, push up the engine room wire harness and separate it from the No. 1 engine room relay block and No. 1 junction block assembly.

    4. Disconnect the 2 ECM connectors.


      1. A01G361

        Disconnect the wire harness clamp.

      2. Push the locks on the 2 levers, then raise the 2 levers, and disconnect the 2 ECM connectors.

        Note

        After disconnecting the connectors, make sure that dirt, water or other foreign matter does not contact the connecting parts of the connectors.

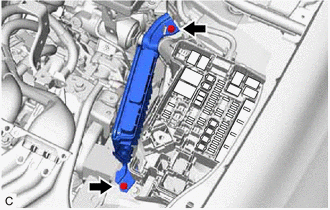

    5. A01G3YF

      Remove the 2 bolts and ECM.

    6. Remove the 4 screws and 2 ECM brackets.
