SFI SYSTEM, Diagnostic DTC:U0293

DTC Code DTC Name
U0293 Lost Communication with Hybrid Vehicle Control System

MONITOR DESCRIPTION

The Controller Area Network (CAN) is a serial data communication system for real-time application. It is a multiplex communication system designed for on-vehicle use that provides a superior communication speed of 500 kbps and a capability to detect malfunctions. Through the combination of the CANH and CANL bus lines, the CAN is able to maintain communication based on differential voltage.

DTC No. Detection Item DTC Detection Condition Trouble Area MIL Memory
U0293 Lost Communication with Hybrid Vehicle Control System Communication with hybrid vehicle control ECU assembly is interrupted (1 trip detection logic).

  • Wire harness

  • Hybrid vehicle control ECU assembly

 Comes on DTC stored

MONITOR STRATEGY

Frequency of Operation Continuous

CONFIRMATION DRIVING PATTERN


  1. Connect the GTS to the DLC3.

  2. Turn the power switch on (IG) and turn the GTS on.

  3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).

  4. Turn the power switch off and wait for at least 30 seconds.

  5. Turn the power switch on (IG) and turn the GTS on.

  6. Wait 5 seconds or more.

  7. Enter the following menus: Powertrain / Engine and ECT / Trouble Codes.

  8. Read the pending DTCs.

    Tech Tips


    • If a pending DTC is output, the system is malfunctioning.

    • If a pending DTC is not output, perform the following procedure.

  9. Enter the following menus: Powertrain / Engine and ECT / Utility / All Readiness.

  10. Input the DTC: U0293.

  11. Check the DTC judgment result.

    GTS Display Description
    NORMAL

    • DTC judgment completed

    • System normal
    ABNORMAL

    • DTC judgment completed

    • System abnormal
    INCOMPLETE

    • DTC judgment not completed

    • Perform driving pattern after confirming DTC enabling conditions
    N/A

    • Unable to perform DTC judgment

    • Number of DTCs which do not fulfill DTC preconditions has reached ECU memory limit

    Tech Tips


    • If the judgment result shows NORMAL, the system is normal.

    • If the judgment result shows ABNORMAL, the system has a malfunction.

    • If the judgment result shows INCOMPLETE or N/A, perform the Confirmation Driving Pattern and check the DTC judgment result again.

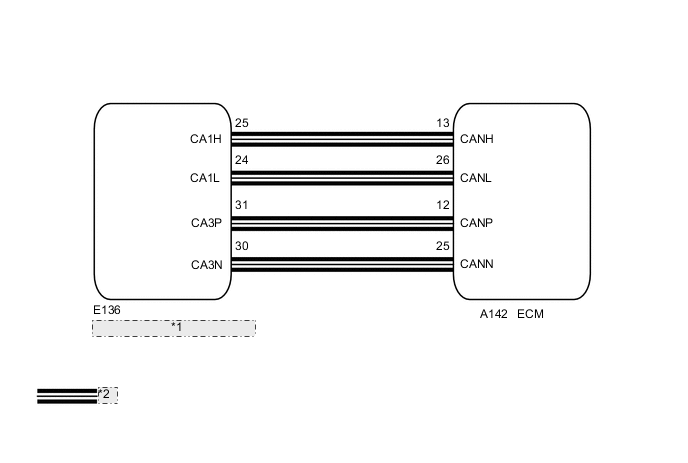

WIRING DIAGRAM

A01KROSE28
*1 Hybrid Vehicle Control ECU Assembly
*2 CAN Bus Line

CAUTION / NOTICE / HINT

Refer to the CAN Communication System.

Click here

Tech Tips

Read freeze frame data using the GTS. The ECM records vehicle and driving condition information as freeze frame data the moment a DTC is stored. When troubleshooting, freeze frame data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air fuel ratio was lean or rich, and other data from the time the malfunction occurred.

PROCEDURE


  1. GO TO CAN COMMUNICATION SYSTEM


    1. Go to CAN Communication system.

      Click here

      Result
      Proceed to
      NEXT

    NEXT

    END
