PROCEDURE


  1. INSPECT NO. 1 PATTERN SELECT SWITCH ASSEMBLY

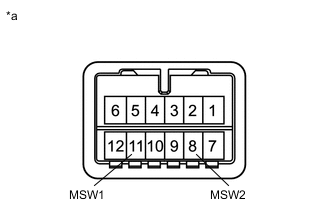

    1. A00YA17C01
      *a

      Component without harness connected

      (No. 1 Pattern Select Switch Assembly)

      Measure the resistance according to the value in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      11 (MSW1) - 8 (MSW2) Pressed Below 1 Ω
      Not pressed 10 kΩ or higher

      If the result is not as specified, replace the No. 1 pattern select switch assembly.
