LIN COMMUNICATION SYSTEM, Diagnostic DTC:B2323

DTC Code DTC Name
B2323 Rear Door RH ECU Communication Stop

DESCRIPTION

This DTC is stored when LIN communication between the power window regulator motor assembly (for rear RH door) and main body ECU (multiplex network body ECU) stops for 10 seconds or more.

DTC No. DTC Detection Condition Trouble Area
B2323 No communication between power window regulator motor assembly (for rear RH door) and main body ECU (multiplex network body ECU) for 10 seconds or more.

  • Power window regulator motor assembly (for rear RH door)

  • Main body ECU (multiplex network body ECU)

  • Instrument panel junction block assembly

  • Wire harness or connector

  • DOOR R/R fuse

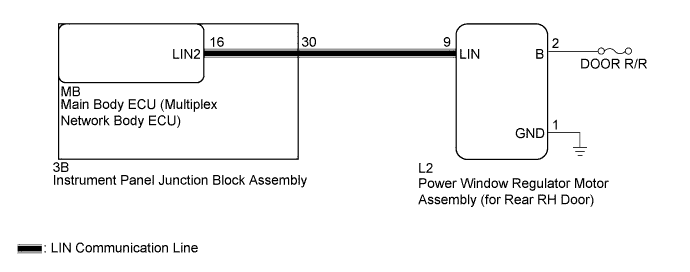

WIRING DIAGRAM

B000NOQE87

INSPECTION PROCEDURE

Note


  • Inspect the fuses for circuits related to this system before performing the following inspection procedure.

  • When a power window regulator motor assembly is replaced or removed and reinstalled, it requires initialization Click here.

  • When using the intelligent tester to troubleshoot with the ignition switch off:

    Connect the intelligent tester to the DLC3, and turn the courtesy switch on and off at 1.5-second intervals until communication between the intelligent tester and vehicle begins.

PROCEDURE


  1. INSPECT INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY


    1. Remove the instrument panel junction block assembly Click here.

      B000ME0E01

    2. Remove the main body ECU (multiplex network body ECU) from the instrument panel junction block assembly.

    3. Measure the resistance according to the value(s) in the table below.

      Tech Tips

      This inspection is to check the LIN line in the instrument panel junction block assembly that connects the wire harness to the built-in main body ECU (multiplex network body ECU).

      Standard Resistance
      Tester Connection Condition Specified Condition
      3B-30 (LIN2) - MB-16 (LIN2) Always Below 1 Ω
      Text in Illustration
      *a

      Component without harness connected

      (Instrument Panel Junction Block Assembly)

      		 *b

      Component without harness connected

      (Instrument Panel Junction Block Assembly)

    NG

    REPLACE INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY Click here

    OK

  2. CHECK HARNESS AND CONNECTOR (INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - POWER WINDOW REGULATOR MOTOR)


    1. Disconnect the L2 power window regulator motor assembly (for rear RH door) connector.

    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      3B-30 (LIN2) - L2-9 (LIN) Always Below 1 Ω
      3B-30 (LIN2) - Body ground Always 10 kΩ or higher

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK

  3. CHECK HARNESS AND CONNECTOR (POWER WINDOW REGULATOR MOTOR - BATTERY, BODY GROUND)


    1. Measure the voltage according to the value(s) in the table below.

      Standard Voltage
      Tester Connection Condition Specified Condition
      L2-2 (B) - Body ground Always 11 to 14 V

    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      L2-1 (GND) - Body ground Always Below 1 Ω

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK

  4. REPLACE POWER WINDOW REGULATOR MOTOR ASSEMBLY (FOR REAR RH DOOR)


    1. Replace the power window regulator motor assembly (for rear RH door) Click here.


    NEXT

  5. CHECK DTC OUTPUT


    1. Clear the DTC Click here.

    2. Check for DTCs.

      OK
      DTC B2323 is not output.

    NG

    REPLACE MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) Click here

    OK

    END (POWER WINDOW REGULATOR MOTOR ASSEMBLY (FOR REAR RH DOOR) WAS DEFECTIVE)
