RADIATOR GRILLE(for Sedan) REMOVAL

PROCEDURE


  1. REMOVE RADIATOR COVER

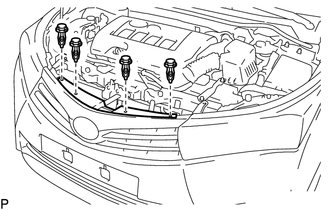

    1. A012GU5

      Remove the 4 clips and radiator cover.

  2. REMOVE RADIATOR GRILLE SUB-ASSEMBLY

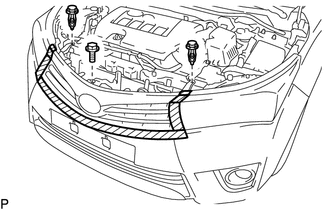

    1. A012K2PC01
      A012F6O Protective Tape

      Put protective tape around the radiator grille sub-assembly.

    2. Remove the bolt and 2 clips.

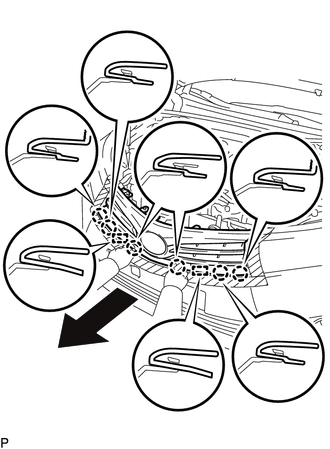

    3. A012M9K

      Disengage the 6 claws and 2 guides to remove the radiator grille sub-assembly as shown in the illustration.

  3. REMOVE HOOD TO RADIATOR GRILLE SEAL

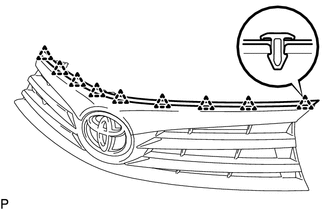

    1. A012J8H

      Disengage the 9 clips to remove the hood to radiator grille seal.

  4. REMOVE UPPER RADIATOR GRILLE

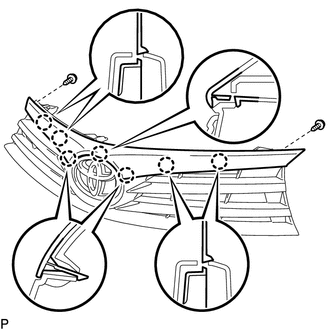

    1. A012KK7

      Remove the 2 screws.

    2. Disengage the 7 claws to remove the upper radiator grille.

  5. REMOVE RADIATOR GRILLE (OR FRONT PANEL) EMBLEM

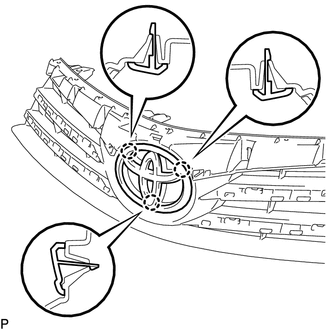

    1. A012J8Z

      Disengage the 3 claws to remove the radiator grille (or front panel) emblem.

  6. REMOVE UPPER RADIATOR GRILLE MOULDING LH

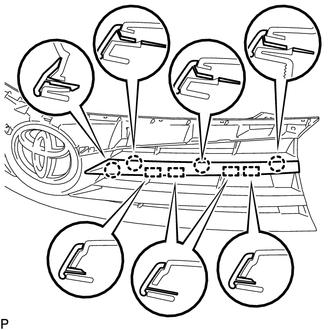

    1. A012HQB

      Disengage the 4 claws and 4 guides to remove the upper radiator grille moulding LH.

  7. REMOVE UPPER RADIATOR GRILLE MOULDING RH

    Tech Tips

    Use the same procedure as for the LH side.

  8. REMOVE CENTER RADIATOR GRILLE MOULDING LH

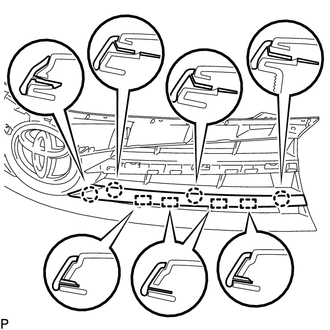

    1. A012F86

      Disengage the 4 claws and 4 guides to remove the center radiator grille moulding LH.

  9. REMOVE CENTER RADIATOR GRILLE MOULDING RH

    Tech Tips

    Use the same procedure as for the LH side.
