REAR LIGHT ASSEMBLY(except Sedan) COMPONENTS

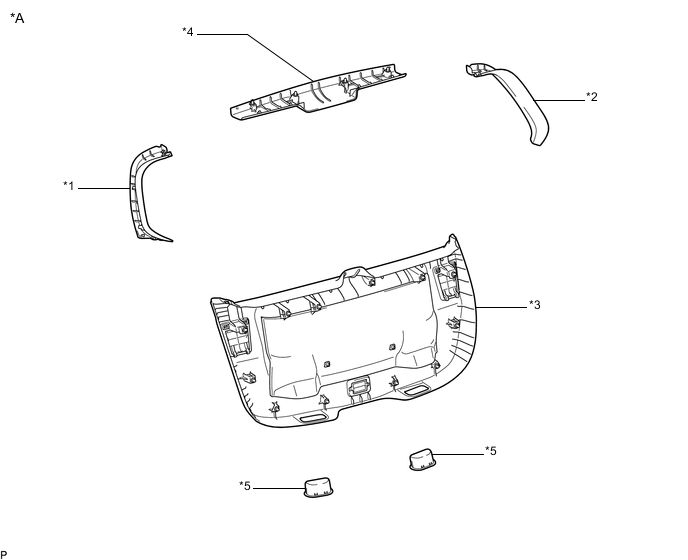

ILLUSTRATION
| *A | for Wagon | - | - |
| *1 | BACK DOOR SIDE GARNISH LH | *2 | BACK DOOR SIDE GARNISH RH |
| *3 | BACK DOOR TRIM PANEL ASSEMBLY | *4 | BACK DOOR UPPER TRIM PANEL ASSEMBLY |
| *5 | DOOR PULL HANDLE | - | - |

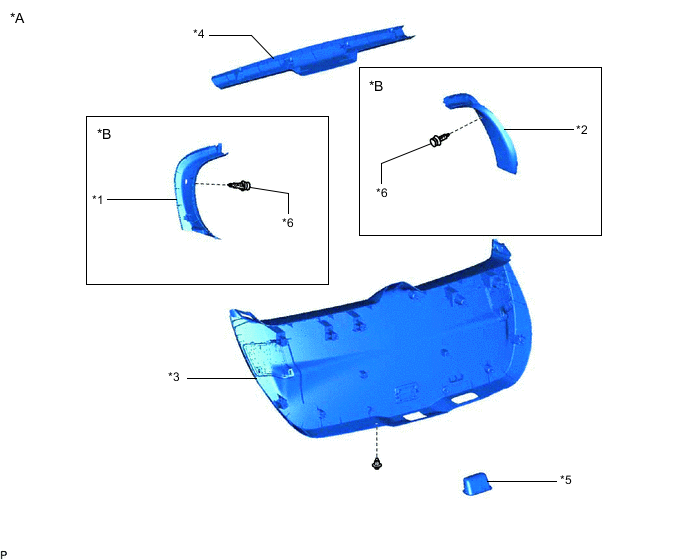

ILLUSTRATION
| *A | for Hatchback | *B | w/ Back Door Side Garnish |
| *1 | BACK DOOR SIDE GARNISH LH | *2 | BACK DOOR SIDE GARNISH RH |
| *3 | BACK DOOR TRIM PANEL ASSEMBLY | *4 | BACK DOOR UPPER TRIM PANEL ASSEMBLY |
| *5 | DOOR PULL HANDLE | - | - |

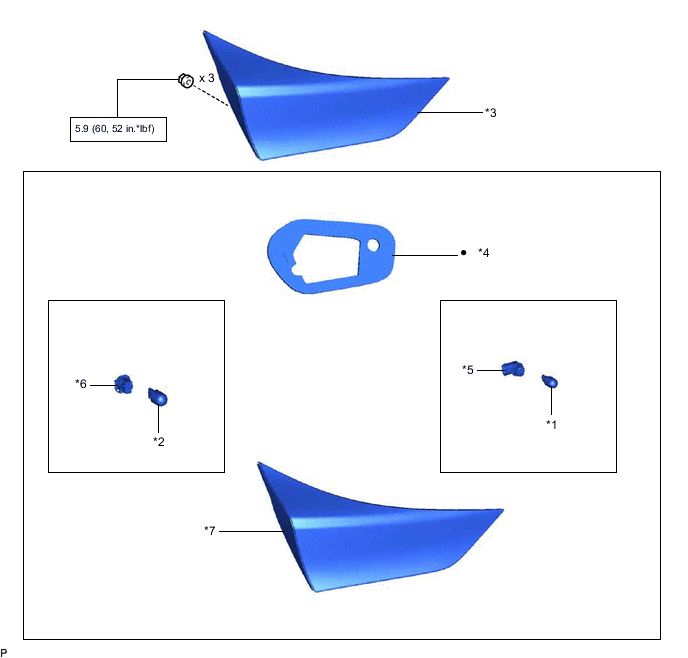

ILLUSTRATION
| *1 | BACK-UP LIGHT BULB | *2 | NO. 1 REAR FOG LIGHT BULB |
| *3 | REAR LIGHT ASSEMBLY | *4 | REAR LIGHT GASKET |
| *5 | BACK-UP LIGHT SOCKET | *6 | NO. 1 REAR FOG LIGHT SOCKET |
| *7 | REAR LIGHT LENS AND BODY | - | - |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
