HEADLIGHT CLEANER ACTUATOR REMOVAL

PROCEDURE


  1. REMOVE HEADLIGHT WASHER COVER LH (for Hatchback, Wagon)

    Click here

  2. REMOVE HEADLIGHT WASHER COVER RH (for Hatchback, Wagon)

    Tech Tips

    Use the same procedure as for the LH side.

  3. REMOVE HEADLIGHT CLEANER WASHER NOZZLE COVER LH (for Sedan)

    Click here

  4. REMOVE HEADLIGHT CLEANER WASHER NOZZLE COVER RH (for Sedan)

    Tech Tips

    Use the same procedure as for the LH side.

  5. REMOVE FRONT BUMPER ASSEMBLY

    for Hatchback, Wagon: Click here

    for Sedan: Click here

  6. REMOVE HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY LH


    1. for Hatchback, Wagon:

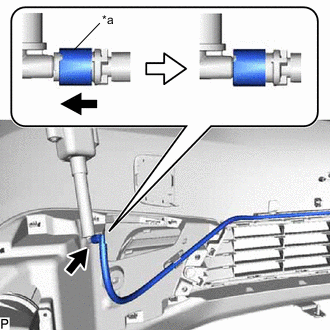

      1. A01M36UC02
        *a Connector Lock

        Release the connector lock as shown in the illustration and disconnect the headlight cleaner hose.

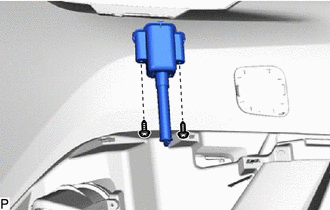

      2. A01LZWI

        Remove the 2 screws and headlight washer actuator sub-assembly LH.

    2. for Sedan:

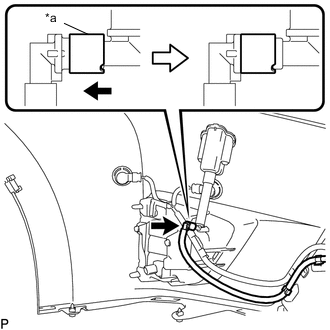

      1. A01M0UNC01
        *a Connector Lock

        Release the connector lock and disconnect the headlight cleaner hose.

      2. A01M0HE

        Remove the 2 screws from the headlight washer actuator sub-assembly LH.

  7. REMOVE HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY RH

    Tech Tips

    Use the same procedure as for the LH side.

  8. REMOVE NO. 2 HEADLIGHT CLEANER CLAMP


    1. for Hatchback, Wagon:

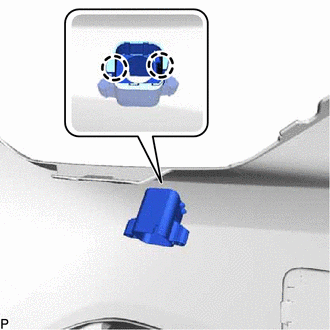

      1. A01LZ85

        Disengage the 2 claws and remove the No. 2 headlight cleaner clamp.

    2. for Sedan:

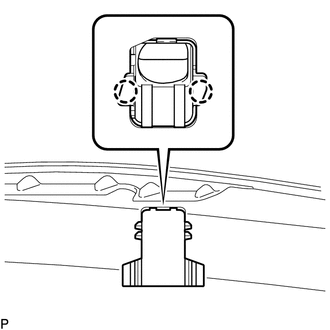

      1. A01LXZ0

        Disengage the 2 claws and remove the No. 2 headlight cleaner clamp.

  9. REMOVE NO. 1 HEADLIGHT CLEANER CLAMP

    Tech Tips

    Use the same procedure as for the No. 2 headlight cleaner clamp.
