HEADLIGHT CLEANER ACTUATOR REMOVAL

PROCEDURE

1. REMOVE HEADLIGHT WASHER COVER LH (for Hatchback, Wagon)

   Click here

2. REMOVE HEADLIGHT WASHER COVER RH (for Hatchback, Wagon)

   Tech Tips

   Use the same procedure for the LH side.

3. REMOVE HEADLIGHT CLEANER WASHER NOZZLE COVER LH (for Sedan)

   Click here

4. REMOVE HEADLIGHT CLEANER WASHER NOZZLE COVER RH (for Sedan)

   Tech Tips

   Use the same procedure for the LH side.

5. REMOVE FRONT BUMPER ASSEMBLY

   for Hatchback, Wagon: Click here

   for Sedan: Click here

6. REMOVE HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY LH




   1. for Hatchback, Wagon:




      1.

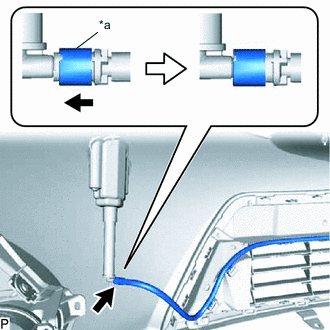

         *a	Connector Lock

         Release the connector lock and disconnect the headlight cleaner hose.

      2.

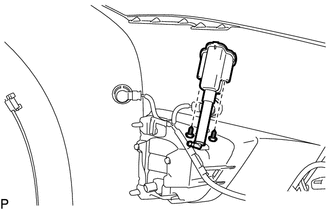

         Remove the 2 screws from the headlight washer actuator sub-assembly LH.

   2. for Sedan:




      1.

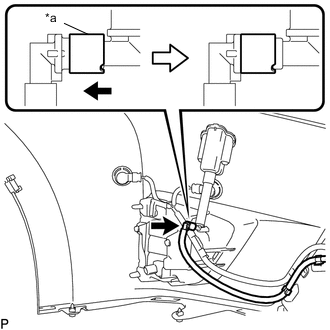

         *a	Connector Lock

         Release the connector lock and disconnect the headlight cleaner hose.

      2.

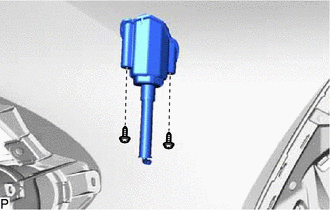

         Remove the 2 screws from the headlight washer actuator sub-assembly LH.

7. REMOVE HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY RH

   Tech Tips

   Use the same procedure for the LH side.

8. REMOVE NO. 2 HEADLIGHT CLEANER CLAMP




   1. for Hatchback, Wagon:




      1.

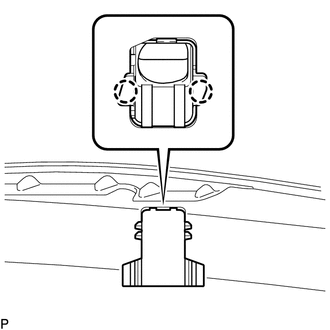

         Disengage the 2 claws and remove the No. 2 headlight cleaner clamp.

   2. for Sedan:




      1.

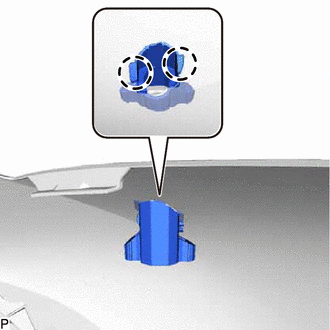

         Disengage the 2 claws and remove the No. 2 headlight cleaner clamp.

9. REMOVE NO. 1 HEADLIGHT CLEANER CLAMP

   Tech Tips

   Use the same procedure for the No. 2 headlight cleaner clamp.
