POWER WINDOW REGULATOR MOTOR(for Sedan Rear Side) INSPECTION

PROCEDURE


  1. INSPECT REAR DOOR WINDOW REGULATOR ASSEMBLY LH

    CAUTION:

    Prevent any part of your body from being caught during inspection.

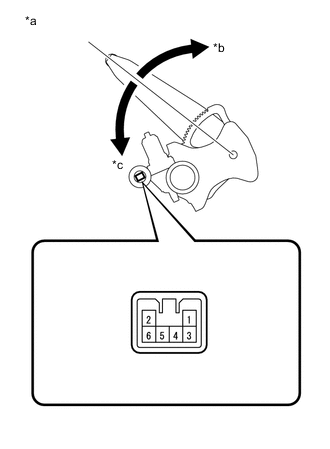

    1. A012HRKC01
      *a

      Component without harness connected

      (Rear Door Window Regulator Assembly LH)
      *b Up
      *c Down

      Apply battery voltage to the motor connector according to the table below.

      Note

      Do not apply battery voltage to any terminals except terminals 1 and 2.

      Standard
      Measurement Condition Specified Condition

      Battery positive (+) → Terminal 1

      Battery negative (-) → Terminal 2

      		 Arm of window regulator rotates clockwise (Up)

      Battery positive (+) → Terminal 2

      Battery negative (-) → Terminal 1

      		 Arm of window regulator rotates counterclockwise (Down)

      If the result is not as specified, replace the rear door window regulator assembly LH.

  2. INSPECT REAR DOOR WINDOW REGULATOR ASSEMBLY RH

    CAUTION:

    Prevent any part of your body from being caught during inspection.

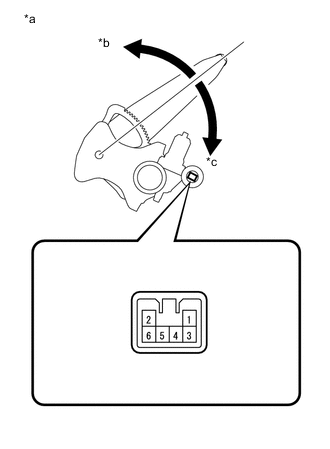

    1. A012N59C01
      *a

      Component without harness connected

      (Rear Door Window Regulator Assembly RH)
      *b Up
      *c Down

      Apply battery voltage to the motor connector according to the table below.

      Note

      Do not apply battery voltage to any terminals except terminals 1 and 2.

      Standard
      Measurement Condition Specified Condition

      Battery positive (+) → Terminal 2

      Battery negative (-) → Terminal 1

      		 Arm of window regulator rotates clockwise (Down)

      Battery positive (+) → Terminal 1

      Battery negative (-) → Terminal 2

      		 Arm of window regulator rotates counterclockwise (Up)

      If the result is not as specified, replace the rear door window regulator assembly RH.
