ROOF HEADLINING(for Sedan) REASSEMBLY

PROCEDURE


  1. INSTALL NO. 1 HEADLINING LIGHT CASE

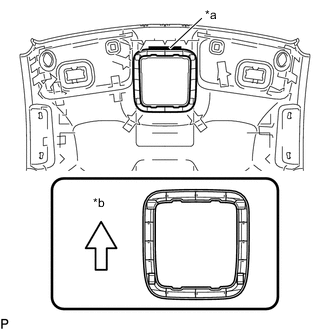

    1. A01TBWAC01
      *a Marking
      *b Front

      Align the new No. 1 headlining light case with the marking on the roof headlining assembly and install it using hot-melt glue as shown in the illustration.

  2. INSTALL NO. 2 HEADLINING LIGHT CASE (w/ Vanity Light)

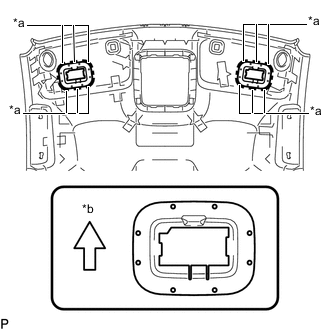

    1. A01TC71C01
      *a Marking
      *b Front

      Align the 2 new No. 2 headlining light cases with the markings on the roof headlining assembly and install them using hot-melt glue as shown in the illustration.

  3. INSTALL NO. 1 ROOF WIRE


    1. Pass the No. 1 roof wire through the front tab of the roof headlining assembly.

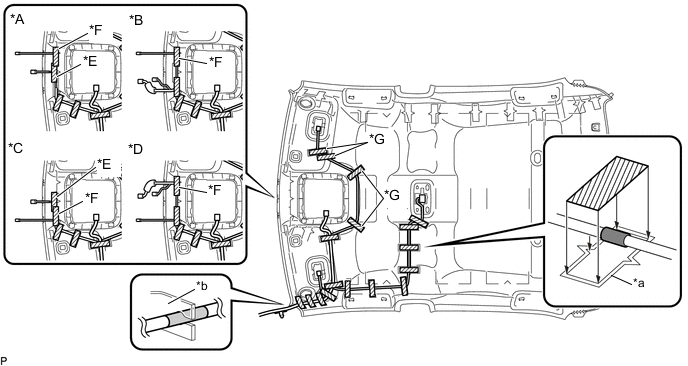

      A01TCM8C01
      *A for LHD without Pre-crash Safety System *B for LHD with Pre-crash Safety System
      *C for RHD without Pre-crash Safety System *D for RHD with Pre-crash Safety System
      *E w/ EC Mirror *F w/ Rain Sensor
      *G w/ Vanity Light - -
      *a Marking *b Front Tab
      A01TC4W Positioning Tape (A) A01TBKE Positioning Tape (B)
      A01TCKT Adhesive Tape - -

    2. Align the positioning tape (A) on the front part of the No. 1 roof wire with the front tab of the roof headlining assembly.

    3. Align the positioning tape (B) on the No. 1 roof wire with the markings on the roof headlining assembly.

    4. Install the No. 1 roof wire to the roof headlining assembly with adhesive tape.

      Note


      • Apply the tape securely in place.

      • Do not touch the adhesive surface when applying the tape to prevent adhesion failure.

  4. INSTALL NO. 2 ROOF SILENCER PAD


    1. Align the 2 new No. 2 roof silencer pads with the markings on the roof headlining assembly and install them using hot-melt glue as shown in the illustration.

      A01T9O0C01
      *a Marking - -

  5. INSTALL NO. 1 ROOF SILENCER PAD (except Cold Area)


    1. Align the 2 new No. 1 roof silencer pads with the markings on the roof headlining assembly and install them using hot-melt glue as shown in the illustration.

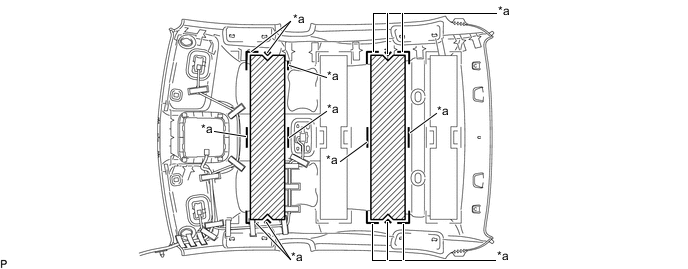

      A01TC2XC01
      *a Marking - -

  6. INSTALL NO. 1 ROOF SILENCER PAD (for Cold Area)


    1. Align the new No. 1 roof silencer pad with the markings on the roof headlining assembly and install it using hot-melt glue as shown in the illustration.

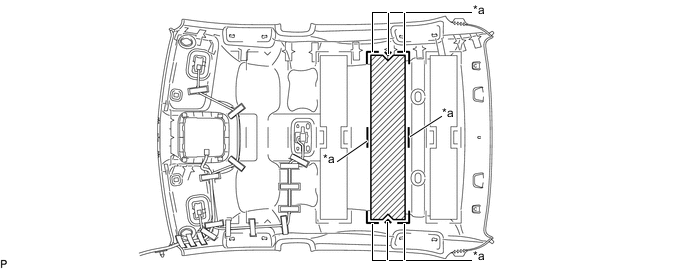

      A01T8K7C01
      *a Marking - -

  7. INSTALL FRONT ROOF SILENCER PAD (except Cold Area)

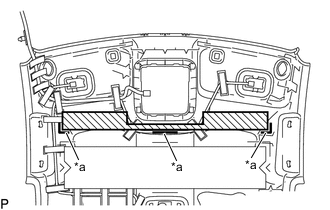

    1. A01TA5ZC01
      *a Marking

      Align the new front roof silencer pad with the markings on the roof headlining assembly and install it using hot-melt glue as shown in the illustration.

  8. INSTALL ROOF SILENCER PAD (for Cold Area)


    1. Remove the release paper from 2 new roof silencer pads.

      Tech Tips

      After removing the release paper, keep the exposed adhesive free from foreign matter.

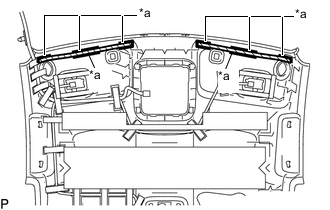

    2. A01TAJ2C01
      *a Marking

      Align the 2 roof silencer pads with the markings on the roof headlining assembly and install them as shown in the illustration.

  9. INSTALL NO. 4 ROOF SILENCER PAD (for Cold Area)


    1. Remove the release paper from a new No. 4 roof silencer pad.

      Tech Tips

      After removing the release paper, keep the exposed adhesive free from foreign matter.

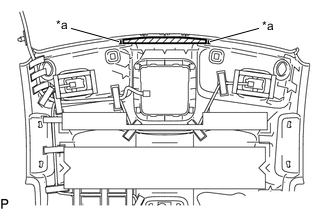

    2. A01T9G5C01
      *a Marking

      Align the No. 4 roof silencer pad with the markings on the roof headlining assembly and install it as shown in the illustration.

  10. INSTALL NO. 1 AMPLIFIER ANTENNA ASSEMBLY

    Click here

  11. INSTALL VANITY LIGHT ASSEMBLY (w/ Vanity Light)

    Click here
