ROOF HEADLINING(for Sedan) COMPONENTS

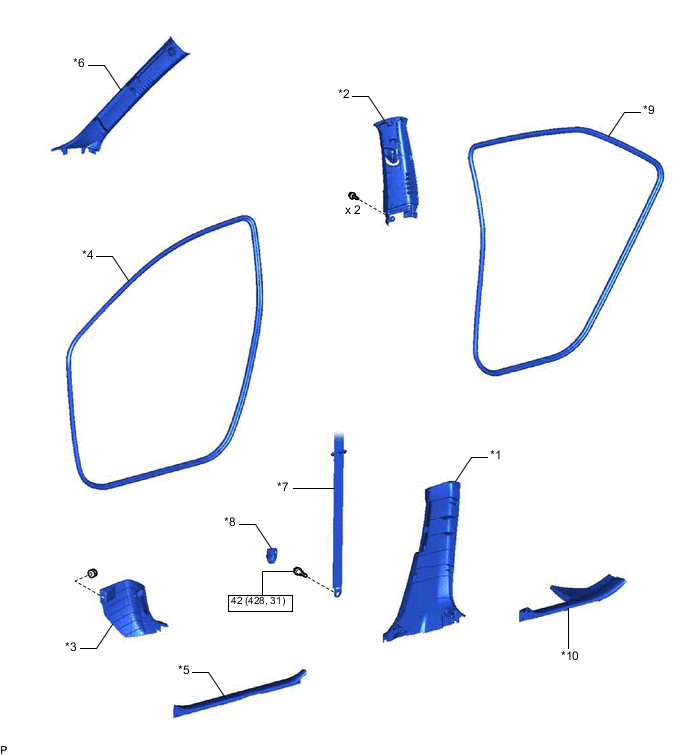

ILLUSTRATION
| *1 | CENTER PILLAR LOWER GARNISH LH | *2 | CENTER PILLAR UPPER GARNISH LH |
| *3 | COWL SIDE TRIM BOARD LH | *4 | FRONT DOOR OPENING TRIM WEATHERSTRIP LH |
| *5 | FRONT DOOR SCUFF PLATE LH | *6 | FRONT PILLAR GARNISH LH |
| *7 | FRONT SEAT OUTER BELT ASSEMBLY LH | *8 | LAP BELT OUTER ANCHOR COVER |
| *9 | REAR DOOR OPENING TRIM WEATHERSTRIP LH | *10 | REAR DOOR SCUFF PLATE LH |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

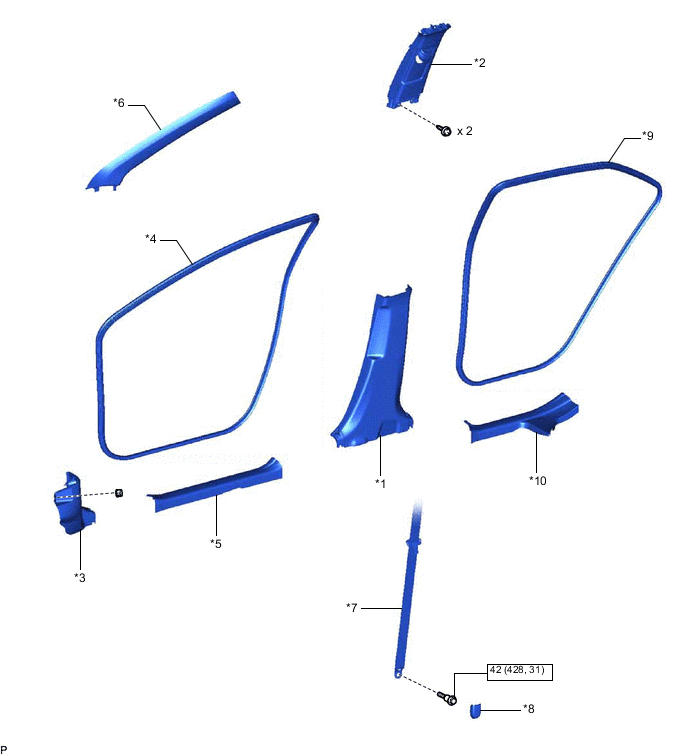

ILLUSTRATION
| *1 | CENTER PILLAR LOWER GARNISH RH | *2 | CENTER PILLAR UPPER GARNISH RH |
| *3 | COWL SIDE TRIM BOARD RH | *4 | FRONT DOOR OPENING TRIM WEATHERSTRIP RH |
| *5 | FRONT DOOR SCUFF PLATE RH | *6 | FRONT PILLAR GARNISH RH |
| *7 | FRONT SEAT OUTER BELT ASSEMBLY RH | *8 | LAP BELT OUTER ANCHOR COVER |
| *9 | REAR DOOR OPENING TRIM WEATHERSTRIP RH | *10 | REAR DOOR SCUFF PLATE RH |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

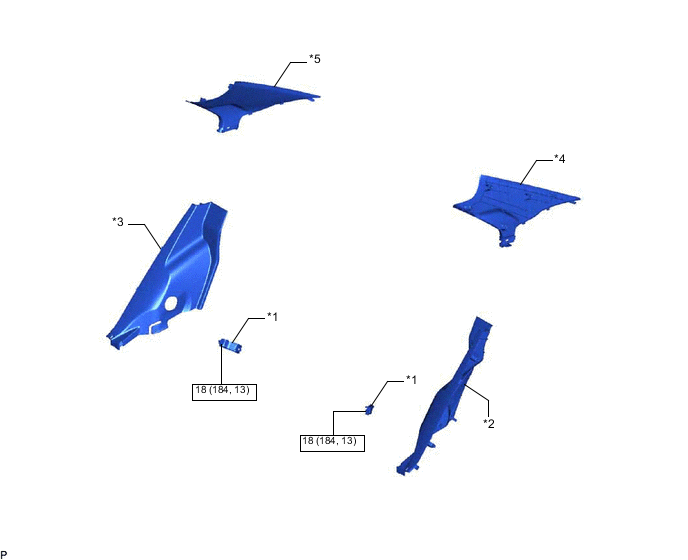

ILLUSTRATION
| *1 | REAR SEATBACK HINGE SUB-ASSEMBLY | *2 | REAR SEAT SIDE GARNISH LH |
| *3 | REAR SEAT SIDE GARNISH RH | *4 | ROOF SIDE INNER GARNISH ASSEMBLY LH |
| *5 | ROOF SIDE INNER GARNISH ASSEMBLY RH | - | - |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

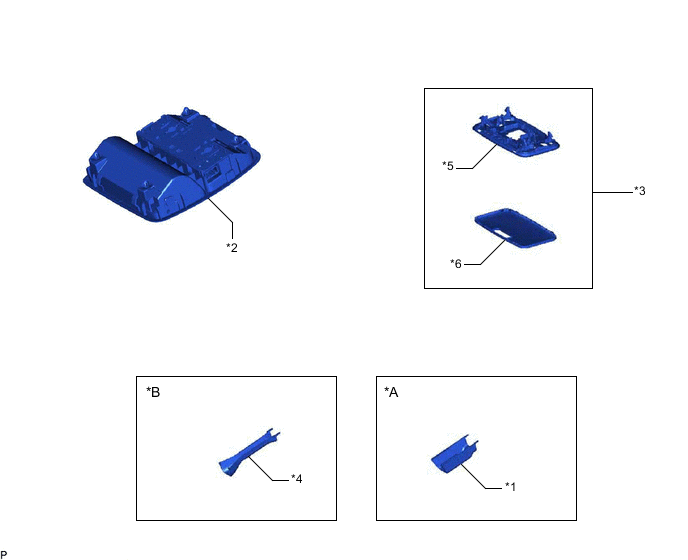

ILLUSTRATION
| *A | w/ EC Mirror | *B | w/ Rain Sensor |
| *1 | INNER REAR VIEW MIRROR STAY HOLDER COVER | *2 | MAP LIGHT ASSEMBLY |
| *3 | NO. 1 ROOM LIGHT ASSEMBLY | *4 | RAIN SENSOR COVER |
| *5 | NO. 1 ROOM LIGHT HOUSING | *6 | NO. 1 ROOM LIGHT LENS |

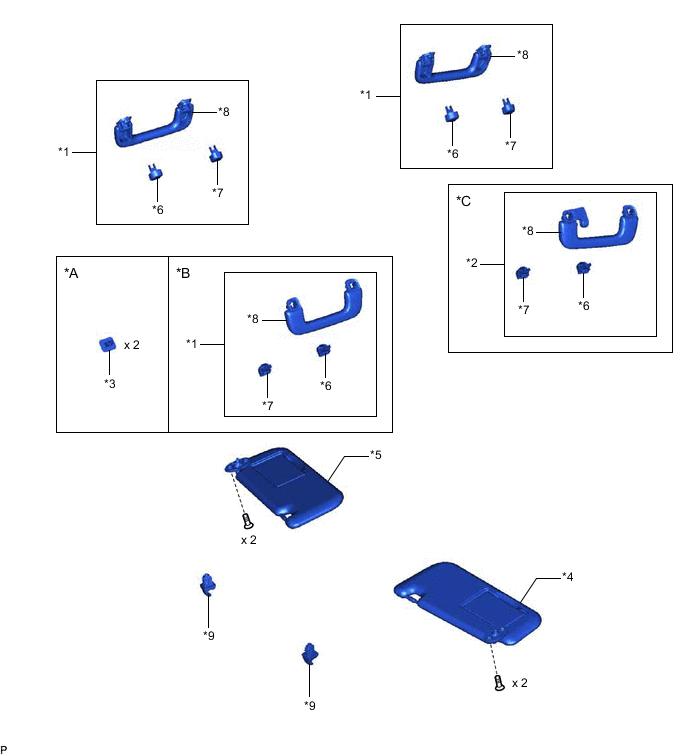

ILLUSTRATION
| *A | for Driver Side without Assist Grip | *B | for Driver Side with Assist Grip |
| *C | for Driver Side | - | - |
| *1 | ASSIST GRIP SUB-ASSEMBLY | *2 | REAR ASSIST GRIP ASSEMBLY |
| *3 | ROOF HEADLINING SERVICE HOLE COVER | *4 | VISOR ASSEMBLY LH |
| *5 | VISOR ASSEMBLY RH | *6 | ASSIST GRIP COVER LH |
| *7 | ASSIST GRIP COVER RH | *8 | ASSIST GRIP |
| *9 | VISOR HOLDER | - | - |

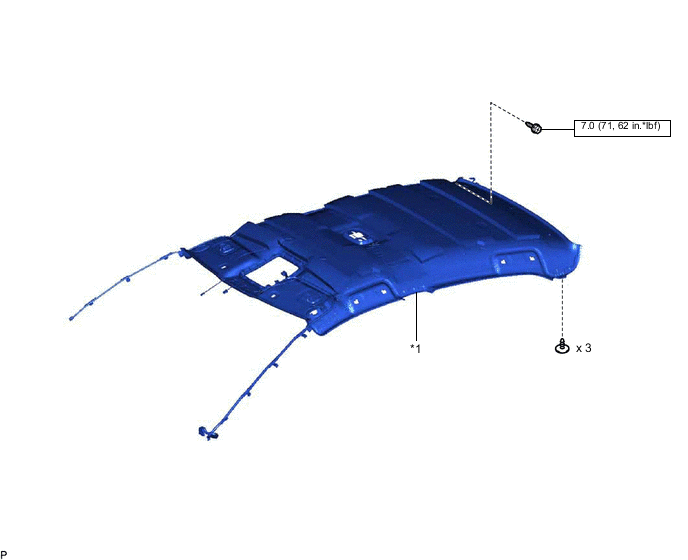

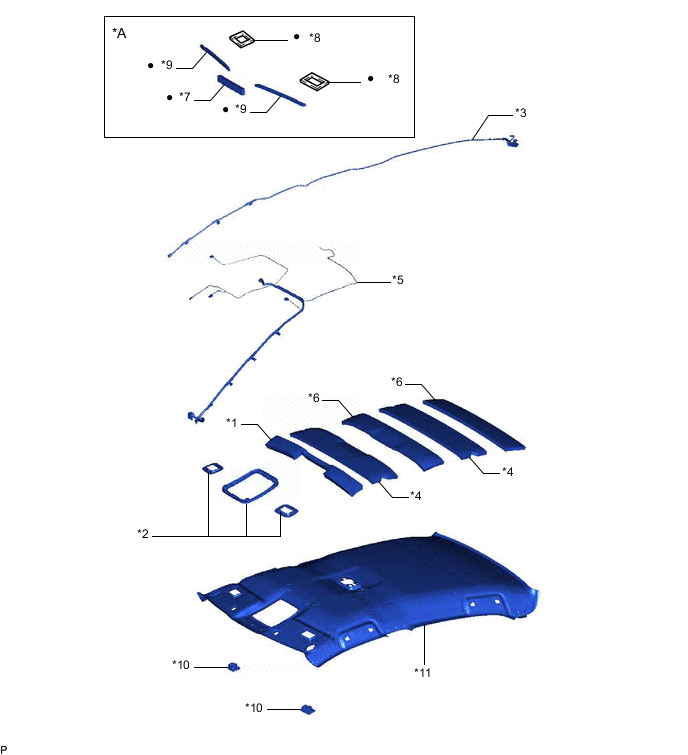

ILLUSTRATION
| *1 | ROOF HEADLINING ASSEMBLY | - | - |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
ILLUSTRATION
| *A | except Standard | - | - |
| *1 | FRONT ROOF SILENCER PAD | *2 | HEADLINING LIGHT CASE |
| *3 | NO. 1 AMPLIFIER ANTENNA ASSEMBLY | *4 | NO. 1 ROOF SILENCER PAD |
| *5 | NO. 1 ROOF WIRE | *6 | NO. 2 ROOF SILENCER PAD |
| *7 | NO. 4 ROOF SILENCER PAD | *8 | NO. 6 ROOF SILENCER PAD |
| *9 | ROOF SILENCER PAD | *10 | VANITY LIGHT ASSEMBLY |
| *11 | ROOF HEADLINING ASSEMBLY | - | - |
| ● | Non-reusable part | - | - |
