SIMPLE INTELLIGENT PARKING ASSIST SYSTEM SYSTEM DIAGRAM

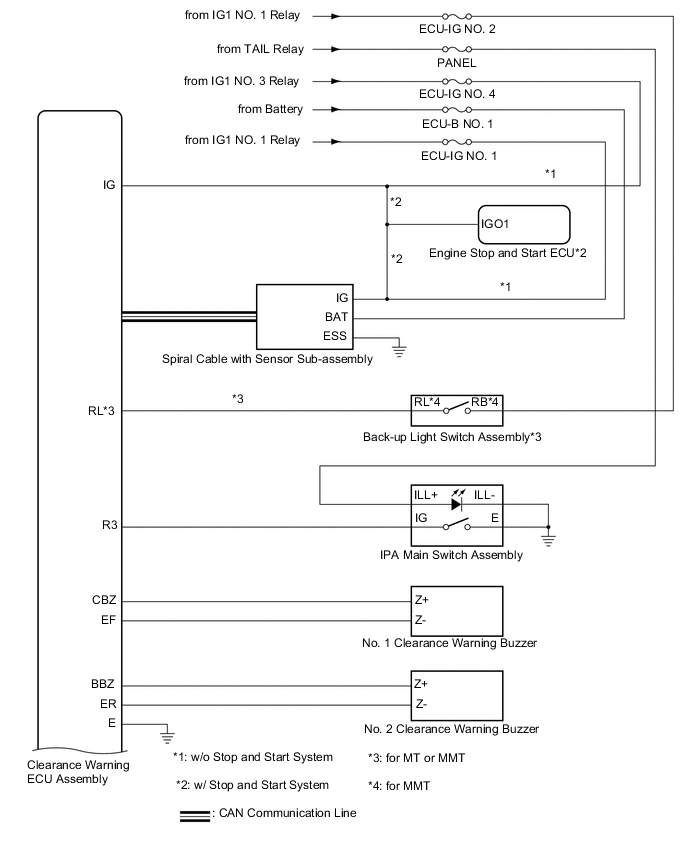

A00YAXOE01

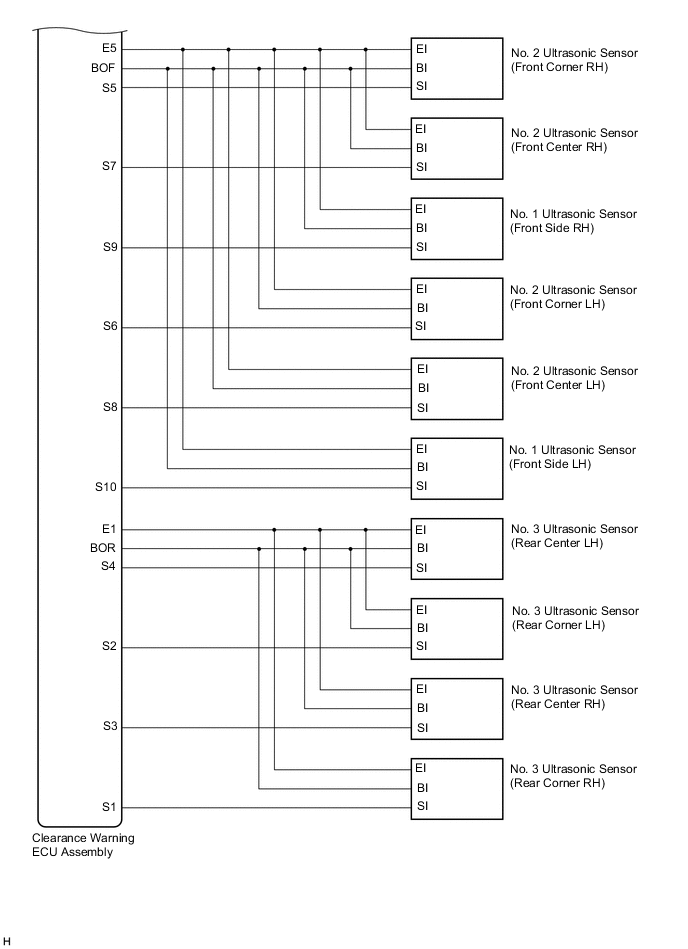

A00Y65AE01

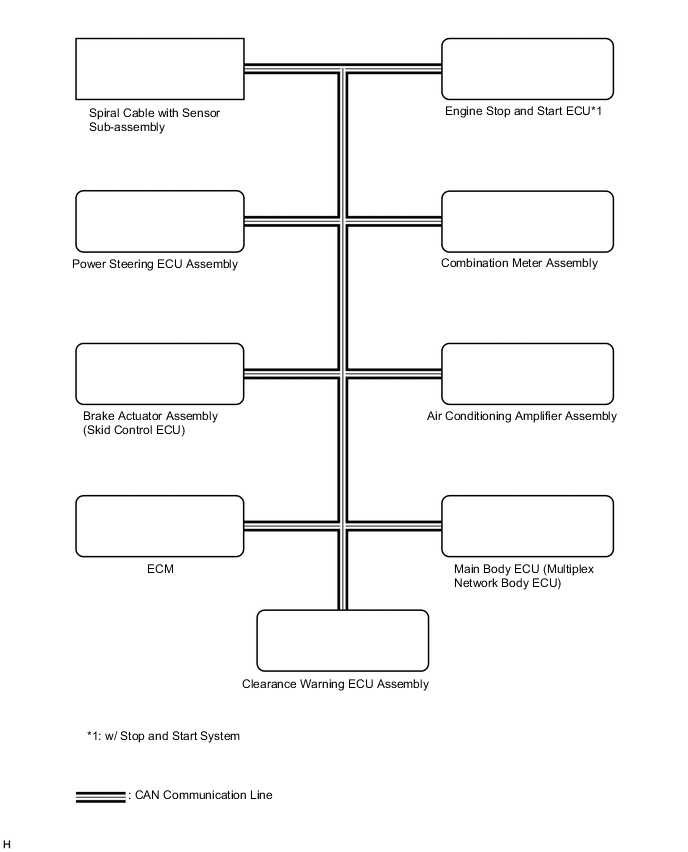

A00Y8BEE01
Communication Table
Sender Receiver Signal Line
Spiral Cable with Sensor Sub-assembly Clearance Warning ECU Assembly Steering angle signal CAN
Power Steering ECU Assembly Clearance Warning ECU Assembly Vehicle condition signal CAN
Clearance Warning ECU Assembly Power Steering ECU Assembly Steering control signal CAN
Brake Actuator Assembly (Skid Control ECU) Clearance Warning ECU Assembly

  • Vehicle speed signal

  • VSC OFF switch operation signal

  • ABS/VSC/TRC operation signal

 CAN
ECM Clearance Warning ECU Assembly

  • Shift position signal*1

  • Engine speed signal

  • ENG/HV flag signal

 CAN
Engine Stop and Start ECU*2 Clearance Warning ECU Assembly Stop and start system operation condition signal CAN
Clearance Warning ECU Assembly Engine Stop and Start ECU*2 Simple intelligent parking assist system operation signal CAN
Combination Meter Assembly Clearance Warning ECU Assembly Turn signal switch signal CAN
Clearance Warning ECU Assembly Combination Meter Assembly

  • Message display request signal

  • Display request signal

  • Buzzer sound signal

 CAN
Air Conditioning Amplifier Assembly Clearance Warning ECU Assembly Ambient temperature signal CAN
Main Body ECU (Multiplex Network Body ECU) Clearance Warning ECU Assembly Vehicle information (LHD/RHD) signal CAN
