SIMPLE INTELLIGENT PARKING ASSIST SYSTEM PARTS LOCATION
ILLUSTRATION
| *A | for RHD | - | - |
| *1 | POWER STEERING ECU ASSEMBLY | *2 | COMBINATION METER ASSEMBLY |
| *3 | IPA MAIN SWITCH ASSEMBLY | *4 | CLEARANCE WARNING ECU ASSEMBLY |
| *5 | SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY | *6 | DLC3 |
| *7 | NO. 1 CLEARANCE WARNING BUZZER | *8 | AIR CONDITIONING AMPLIFIER ASSEMBLY |
| *9 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-IG NO. 1 FUSE - ECU-IG NO. 2 FUSE - ECU-IG NO. 4 FUSE - PANEL FUSE |
*10 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *11 | ENGINE STOP AND START ECU (w/ Stop and Start System) | - | - |
ILLUSTRATION
| *A | for LHD | - | - |
| *1 | NO. 1 CLEARANCE WARNING BUZZER | *2 | ENGINE STOP AND START ECU (w/ Stop and Start System) |
| *3 | CLEARANCE WARNING ECU ASSEMBLY | *4 | SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY |
| *5 | IPA MAIN SWITCH ASSEMBLY | *6 | AIR CONDITIONING AMPLIFIER ASSEMBLY |
| *7 | DLC3 | *8 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *9 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-IG NO. 1 FUSE - ECU-IG NO. 2 FUSE - ECU-IG NO. 4 FUSE - PANEL FUSE |
*10 | POWER STEERING ECU ASSEMBLY |
| *11 | COMBINATION METER ASSEMBLY | - | - |

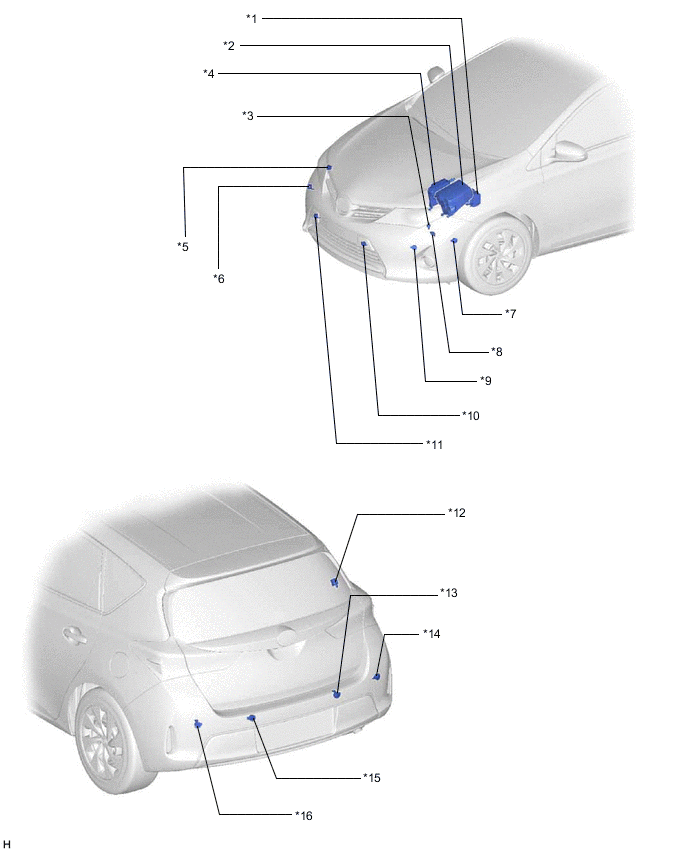

ILLUSTRATION
| *1 | BRAKE ACTUATOR ASSEMBLY - SKID CONTROL ECU |
*2 | ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY - ECU-B NO. 1 |
| *3 | BACK-UP LIGHT SWITCH ASSEMBLY (for EC60, EC61, EC65A or EC69) | *4 | ECM |
| *5 | NO. 1 ULTRASONIC SENSOR (Front Side RH) | *6 | NO. 2 ULTRASONIC SENSOR (Front Corner RH) |
| *7 | NO. 1 ULTRASONIC SENSOR (Front Side LH) | *8 | BACK-UP LIGHT SWITCH ASSEMBLY (for EA66) |
| *9 | NO. 2 ULTRASONIC SENSOR (Front Corner LH) | *10 | NO. 2 ULTRASONIC SENSOR (Front Center LH) |
| *11 | NO. 2 ULTRASONIC SENSOR (Front Center RH) | *12 | NO. 2 CLEARANCE WARNING BUZZER |
| *13 | NO. 3 ULTRASONIC SENSOR (Rear Center RH) | *14 | NO. 3 ULTRASONIC SENSOR (Rear Corner RH) |
| *15 | NO. 3 ULTRASONIC SENSOR (Rear Center LH) | *16 | NO. 3 ULTRASONIC SENSOR (Rear Corner LH) |
