NAVIGATION ECU(for Hatchback, Wagon) REMOVAL

PROCEDURE


  1. REMOVE LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL

    Click here

  2. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

    Click here

  3. REMOVE RADIO RECEIVER ASSEMBLY WITH BRACKET

    Click here

  4. REMOVE NAVIGATION ECU WITH BRACKET

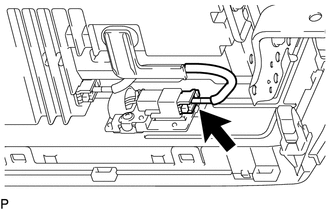

    1. A01D4IO

      Disconnect the connector.

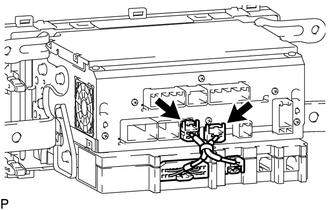

    2. A01D5Q7

      Disconnect the 2 connectors.

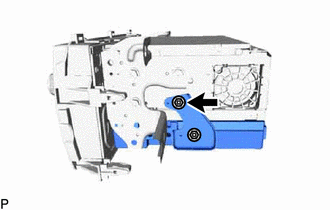

    3. A01D68V

      Remove the screw.

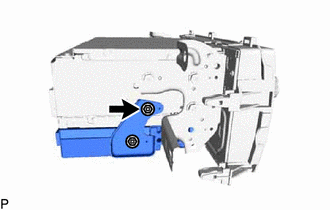

    4. A01D6H2

      Remove the screw and navigation ECU with bracket.

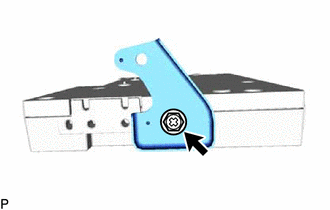

  5. REMOVE NO. 1 RADIO RECEIVER BRACKET


    1. A01D5VU

      Remove the screw and No. 1 radio receiver bracket.

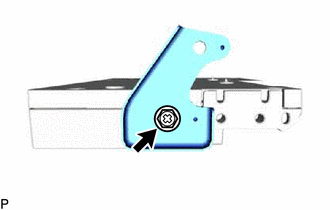

  6. REMOVE NO. 2 RADIO RECEIVER BRACKET


    1. A01D5T9

      Remove the screw and No. 2 radio receiver bracket.

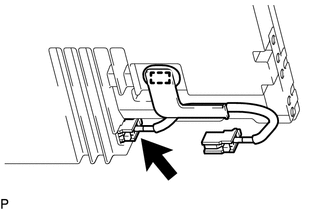

  7. REMOVE ANTENNA CORD SUB-ASSEMBLY


    1. A01D3PZ

      Disconnect the connector.

    2. Disengage the clamp to remove the antenna cord sub-assembly.

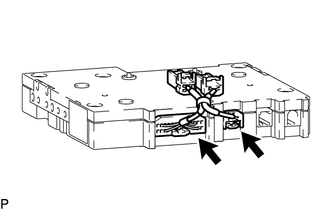

  8. REMOVE NO. 1 NAVIGATION WIRE


    1. A01D5U0

      Disconnect the 2 connectors to remove the No. 1 navigation wire.

  9. REMOVE NAVIGATION ECU
