NAVIGATION ECU(for Hatchback, Wagon) REMOVAL

PROCEDURE


  1. REMOVE LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL

    Click here

  2. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

    Click here

  3. REMOVE RADIO RECEIVER ASSEMBLY WITH BRACKET

    Click here

  4. REMOVE NAVIGATION ECU WITH BRACKET

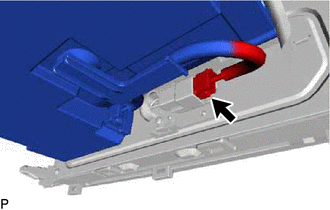

    1. A00Y7SA

      Disconnect the connector.

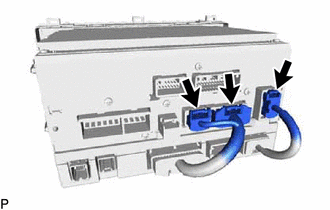

    2. A00Y5K5

      Disconnect the 3 connectors.

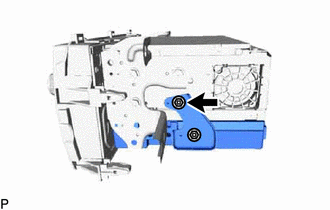

    3. A00Y8I2

      Remove the screw.

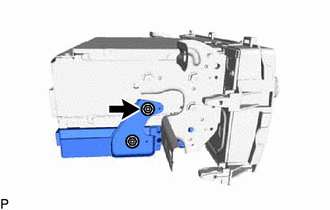

    4. A00Y5GT

      Remove the screw and navigation ECU with bracket.

  5. REMOVE NO. 1 RADIO RECEIVER BRACKET

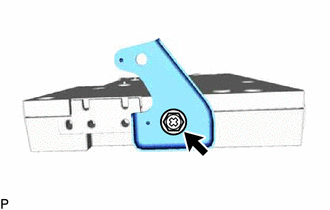

    1. A00Y9D2

      Remove the screw and No. 1 radio receiver bracket.

  6. REMOVE NO. 2 RADIO RECEIVER BRACKET

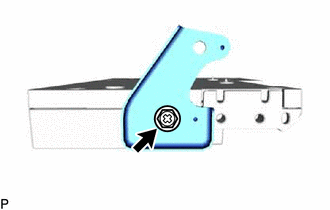

    1. A00YB5W

      Remove the screw and No. 2 radio receiver bracket.

  7. REMOVE ANTENNA CORD SUB-ASSEMBLY (for Bluetooth)

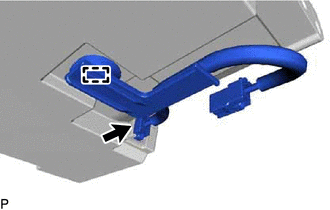

    1. A00Y61S

      Disconnect the connector.

    2. Disengage the clamp and remove the antenna cord sub-assembly (for Bluetooth).

  8. REMOVE ANTENNA CORD SUB-ASSEMBLY (for Radio Antenna)

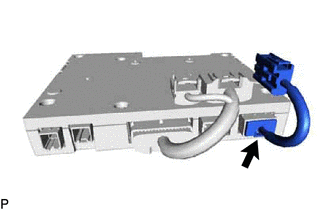

    1. A00Y7QS

      Disconnect the connector to remove the antenna cord sub-assembly (for Radio Antenna).

  9. REMOVE NO. 1 NAVIGATION WIRE

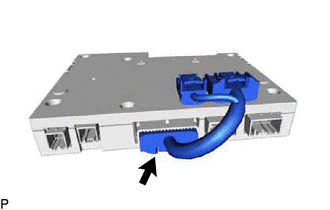

    1. A00YB54

      Disconnect the connector to remove the No. 1 navigation wire.

  10. REMOVE NAVIGATION ECU
