NAVIGATION ECU(for Hatchback, Wagon) COMPONENTS

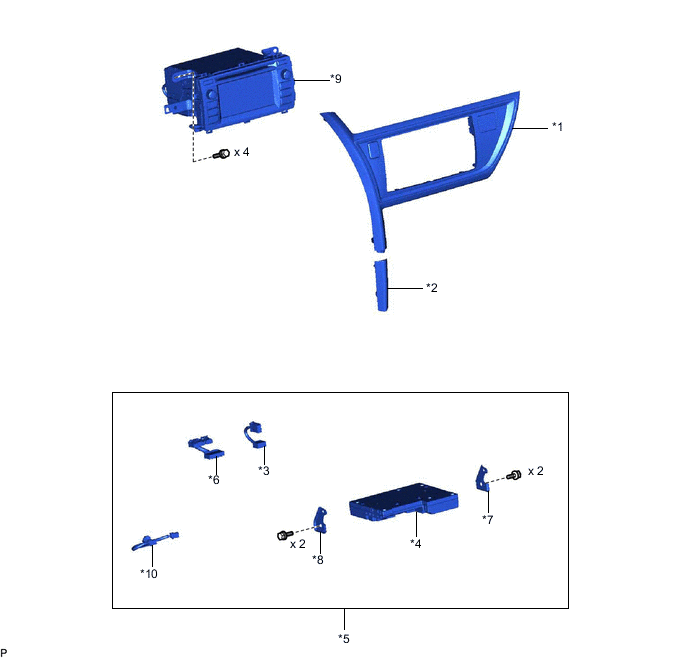

ILLUSTRATION
| *1 | CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY | *2 | LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL |
| *3 | ANTENNA CORD SUB-ASSEMBLY (for Radio Antenna) | *4 | NAVIGATION ECU |
| *5 | NAVIGATION ECU WITH BRACKET | *6 | NO. 1 NAVIGATION WIRE |
| *7 | NO. 1 RADIO RECEIVER BRACKET | *8 | NO. 2 RADIO RECEIVER BRACKET |
| *9 | RADIO RECEIVER ASSEMBLY WITH BRACKET | *10 | ANTENNA CORD SUB-ASSEMBLY (for Bluetooth) |
