AMPLIFIER ANTENNA(for Sedan) REMOVAL

PROCEDURE

1. REMOVE ROOF HEADLINING ASSEMBLY

   Click here

2. REMOVE NO. 1 AMPLIFIER ANTENNA ASSEMBLY

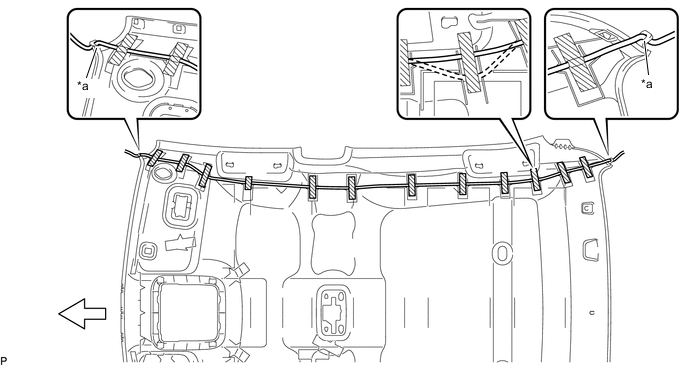

   1. Disengage the No. 1 amplifier antenna assembly from the 2 notches of the roof headlining assembly.



      *a	Notch	-	-
      	Front		Adhesive Tape

   2. Remove the adhesive tape from the roof headlining assembly.

   3. Remove the No. 1 amplifier antenna assembly from the roof headlining assembly.
