AMPLIFIER ANTENNA(for Sedan) REMOVAL

PROCEDURE


  1. REMOVE ROOF HEADLINING ASSEMBLY

    Click here

  2. REMOVE NO. 1 AMPLIFIER ANTENNA ASSEMBLY

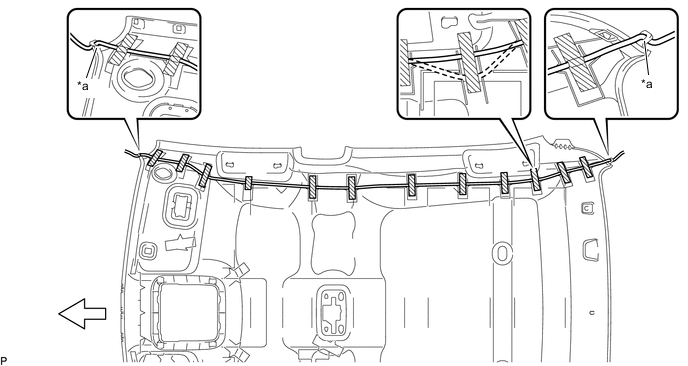

    1. Disengage the No. 1 amplifier antenna assembly from the 2 notches of the roof headlining assembly.

      A012FY2C01
      *a Notch - -
      A012L0C Front A012F6O Adhesive Tape

    2. Remove the adhesive tape from the roof headlining assembly.

    3. Remove the No. 1 amplifier antenna assembly from the roof headlining assembly.
