STEREO JACK ADAPTER ASSEMBLY(for Hatchback, Wagon) REMOVAL

PROCEDURE

1. REMOVE LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL

   Click here

2. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle)

   Click here

3. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for CVT)

   Click here

4. REMOVE SHIFTING HOLE BEZEL (for Manual Transaxle)

   Click here

5. REMOVE POSITION INDICATOR HOUSING ASSEMBLY (for CVT)

   Click here

6. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY

   Click here

7. REMOVE UPPER CONSOLE PANEL

   Click here

8. REMOVE INSTRUMENT PANEL BOX ASSEMBLY

   Click here

9. REMOVE NO. 1 STEREO JACK ADAPTER ASSEMBLY




   1.

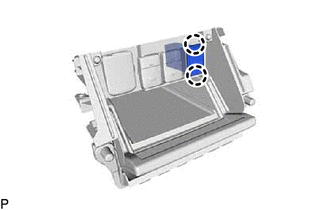

      Disengage the 2 claws and remove the No. 1 stereo jack adapter assembly.
