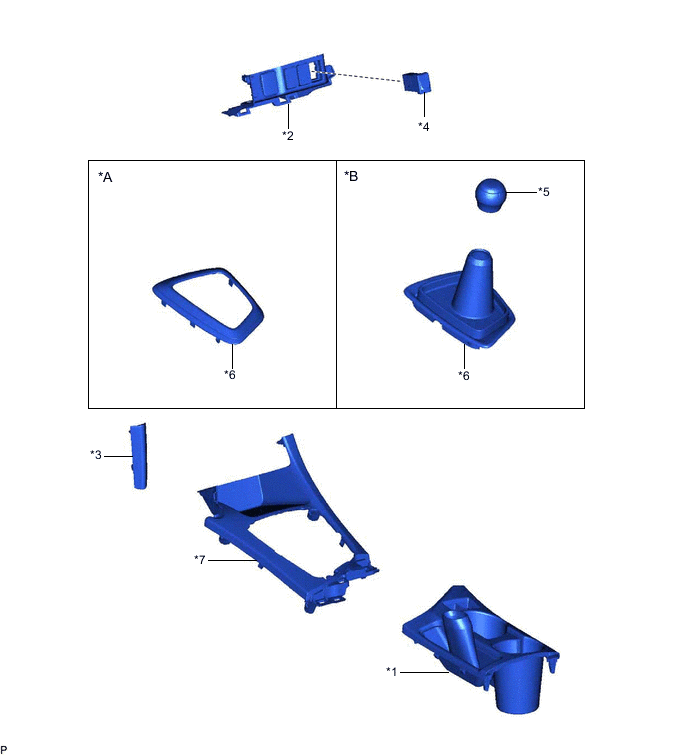

STEREO JACK ADAPTER ASSEMBLY(for Hatchback, Wagon) COMPONENTS
ILLUSTRATION
| *A | for CVT | *B | for Manual Transaxle |
| *1 | UPPER CONSOLE PANEL SUB-ASSEMBLY | *2 | LOWER CENTER INSTRUMENT PANEL FINISH PANEL |
| *3 | LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL | *4 | NO. 1 STEREO JACK ADAPTER ASSEMBLY |
| *5 | SHIFT LEVER KNOB SUB-ASSEMBLY | *6 | SHIFTING HOLE BEZEL |
| *7 | UPPER CONSOLE PANEL | - | - |
