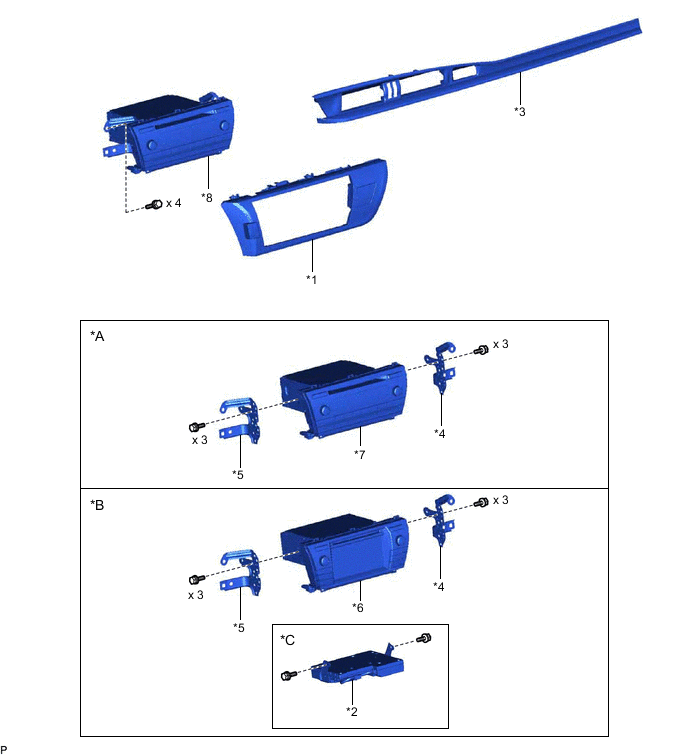

RADIO RECEIVER(for Sedan) COMPONENTS
ILLUSTRATION
| *A | for Radio Receiver Type | *B | for Radio and Display Type |
| *C | w/ Navigation System | - | - |
| *1 | CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY | *2 | NAVIGATION ECU WITH BRACKET |
| *3 | NO. 1 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY | *4 | NO. 1 RADIO BRACKET |
| *5 | NO. 2 RADIO BRACKET | *6 | RADIO AND DISPLAY RECEIVER ASSEMBLY |
| *7 | RADIO RECEIVER ASSEMBLY | *8 | RADIO RECEIVER ASSEMBLY WITH BRACKET |
