RADIO RECEIVER(for Hatchback, Wagon) REMOVAL

PROCEDURE


  1. REMOVE LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL

    Click here

  2. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

    Click here

  3. REMOVE RADIO RECEIVER ASSEMBLY WITH BRACKET

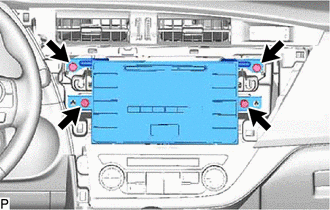

    1. A01LWZF

      Remove the 4 bolts.

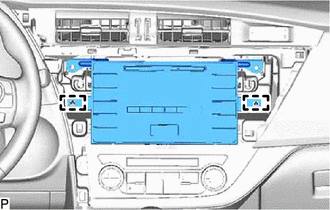

    2. A01LXC0

      Pull the radio receiver assembly with bracket toward the rear of the vehicle to disengage the 2 guides.

    3. Disconnect each connector and remove the radio receiver assembly with bracket.

  4. DISCONNECT ANTENNA CORD SUB-ASSEMBLY (w/ Navigation System)

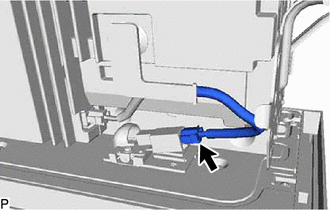

    1. A01LX4F

      Disconnect the antenna cord sub-assembly connector.

  5. DISCONNECT NO. 1 NAVIGATION WIRE (w/ Navigation System)

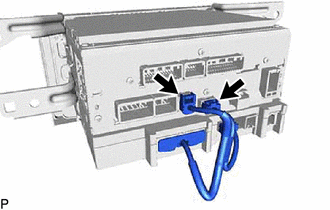

    1. A01M1FR

      Disconnect the 2 No. 1 navigation wire connectors.

  6. REMOVE NO. 1 RADIO BRACKET


    1. w/o Navigation System:

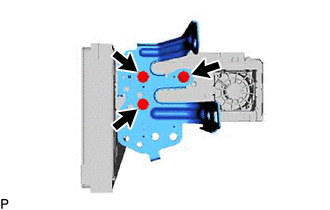

      1. A01M3EE

        Remove the 3 screws and No. 1 radio bracket.

    2. w/ Navigation System:

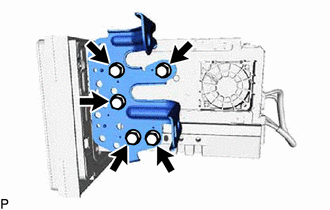

      1. A01LV7T

        Remove the 5 screws and No. 1 radio bracket.

  7. REMOVE NO. 2 RADIO BRACKET


    1. w/o Navigation System:

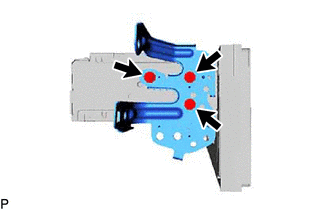

      1. A01LYW5

        Remove the 3 screws and No. 2 radio bracket.

    2. w/ Navigation System:

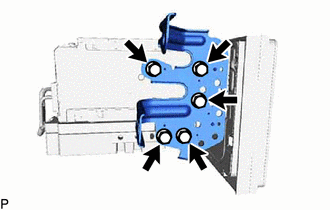

      1. A01LZPN

        Remove the 5 screws and No. 2 radio bracket.

  8. REMOVE RADIO RECEIVER ASSEMBLY (for Radio Receiver Type)

  9. REMOVE RADIO AND DISPLAY RECEIVER ASSEMBLY (for Radio and Display Type)

  10. REMOVE NAVIGATION ECU (w/ Navigation System)
