AUDIO AND VISUAL SYSTEM(except Sedan Radio and Display Type) PARTS LOCATION

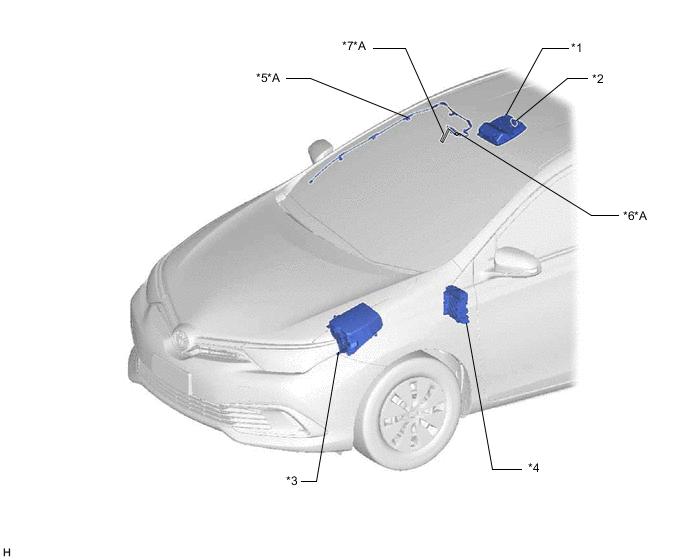

ILLUSTRATION
| *A | w/ DAB Function | - | - |
| *1 | MAP LIGHT ASSEMBLY | *2 | TELEPHONE MICROPHONE ASSEMBLY |
| *3 | ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY - RADIO FUSE (w/o Stop and Start System) |
*4 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ACC FUSE (w/o Stop and Start System) - ECU-IG NO. 3 FUSE - PANEL FUSE |
| *5 | NO. 2 ANTENNA CORD SUB-ASSEMBLY | *6 | DIGITAL AUDIO BROADCASTING ANTENNA ASSEMBLY |
| *7 | WINDOW GLASS ANTENNA WIRE | - | - |
ILLUSTRATION

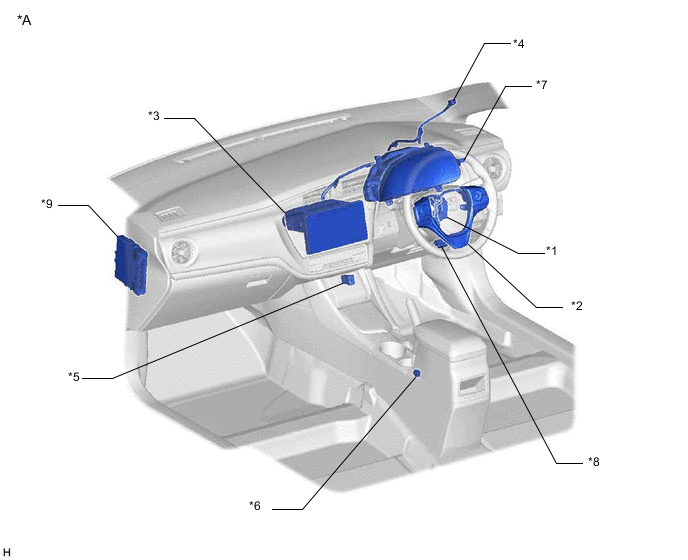

| *A | for RHD | - | - |
| *1 | SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY | *2 | STEERING PAD SWITCH ASSEMBLY |
| *3 | RADIO AND DISPLAY RECEIVER ASSEMBLY | *4 | ANTENNA CORD SUB-ASSEMBLY |
| *5 | NO. 1 STEREO JACK ADAPTER ASSEMBLY | *6 | PARKING BRAKE SWITCH ASSEMBLY |
| *7 | COMBINATION METER ASSEMBLY | *8 | DLC3 |
| *9 | ENGINE STOP AND START ECU (w/ Stop and Start System) |
- | - |
ILLUSTRATION

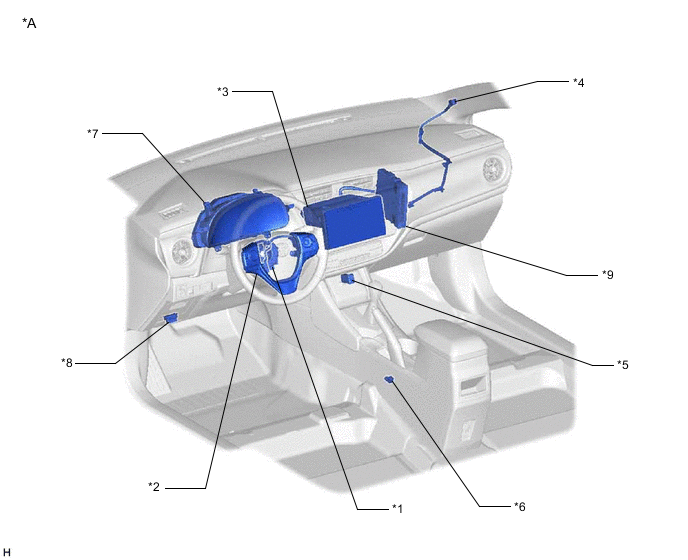

| *A | for LHD | - | - |
| *1 | SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY | *2 | STEERING PAD SWITCH ASSEMBLY |
| *3 | RADIO AND DISPLAY RECEIVER ASSEMBLY | *4 | ANTENNA CORD SUB-ASSEMBLY |
| *5 | NO. 1 STEREO JACK ADAPTER ASSEMBLY | *6 | PARKING BRAKE SWITCH ASSEMBLY |
| *7 | COMBINATION METER ASSEMBLY | *8 | DLC3 |
| *9 | ENGINE STOP AND START ECU (w/ Stop and Start System) |
- | - |
ILLUSTRATION

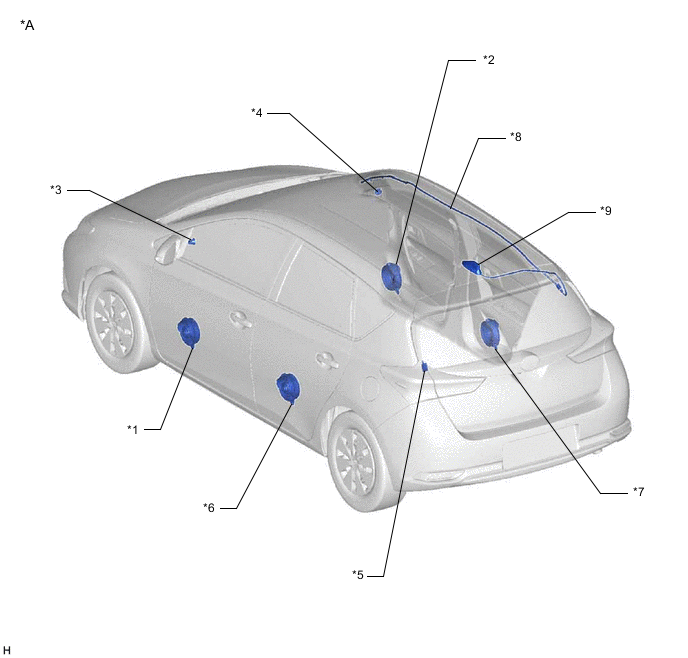

| *A | for Hatchback | - | - |
| *1 | FRONT NO. 1 SPEAKER ASSEMBLY LH | *2 | FRONT NO. 1 SPEAKER ASSEMBLY RH |
| *3 | FRONT NO. 2 SPEAKER ASSEMBLY LH | *4 | FRONT NO. 2 SPEAKER ASSEMBLY RH |
| *5 | RADIO SETTING CONDENSER | *6 | REAR SPEAKER ASSEMBLY LH |
| *7 | REAR SPEAKER ASSEMBLY RH | *8 | NO. 3 ANTENNA CORD SUB-ASSEMBLY |
| *9 | NO. 1 AMPLIFIER ANTENNA ASSEMBLY | - | - |
ILLUSTRATION

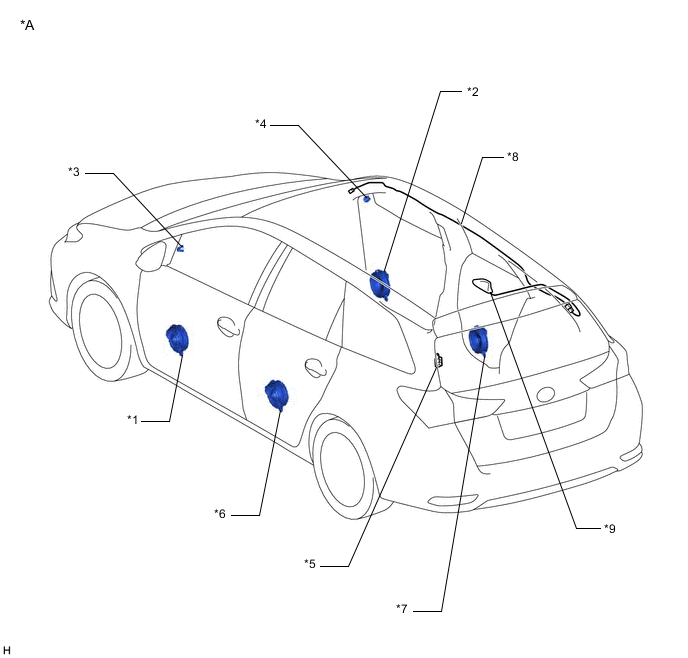

| *A | for Wagon | - | - |
| *1 | FRONT NO. 1 SPEAKER ASSEMBLY LH | *2 | FRONT NO. 1 SPEAKER ASSEMBLY RH |
| *3 | FRONT NO. 2 SPEAKER ASSEMBLY LH | *4 | FRONT NO. 2 SPEAKER ASSEMBLY RH |
| *5 | RADIO SETTING CONDENSER | *6 | REAR SPEAKER ASSEMBLY LH |
| *7 | REAR SPEAKER ASSEMBLY RH | *8 | NO. 3 ANTENNA CORD SUB-ASSEMBLY |
| *9 | NO. 1 AMPLIFIER ANTENNA ASSEMBLY | - | - |
