AUDIO AND VISUAL SYSTEM(except Sedan Radio and Display Type) PARTS LOCATION

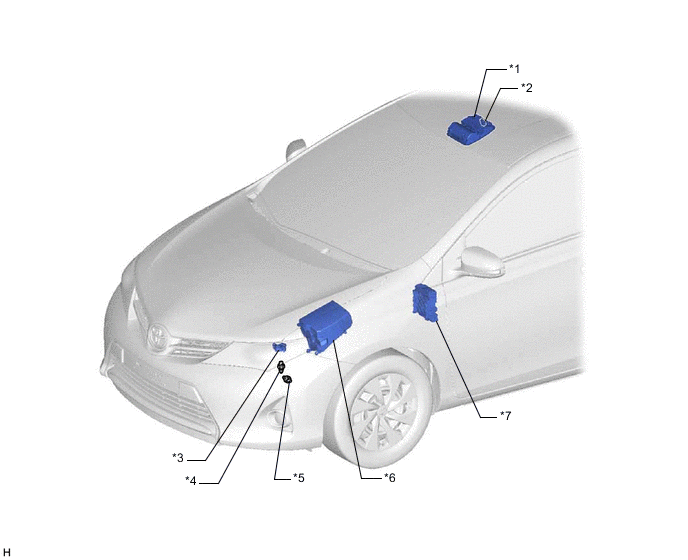

ILLUSTRATION
| *1 | MAP LIGHT ASSEMBLY | *2 | TELEPHONE MICROPHONE ASSEMBLY |
| *3 | PARK/NEUTRAL POSITION SWITCH ASSEMBLY (for K311) |
*4 | BACK-UP LIGHT SWITCH ASSEMBLY (for EC60, EC61, EC65A, EC69) |
| *5 | BACK-UP LIGHT SWITCH ASSEMBLY (for EA66) |
*6 | ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY - AMP FUSE - RADIO FUSE (w/o Stop and Start System) |
| *7 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ACC FUSE (w/o Stop and Start System) - ECU-IG NO. 3 FUSE - PANEL FUSE |
- | - |

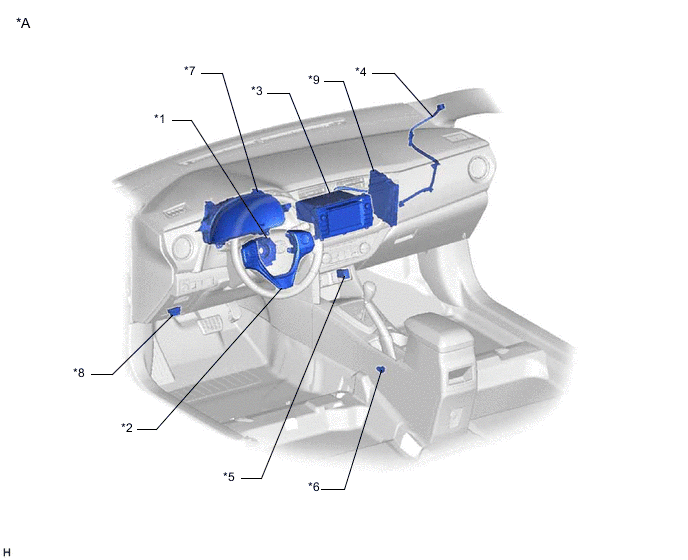

ILLUSTRATION
| *A | for LHD | - | - |
| *1 | SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY | *2 | STEERING PAD SWITCH ASSEMBLY |
| *3 | RADIO AND DISPLAY RECEIVER ASSEMBLY | *4 | ANTENNA CORD SUB-ASSEMBLY |
| *5 | NO. 1 STEREO JACK ADAPTER ASSEMBLY | *6 | PARKING BRAKE SWITCH ASSEMBLY |
| *7 | COMBINATION METER ASSEMBLY | *8 | DLC3 |
| *9 | ENGINE STOP AND START ECU (w/ Stop and Start System) |
- | - |

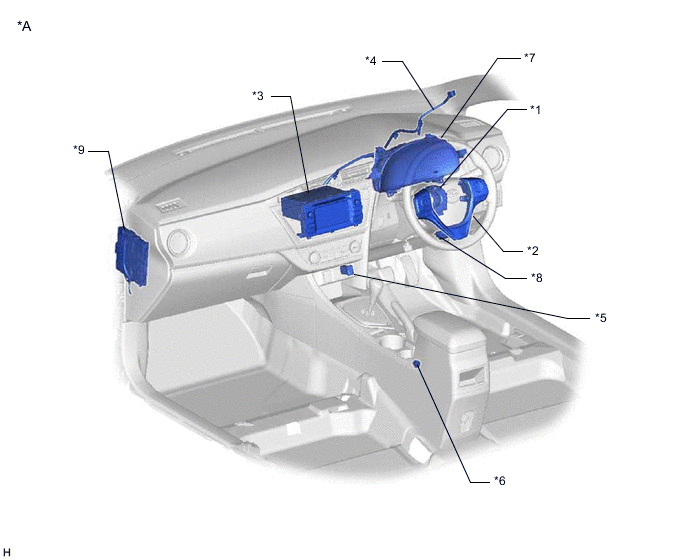

ILLUSTRATION
| *A | for RHD | - | - |
| *1 | SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY | *2 | STEERING PAD SWITCH ASSEMBLY |
| *3 | RADIO AND DISPLAY RECEIVER ASSEMBLY | *4 | ANTENNA CORD SUB-ASSEMBLY |
| *5 | NO. 1 STEREO JACK ADAPTER ASSEMBLY | *6 | PARKING BRAKE SWITCH ASSEMBLY |
| *7 | COMBINATION METER ASSEMBLY | *8 | DLC3 |
| *9 | ENGINE STOP AND START ECU (w/ Stop and Start System) |
- | - |

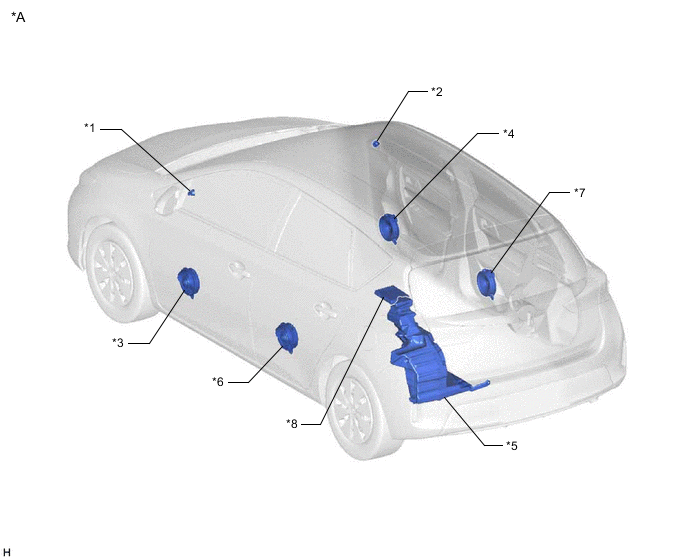

ILLUSTRATION
| *A | for Hatchback | - | - |
| *1 | FRONT NO. 2 SPEAKER ASSEMBLY LH | *2 | FRONT NO. 2 SPEAKER ASSEMBLY RH |
| *3 | FRONT NO. 1 SPEAKER ASSEMBLY LH | *4 | FRONT NO. 1 SPEAKER ASSEMBLY RH |
| *5 | NO. 1 SPEAKER WITH BOX ASSEMBLY (for 9 Speakers) | *6 | REAR SPEAKER ASSEMBLY LH |
| *7 | REAR SPEAKER ASSEMBLY RH | *8 | STEREO COMPONENT AMPLIFIER ASSEMBLY (for 9 Speakers) |

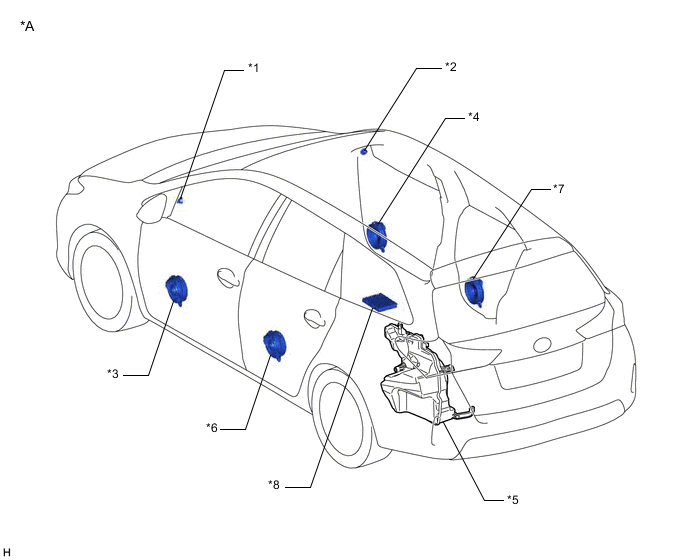

ILLUSTRATION
| *A | for Wagon | - | - |
| *1 | FRONT NO. 2 SPEAKER ASSEMBLY LH | *2 | FRONT NO. 2 SPEAKER ASSEMBLY RH |
| *3 | FRONT NO. 1 SPEAKER ASSEMBLY LH | *4 | FRONT NO. 1 SPEAKER ASSEMBLY RH |
| *5 | NO. 1 SPEAKER WITH BOX ASSEMBLY (for 9 Speakers) | *6 | REAR SPEAKER ASSEMBLY LH |
| *7 | REAR SPEAKER ASSEMBLY RH | *8 | STEREO COMPONENT AMPLIFIER ASSEMBLY (for 9 Speakers) |

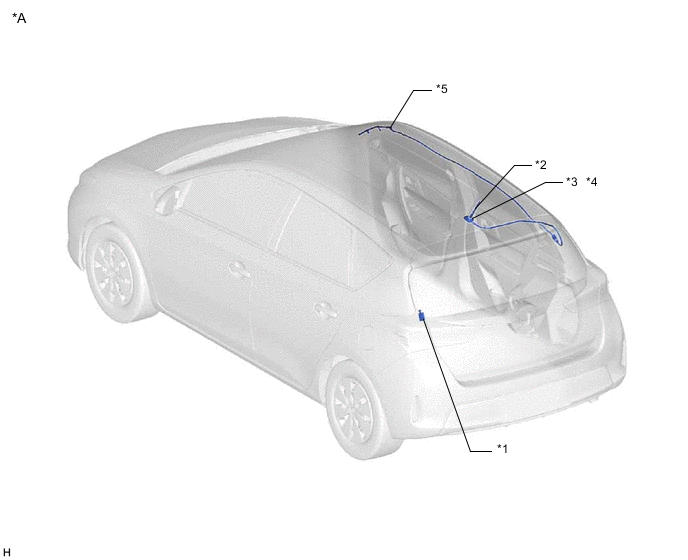

ILLUSTRATION
| *A | for Hatchback | - | - |
| *1 | RADIO SETTING CONDENSER | *2 | ROOF ANTENNA POLE SUB-ASSEMBLY |
| *3 | AMPLIFIER ANTENNA ASSEMBLY - AM - FM (w/o DAB Function) |
*4 | DIGITAL AUDIO BROADCASTING ANTENNA ASSEMBLY - AM - FM - DAB (w/ DAB Function) |
| *5 | NO. 3 ANTENNA CORD SUB-ASSEMBLY | - | - |

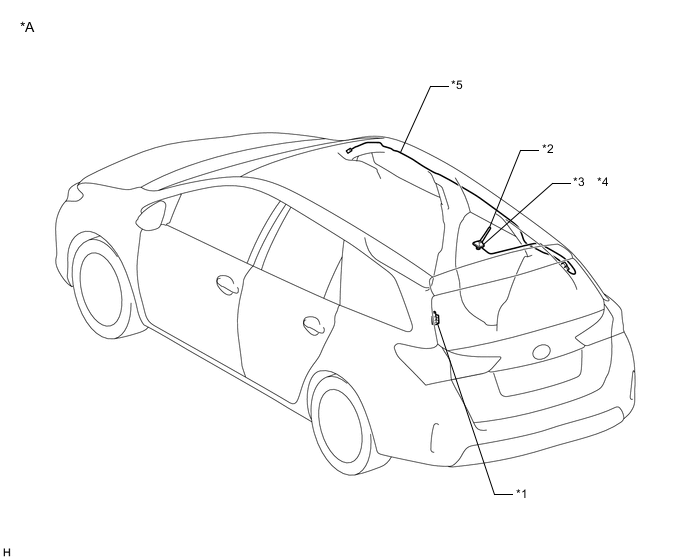

ILLUSTRATION
| *A | for Wagon | - | - |
| *1 | RADIO SETTING CONDENSER | *2 | ROOF ANTENNA POLE SUB-ASSEMBLY |
| *3 | AMPLIFIER ANTENNA ASSEMBLY - AM - FM (w/o DAB Function) |
*4 | DIGITAL AUDIO BROADCASTING ANTENNA ASSEMBLY - AM - FM - DAB (w/ DAB Function) |
| *5 | NO. 3 ANTENNA CORD SUB-ASSEMBLY | - | - |
