AUDIO AND VISUAL SYSTEM(for Radio Receiver Type) PARTS LOCATION
ILLUSTRATION
| *A | except Sedan | - | - |
| *1 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ACC FUSE (w/o Stop and Start System) - PANEL FUSE |
*2 | ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY - RADIO FUSE (w/o Stop and Start System) |
| *3 | MAP LIGHT ASSEMBLY | *4 | TELEPHONE MICROPHONE ASSEMBLY |
ILLUSTRATION
| *A | for Sedan | - | - |
| *1 | MAP LIGHT ASSEMBLY | *2 | TELEPHONE MICROPHONE ASSEMBLY (w/ Microphone) |
| *3 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ACC FUSE (w/o Stop and Start System) - PANEL FUSE |
*4 | ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY - RADIO FUSE (w/o Stop and Start System) |
ILLUSTRATION
| *A | for Hatchback | - | - |
| *1 | FRONT NO. 1 SPEAKER ASSEMBLY LH | *2 | FRONT NO. 1 SPEAKER ASSEMBLY RH |
| *3 | FRONT NO. 2 SPEAKER ASSEMBLY LH | *4 | FRONT NO. 2 SPEAKER ASSEMBLY RH |
| *5 | RADIO SETTING CONDENSER | *6 | NO. 3 ANTENNA CORD SUB-ASSEMBLY |
| *7 | NO. 1 AMPLIFIER ANTENNA ASSEMBLY - AM - FM |
- | - |

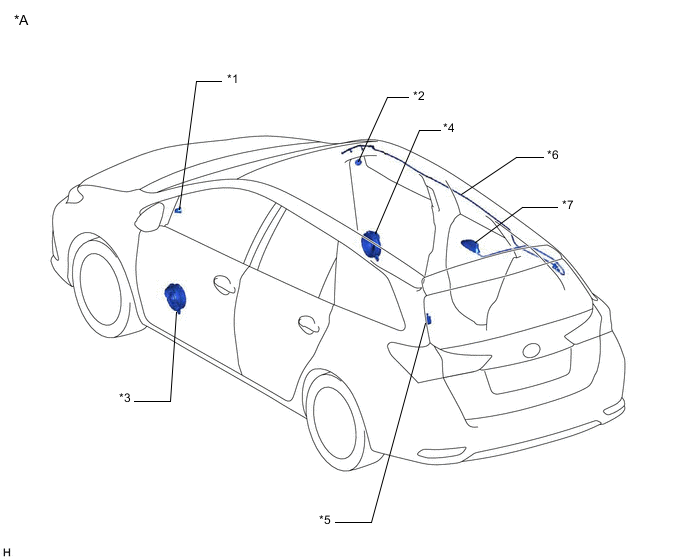

ILLUSTRATION
| *A | for Wagon | - | - |
| *1 | FRONT NO. 2 SPEAKER ASSEMBLY LH | *2 | FRONT NO. 2 SPEAKER ASSEMBLY RH |
| *3 | FRONT NO. 1 SPEAKER ASSEMBLY LH | *4 | FRONT NO. 1 SPEAKER ASSEMBLY RH |
| *5 | RADIO SETTING CONDENSER | *6 | NO. 3 ANTENNA CORD SUB-ASSEMBLY |
| *7 | NO. 1 AMPLIFIER ANTENNA ASSEMBLY - AM - FM |
- | - |
ILLUSTRATION
| *A | for Sedan | *B | for 6 Speakers |
| *1 | FRONT NO. 2 SPEAKER ASSEMBLY LH | *2 | FRONT NO. 2 SPEAKER ASSEMBLY RH |
| *3 | FRONT NO. 1 SPEAKER ASSEMBLY LH | *4 | FRONT NO. 1 SPEAKER ASSEMBLY RH |
| *5 | REAR SPEAKER ASSEMBLY LH | *6 | REAR SPEAKER ASSEMBLY RH |
ILLUSTRATION
| *A | for Sedan | - | - |
| *1 | RADIO SETTING CONDENSER | *2 | WINDOW GLASS ANTENNA WIRE |
| *3 | NO. 1 AMPLIFIER ANTENNA ASSEMBLY | - | - |
ILLUSTRATION
| *A | for LHD | - | - |
| *1 | SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY | *2 | STEERING PAD SWITCH ASSEMBLY |
| *3 | COMBINATION METER ASSEMBLY | *4 | RADIO RECEIVER ASSEMBLY |
| *5 | ANTENNA CORD SUB-ASSEMBLY | *6 | ENGINE STOP AND START ECU (w/ Stop and Start System) |
| *7 | TELEMATICS TRANSCEIVER (w/ Manual (SOS) Switch) |
- | - |
ILLUSTRATION
| *A | for RHD | - | - |
| *1 | SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY | *2 | STEERING PAD SWITCH ASSEMBLY |
| *3 | RADIO RECEIVER ASSEMBLY | *4 | ANTENNA CORD SUB-ASSEMBLY |
| *5 | COMBINATION METER ASSEMBLY | *6 | ENGINE STOP AND START ECU (w/ Stop and Start System) |
